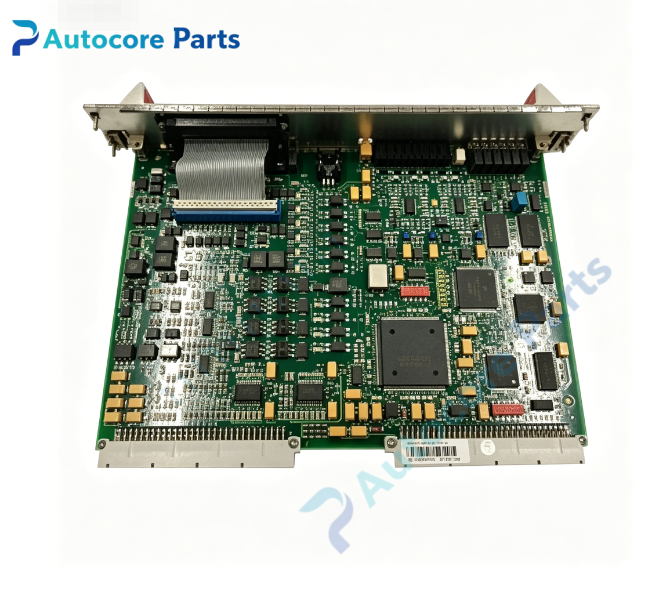

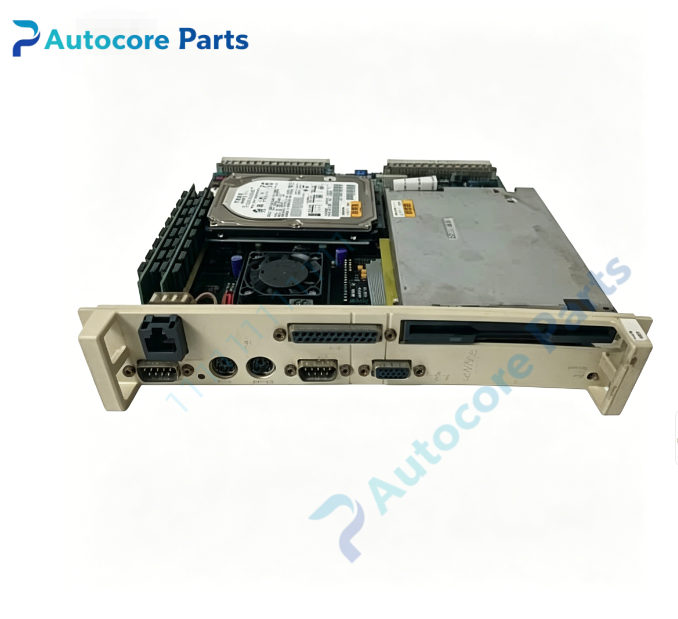

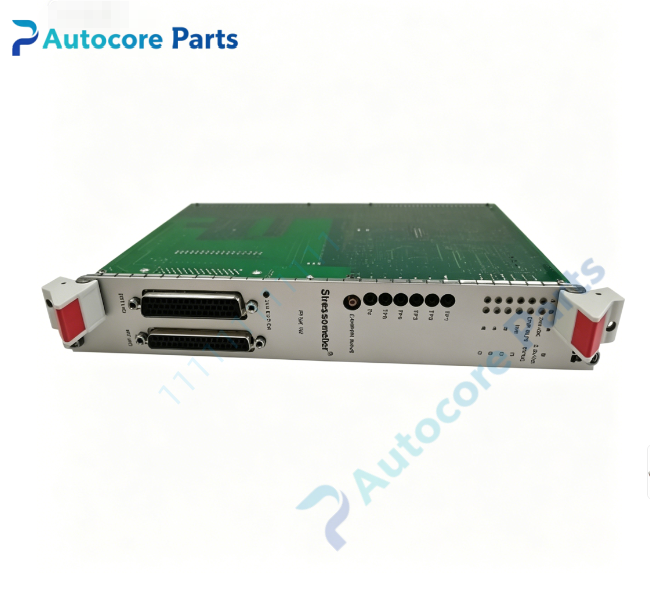

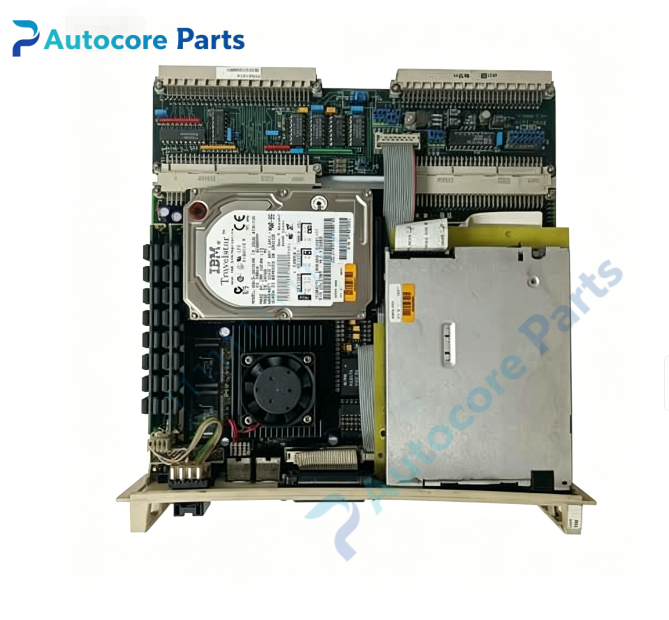

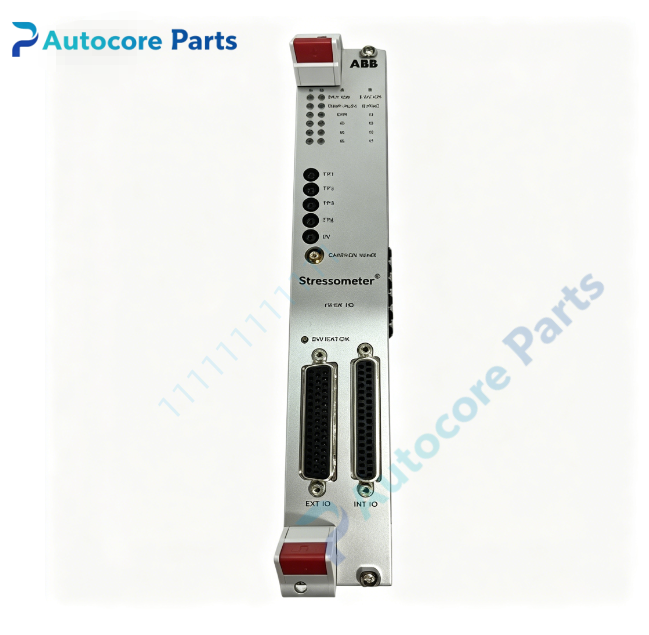

ABB 3BSE021180R1 PFSK164 Tension Processing Board

Technical Specifications

Model:3BSE021180R1(PFSK164)

Brand:ABB

Product Type:Tension measurement processing processor board

Processor:Intel Pentium III with MMX,256KB cache

Power Supply:24VDC

Analog Input:2‑4 channels for Pressductor tension load‑cell

Analog Output:4 channels,0‑10V /4‑20mA

Digital I/O:8DI /8DO

Communication Interface:Ethernet,USB,2×RS‑232 ports

Isolation:120VDC channel galvanic isolation

Excitation Output:Sensor excitation power supply

Feature:System‑on‑board architecture,front‑panel LED status indicator,rack plug‑in installation

System Compatibility:ABB Advant OCS,MasterPiece tension control system

Remark:Legacy EOL spare component;match rack hardware version before replacement

Module Form:Rack‑mount plug‑in PCB board

Weight:1.40 kg

Dimension:225 mm×145 mm×32 mm

Protection Grade:IP20

Certification:CE

Working Temperature:‑20℃ ~ +50℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Papermaking,film,textile,steel processing industry,complete high‑precision web tension signal acquisition,calculation and closed‑loop control,equipment overhaul and spare‑part replacement.

Product Details

3BSE021180R1,type PFSK164,is high‑end tension processing processor board for ABB Advant MasterPiece system. Integrated Pentium III processor,realizes complete signal conditioning,computing and control output for Pressductor series tension load cells.

Multi‑channel analog and digital I/O collects field signals and outputs control commands. Rich communication interfaces realize data interaction with upper host system. Rack plug‑in design convenient for on‑site replacement. Board failure will cause tension value drift,control disorder and web break risk. Widely used for paper‑making and film production line tension control system overhaul.

Note:This is legacy EOL spare component,widely used for process industry spare‑part replacement.
