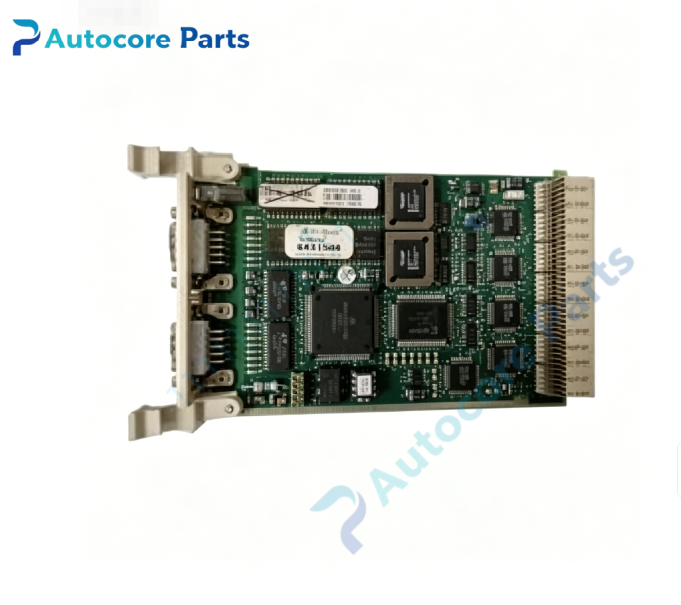

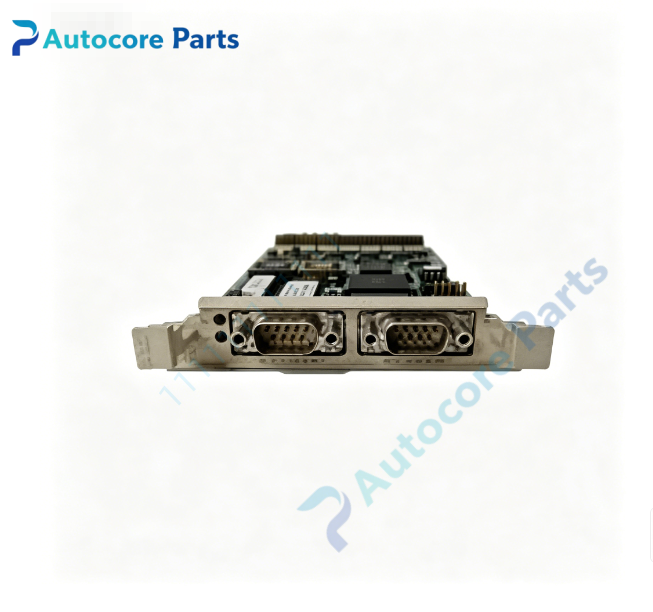

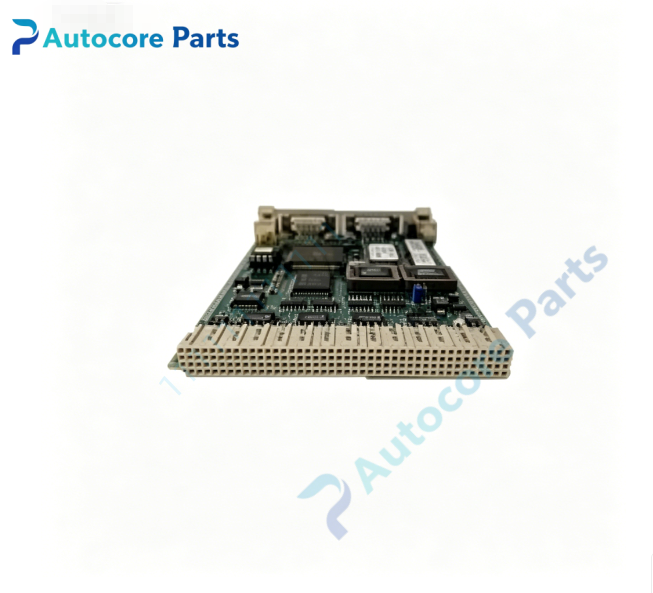

ABB 3BSE022162R1 CI535V30 SPA Bus Server Communication Module

Technical Specifications

Model:3BSE022162R1(CI535V30)

Brand:ABB

Product Type:SPA‑Bus server communication module

Power Supply:24VDC

Communication Bus:SPA‑Bus

Max Nodes:Support up to 50 SPA‑bus equipment nodes

Interface:Backplane rack bus connector,SPA bus terminal interface

Function:SPA‑bus protocol processing,node management,inter‑module high‑speed data forwarding,status diagnosis

Feature:Rack plug‑in installation,on‑board LED status indicator,protocol hardware processing

System Compatibility:ABB Advant Master / Advant OCS DCS control system

Remark:Legacy EOL spare component;confirm rack hardware version before replacement

Module Form:Rack‑mount plug‑in PCB board

Weight:0.28 kg

Dimension:230 mm×100 mm×25 mm

Protection Grade:IP20

Certification:CE

Working Temperature:‑10℃ ~ +60℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Petrochemical,power plant,papermaking industry,serve as SPA‑bus communication server for Advant Master DCS system,complete inter‑board data interaction and node management,system overhaul and spare‑part replacement.

Product Details

3BSE022162R1,type CI535V30,is dedicated SPA‑Bus server communication module for ABB Advant Master DCS system.

It acts as SPA‑bus main server,manages up to 50 field bus nodes,completes protocol parsing,data forwarding and node status monitoring between each rack board. It connects to rack backplane bus and SPA bus terminal. Module fault will cause SPA‑bus network breakdown,inter‑module communication failure,partial function loss of control system. Widely used for old‑generation Advant Master DCS site maintenance and spare‑part replacement.

Note:This is legacy EOL spare component,widely used for process industry spare‑part replacement.
