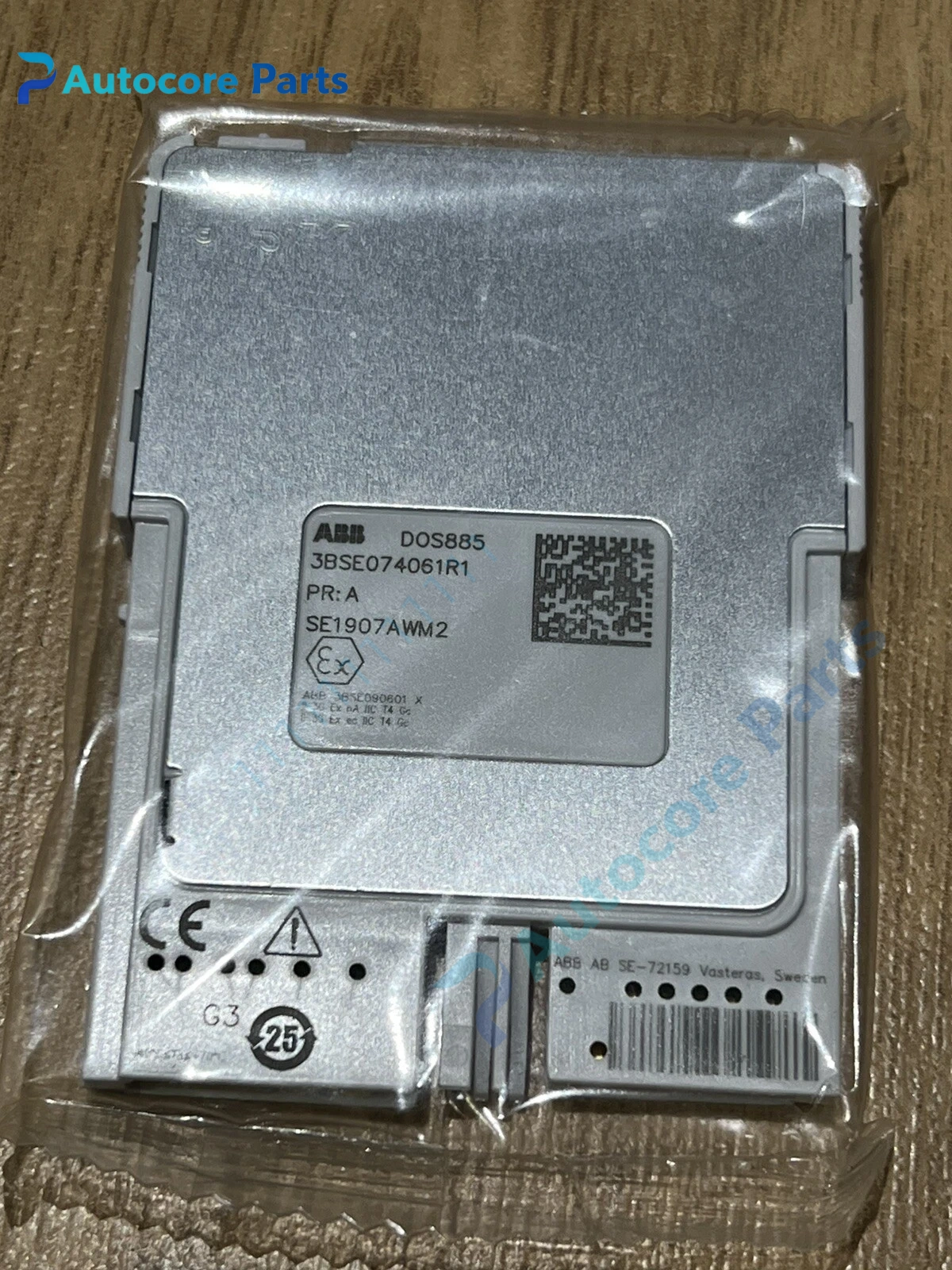

ABB DOS885 3BSE074061R1 Digital Output SCM Unit

Module Feature

3BSE074061R1 is ABB DOS885 high integrity signal conditioning module (SCM) within Select I/O family for System 800xA safety instrumented system.

Single channel 24VDC sourcing digital output, maximum 3A continuous output current, electronic short-circuit limiting. Built-in freewheeling diode for inductive loads such as solenoid valves, alarm horns and beacons. Galvanic isolation between field circuit and Modulebus backplane, supports hot swap, redundant channel configuration and mechanical field disconnect slider. It mounts on TUS810 termination unit, suitable for hazardous area installation. Widely stocked as critical safety spare for refinery, chemical plant and power plant SIS cabinet.

Working principle

The module receives safety on/off command from 800xA controller via Modulebus.

Internal power switch drives 24VDC power to 2-wire field safety actuators. Inductive suppression circuit absorbs back EMF to protect electronics. Continuous loop supervision monitors open circuit, short circuit and load fault, and feeds diagnostic status back to SIS controller. The field disconnect slider cuts off field power safely during maintenance without rack shutdown.

Onboard components

Output power switching stage, inductive freewheeling suppression diode, galvanic isolation barrier, Modulebus communication interface, 3A current limiting circuit, field disconnect switch, status LED bank and compact plug-in PCB housing.

LED indicators

Front LEDs indicate power, run status, field loop fault, Modulebus communication and module health status.

Hardware self‑diagnosis

Built-in supervision detects output short, open loop, overcurrent, communication loss, internal power fault and hardware anomaly. Configuration and fault diagnosis are completed by ABB Control Builder M / 800xA engineering workplace.

Programming softwareControl Builder M, used for safety logic setup, redundancy configuration, safe state parameter and fault log reading.

Electrical & Process Parameters

Model:3BSE074061R1 Brand:ABB Device type:DOS885 Select I/O Digital Output SCM Function:24VDC 3A safety digital output drive for SIS solenoids, horns and beacon devices

Mechanical & Structure

Mounting:Plug-in into TUS810 MTU termination base Protection class:IP20 Housing:Compact plug-in SCM module

Environmental

Operating temperature:-40℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, IEC61508 SIL3 Status:Original ABB 800xA SIS safety I/O spare

Installation

Isolate field loop and Modulebus power before replacement.

Insert module into correct coded slot of MTU base, activate field disconnect slider before field wiring work, download safety logic configuration, test on-off drive and loop diagnostic function after commissioning.

Interface

Modulebus backplane interface, field terminal via FTB field terminal block for 24VDC safety output loop.

Diagnostic

Loop fault alarm: Output short circuit, field wire open or load overload. No actuator action: Safety command not released, field power missing or coil burnout. Module offline: MTU power loss, Modulebus failure or firmware version mismatch.

Product Brief

3BSE074061R1 DOS885 module, ABB Select I/O SIL3 single-channel 24VDC 3A digital output spare for System 800xA SIS safety control cabinet replacement.
