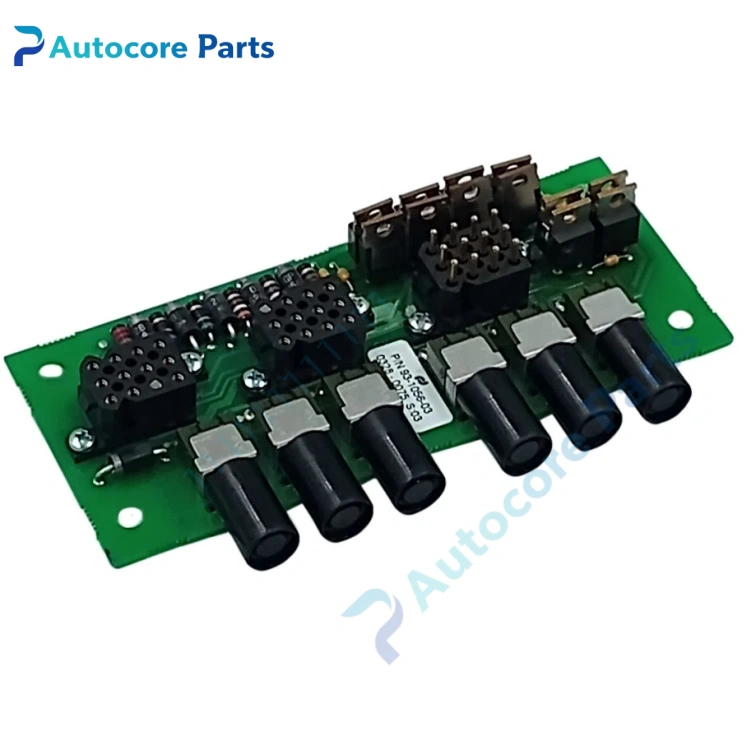

ABB DSQC563 Brake Release Board

Feature & Principle

It is a dedicated manual brake release circuit board for ABB industrial robots. When the robot is powered off or in fault state, this board outputs brake release signal to each axis motor brake coil. After the brake is released, technicians can manually turn each robot axis for position adjustment and troubleshooting. It has built-in interlock protection to prevent misoperation, and it is an essential safety maintenance accessory for robot overhaul.

Specifications

Model: 3HAC16035-1 (DSQC563) Brand: ABB Applicable cabinet: IRC5, S4C+ Compatible robot: IRB2400, IRB2600, IRB4400, IRB4600, IRB6600 series Power supply: 24VDC Weight: 0.14 kg Protection: IP20, cabinet internal installation Application: Automobile welding, handling robot cabinet maintenance Certification: CE

Components & Diagnostics

PCB circuit board, terminal connectors, interlock circuit, signal socket. Common faults: brake release failure, individual axis cannot be unlocked, poor contact, circuit burnout.

Product Brief

3HAC16035-1 manual brake release board, ABB robot cabinet spare widely used for industrial robot overhaul and replacement.
