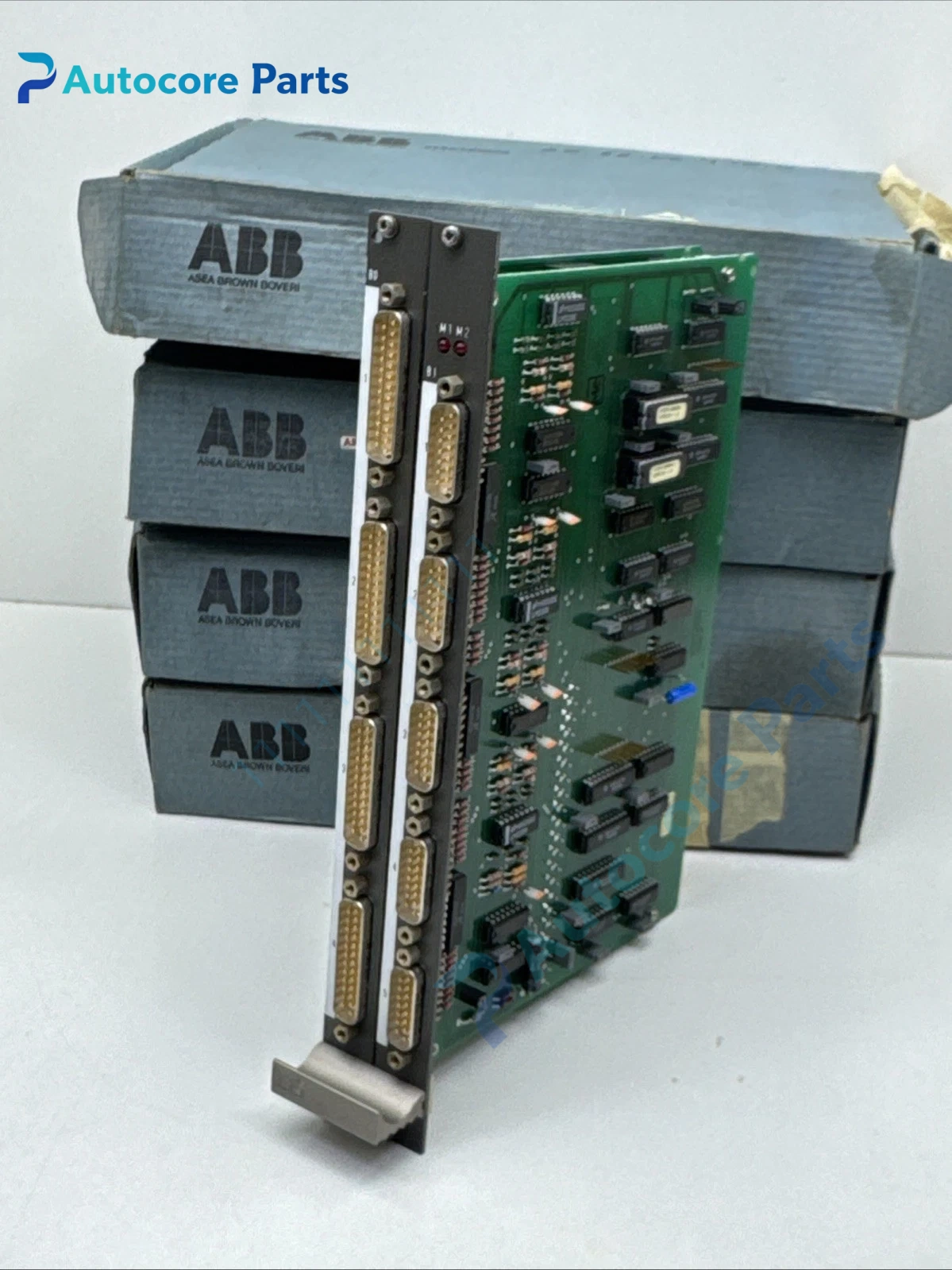

ABB HIEE300025R2 VDA330 A02 Excitation Control Board Unit

Module Feature

HIEE300025R2 is ABB UNITROL 5000 excitation system VDA330 A02 processing board.

It undertakes high-speed sampling of generator voltage, current and rotor excitation signals, executes automatic voltage regulation AVR algorithm and excitation protection logic. It communicates with other UNITROL modules via fiber optic link to realize closed-loop excitation control for synchronous generator. It supports redundant rack configuration to meet power plant generator high-reliability operation requirement. It has built-in hardware protection functions such as overexcitation, underexcitation and loss of excitation. It is a core spare for hydroelectric, thermal power and gas turbine generator excitation cabinet maintenance.

Working principle

The board collects generator stator voltage and current sampling signals.

Onboard DSP and FPGA calculate generator reactive power, power factor and terminal voltage deviation, output excitation adjusting command to power unit. It continuously monitors excitation loop status, triggers hardware trip when excitation fault occurs, and records time-stamped fault event logs for post-fault analysis. Fiber channel realizes high-speed synchronous data exchange between multi-redundant control boards.

Onboard components

DSP main control chip, FPGA logic chip, analog sampling conditioning circuit, fiber optic transceiver, hardware protection comparator, backplane bus interface, status LED array, metal shielding housing.

LED indicators

Front LEDs indicate module power, RUN heartbeat, fiber link, excitation active and fault alarm status.

Hardware self‑diagnosis

Built-in supervision detects sampling channel failure, fiber link break, clock error, power anomaly and internal hardware fault. Fault diagnosis and parameter commissioning are completed by ABB UNITROL engineering software.

Programming software

UNITROL engineering tool, used for AVR parameter tuning, protection threshold setting, firmware download and event log reading.

Electrical & Process Parameters

Model:HIEE300025R2 Brand:ABB Device type:UNITROL5000 excitation control processing board Function:Automatic voltage regulation, signal sampling and hardware protection for synchronous generator excitation system

Mechanical & Structure

Mounting:Plug-in excitation rack slot installation Protection class:IP20 Housing:Reinforced metal shielded industrial PCB assembly

Environmental

Operating temperature:-20℃ ~ +70℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE Status:Original ABB generator excitation spare

Installation

Power off excitation cabinet before replacement.

Insert the board into matched VDA rack slot, check fiber direction and attenuation, download matched excitation firmware, test AVR closed-loop response and excitation protection interlock.

Interface

Backplane signal connector, fiber optical communication port, analog sampling terminal, 24VDC auxiliary power terminal.

Diagnostic

Module fault alarm: Fiber cable damage, optical attenuation out of range or firmware mismatch. Voltage regulation unstable: Sampling signal drift, AVR parameter mis-tuning or PT/CT circuit anomaly. Protection false trip: Noise interference, threshold setting error or board channel damage.

Product Brief

ABB HIEE300025R2 control board, VDA330 A02 spare for UNITROL5000 generator excitation cabinet replacement.
