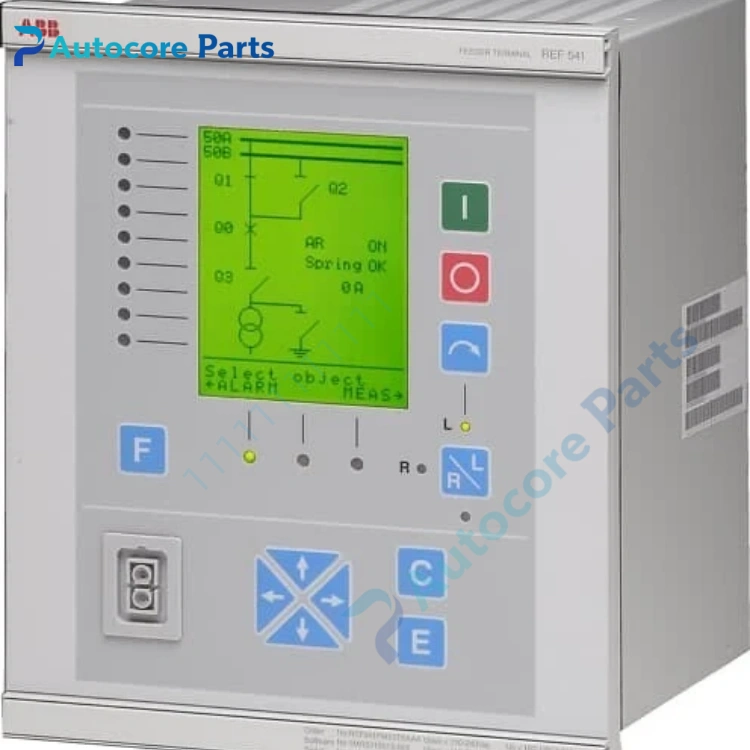

ABB REF541KB115AAAA Feeder Terminal

Feature & Principle

It is a medium voltage feeder protection and control terminal from ABB REF541 series. It collects current and voltage signals from CT/PT, executes protection algorithms such as overcurrent, earth fault, overvoltage and undervoltage. It can realize breaker control, interlock logic and fault recording with internal programmable PLC function. It supports SPA, Modbus and IEC61850 (with adapter) for data interaction with SCADA system. It is applicable to isolated neutral, resonant earthed distribution networks, also for motor and capacitor bank protection.

Specifications

Model: REF541KB115AAAA Brand: ABB Series: REF541 Application: Medium voltage feeder, motor, capacitor bank DI: 15 channels DO: 12 relay output channels Communication: SPA bus, Modbus, IEC61850 (SPA-ZC400 adapter) Mounting: Panel mounting inside switchgear Lifecycle: Discontinued legacy spare Working temperature: -25℃ ~ +70℃ Certification: CE

Components & Diagnostics

Main CPU board, measurement acquisition board, relay output module, LCD operation panel, power supply unit. Common faults: measurement deviation, relay output failure, communication offline, display screen failure.

Product Brief

REF541KB115AAAA feeder protection terminal, ABB medium voltage substation protection spare widely used for old switchgear overhaul and replacement.
