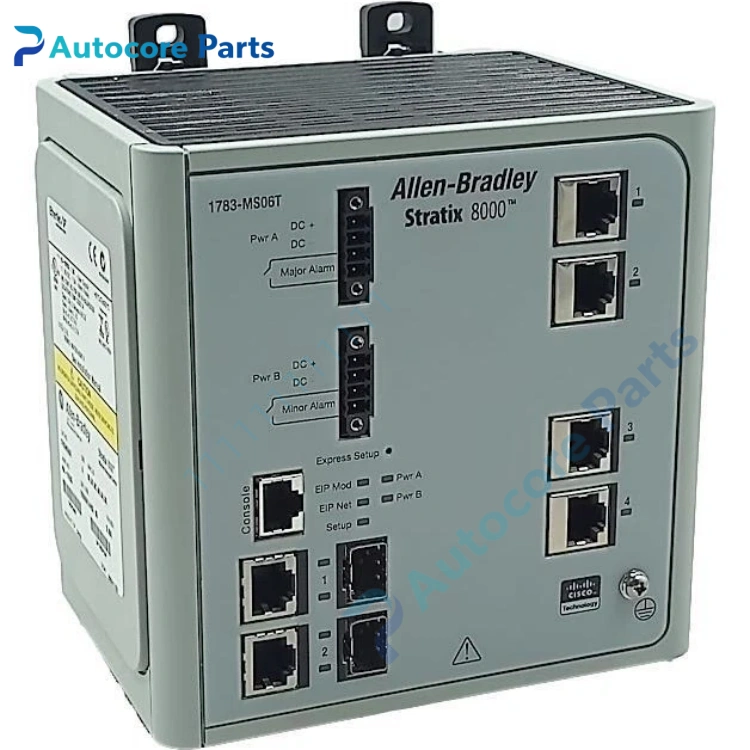

Allen Bradley 1783-MS06T Industrial Managed Switch

Feature & Principle

It is Rockwell Stratix 8000 series modular managed industrial Ethernet switch. It runs Cisco IOS operating system, supports EtherNet/IP, VLAN, QoS, RSTP ring network redundancy function. It can be fitted with copper or fiber expansion modules to expand network ports, adopts dual power supply design to improve network reliability, compatible with Studio5000 for configuration diagnosis, widely used for PLC, HMI and servo equipment industrial Ethernet interconnection.

Specifications

Model: 1783-MS06T Brand: Allen Bradley (Rockwell) Series: Stratix 8000 Ports: 6 × 10/100Mbps RJ45 copper port Expansion: Support 2 expansion slots (MX08T / MX08F etc.) Power supply: 18~60VDC, dual redundant power input Configuration system: Cisco IOS Protocol: EtherNet/IP, Modbus TCP Mounting: DIN rail installation Lifecycle: Discontinued legacy spare Application: Automation production line, robot workshop, DCS control room industrial network Certification: CE, UL

Components & Diagnostics

Main switch board, status indicator panel, redundant power terminal, expansion backplane, CF configuration card slot. Common faults: port no link, network interruption, configuration lost, power module failure, ring network abnormal.

Product Brief

1783-MS06T managed Ethernet switch, Rockwell Stratix8000 industrial network spare widely used for old automation control cabinet network overhaul and replacement.
