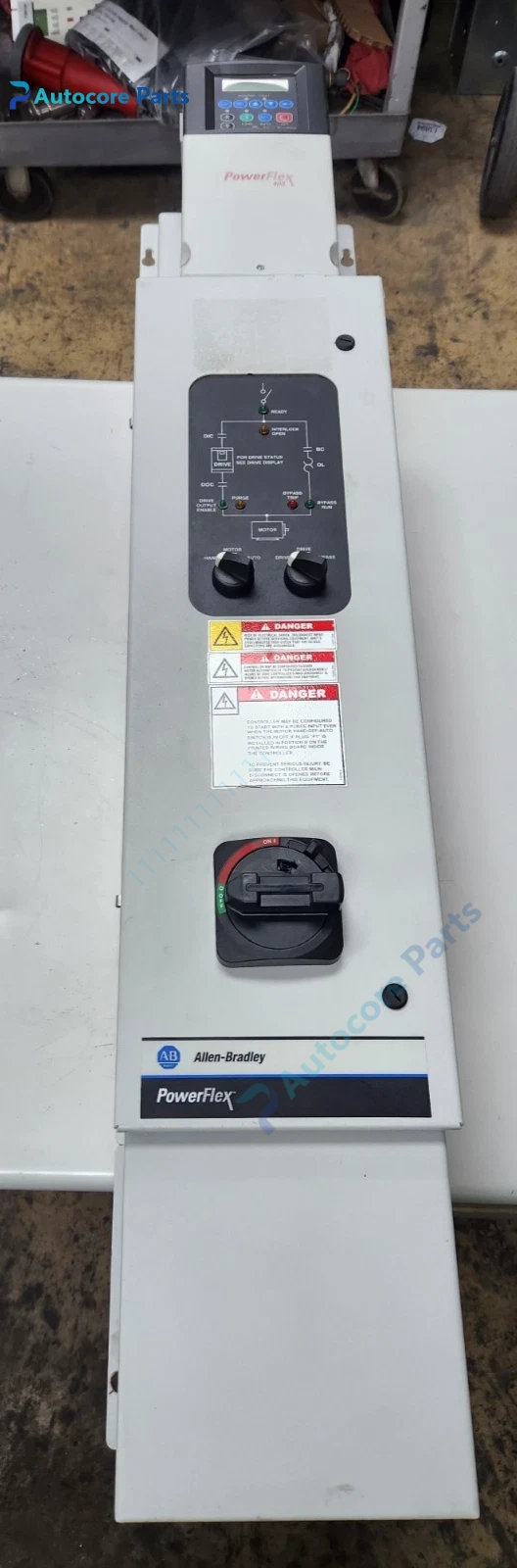

Allen-Bradley 23C-D017A103NNBANN-LR Packaged PowerFlex 400 Drive Unit

Module Feature

23C-D017A103NNBANN-LR belongs to 23C series factory packaged PowerFlex400 fan & pump drive manufactured by Allen-Bradley (Rockwell Automation). The suffix -LR indicates integrated line reactor for harmonic suppression and input surge protection. Complete assembly includes PowerFlex400 VFD,fused disconnect switch,full feature bypass contactor bank,control circuit and fixed local keypad. It supports V/Hz speed regulation and built-in PID closed-loop control for pressure/flow. RS485 Modbus RTU communication onboard. Widely used in water supply pumps,HVAC fans,chiller systems and variable torque process applications.

Working principle

Three-phase AC input passes through line reactor and fused disconnect,then feeds into PowerFlex400 inverter unit. The inverter outputs variable voltage/frequency AC to regulate motor speed. When drive fault or maintenance required,bypass contactor closes to run motor directly across mains. PID function adjusts motor speed automatically to maintain set pressure or flow. Line reactor suppresses current harmonics and protects drive from voltage spikes.

Onboard components

Input line reactor,fused disconnect switch,bypass contactor assembly,PowerFlex400 inverter core,main control PCB,LED fixed keypad,power terminal block,control I/O terminal block,temperature monitoring circuit.

LED indicators

Power LED,run status LED,fault alarm LED,bypass active indicator.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,phase loss,motor overload,bypass contactor feedback fault,line reactor overheat detection.

Programming software

DriveTools SP / DriveExecutive software,supports parameter configuration,real-time monitoring and fault log reading.

Electrical & Process Parameters

Model:23C-D017A103NNBANN-LR Brand:Allen-Bradley Device type:23C PowerFlex400 Packaged Fan & Pump AC Drive Input voltage:380 ~ 480VAC three phase Input frequency:50/60Hz Control mode:V/F,built-in PID for flow/pressure regulation Communication:RS485 Modbus RTU Built-in accessory:Fused disconnect,3-contactor bypass,line reactor (LR suffix) Cooling:Forced air cooling Protection:Over temperature,over current,over voltage,under voltage,phase loss,motor overload,short circuit protection

Mechanical & Structure

Mounting:Floor / panel mount packaged cabinet Protection class:NEMA Type 1 / IP20 Housing:Metal enclosed cabinet

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Allen-Bradley factory assembled packaged VFD with bypass and line reactor for fan and pump variable torque control

Installation

Follow ESD safety procedure before handling.Mount cabinet vertically and reserve ventilation clearance.Connect three-phase mains to cabinet input terminals and motor cable to output terminals.Verify bypass interlock wiring before power-up.Complete motor setup and PID tuning for pump/fan commissioning.

Interface

AC main input terminal,motor output terminal,digital/analog I/O terminal,keypad port,fault relay output.

Diagnostic

Over current:motor short circuit,cable damage or mechanical jam. Overheat:blocked ventilation or continuous overload. Bypass fault:contactor auxiliary feedback mismatch or wiring error. PID unstable:incorrect proportional/integral parameters. Line reactor overheat:excessive harmonic current.

Product Brief

Allen-Bradley 23C-D017A103NNBANN-LR factory packaged PowerFlex400 fan & pump variable frequency drive,380-480V three phase input,equipped with fused disconnect,full bypass contactor and input line reactor,supports PID closed-loop control for HVAC and water pump industrial automation.
