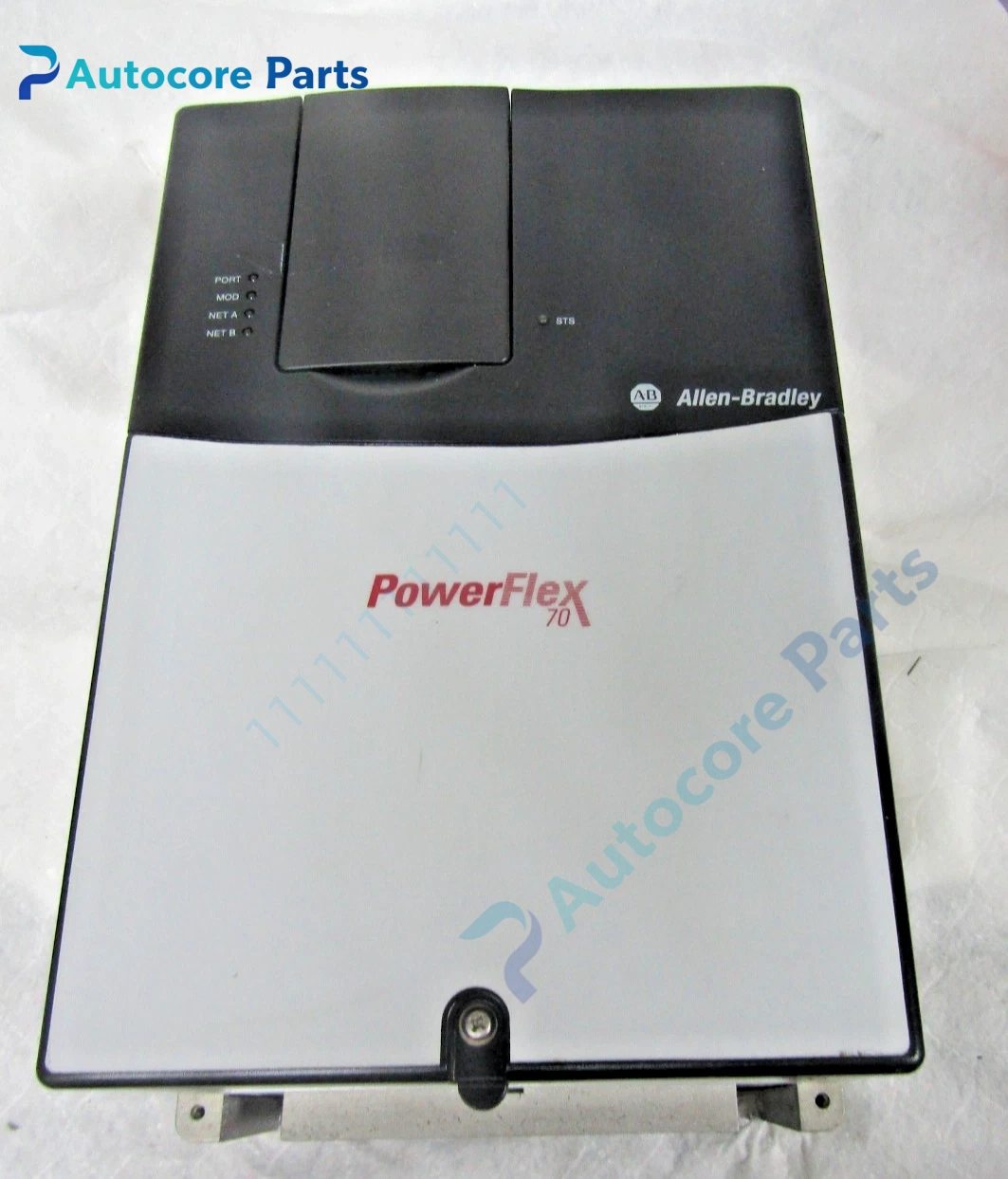

Allen-Bradley 20AE027A0AYNNNC0 PowerFlex 70 AC Drive Unit

Module Feature

20AE027A0AYNNNC0 belongs to PowerFlex70 high-performance AC drive manufactured by Allen-Bradley (Rockwell Automation). Rated output current 27A,20HP normal duty /15HP heavy duty,200~240V three phase input. It supports V/Hz, sensorless vector and FORCE vector control,optional encoder feedback for high precision speed and torque regulation. Integrated brake IGBT,standard IP20 panel mount housing,blank front plate without HIM keypad. Equipped with EMC filter and expansion slot for DPI communication adapters. Widely used in extruders,conveyors,packaging machinery and general factory automation equipment.

Working principle

Three-phase 200-240VAC mains power is rectified to DC bus. IGBT power stage outputs adjustable voltage and frequency PWM waveform to control induction motor speed and torque. FORCE vector algorithm provides high starting torque and stable speed regulation across wide operating range. Built-in braking IGBT absorbs regenerative energy during motor deceleration,external brake resistor is required. The drive continuously monitors bus voltage,output current and internal temperature for protection.

Onboard components

Input rectifier bridge,IGBT power module,main control PCB,blank front panel,dynamic brake IGBT,temperature controlled cooling fan,power terminal block,control I/O terminal block,DPI communication adapter expansion slot.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,phase loss,motor overload,communication adapter fault detection.

Programming software

DriveExplorer software,supports motor auto-tune,real-time speed/torque monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:20AE027A0AYNNNC0 Brand:Allen-Bradley Device type:PowerFlex70 Series AC Variable Frequency Drive Input voltage:200 ~ 240VAC three phase Input frequency:50/60Hz Output current:27A Normal duty rating:20HP Heavy duty rating:15HP Control mode:V/F,sensorless vector,FORCE vector control Brake:Built-in brake IGBT (external brake resistor required) Communication:Expandable via optional DPI adapter card Cooling:Forced air cooling Protection:Over temperature,over current,over voltage,under voltage,short circuit,earth fault,phase loss,motor overload protection

Mechanical & Structure

Mounting:Panel mounting inside control cabinet Protection class:IP20 / NEMA Type1 Housing:Metal frame housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Allen-Bradley PowerFlex70 high performance inverter for 200-240V industrial motor control applications

Installation

Follow ESD safety procedure before handling.Mount vertically and reserve sufficient ventilation gap.Separate power cables and signal cables to reduce EMI interference.Connect three-phase mains to L1/L2/L3 terminals and motor cable to U/V/W terminals.Complete motor auto-tune and parameter commissioning before operation.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,DPI option module slot,keypad port.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or continuous overload. Under voltage:input mains fluctuation or phase missing. Unstable motor speed:incorrect motor parameters or poor shielding of signal wires. Brake circuit fault:brake IGBT failure or resistor wiring error.

Product Brief

Allen-Bradley 20AE027A0AYNNNC0 PowerFlex70 AC variable frequency drive,200-240V three phase input,27A output,20HP ND /15HP HD,supports FORCE vector control,with built-in brake IGBT and DPI communication expansion slot for industrial automation applications.
