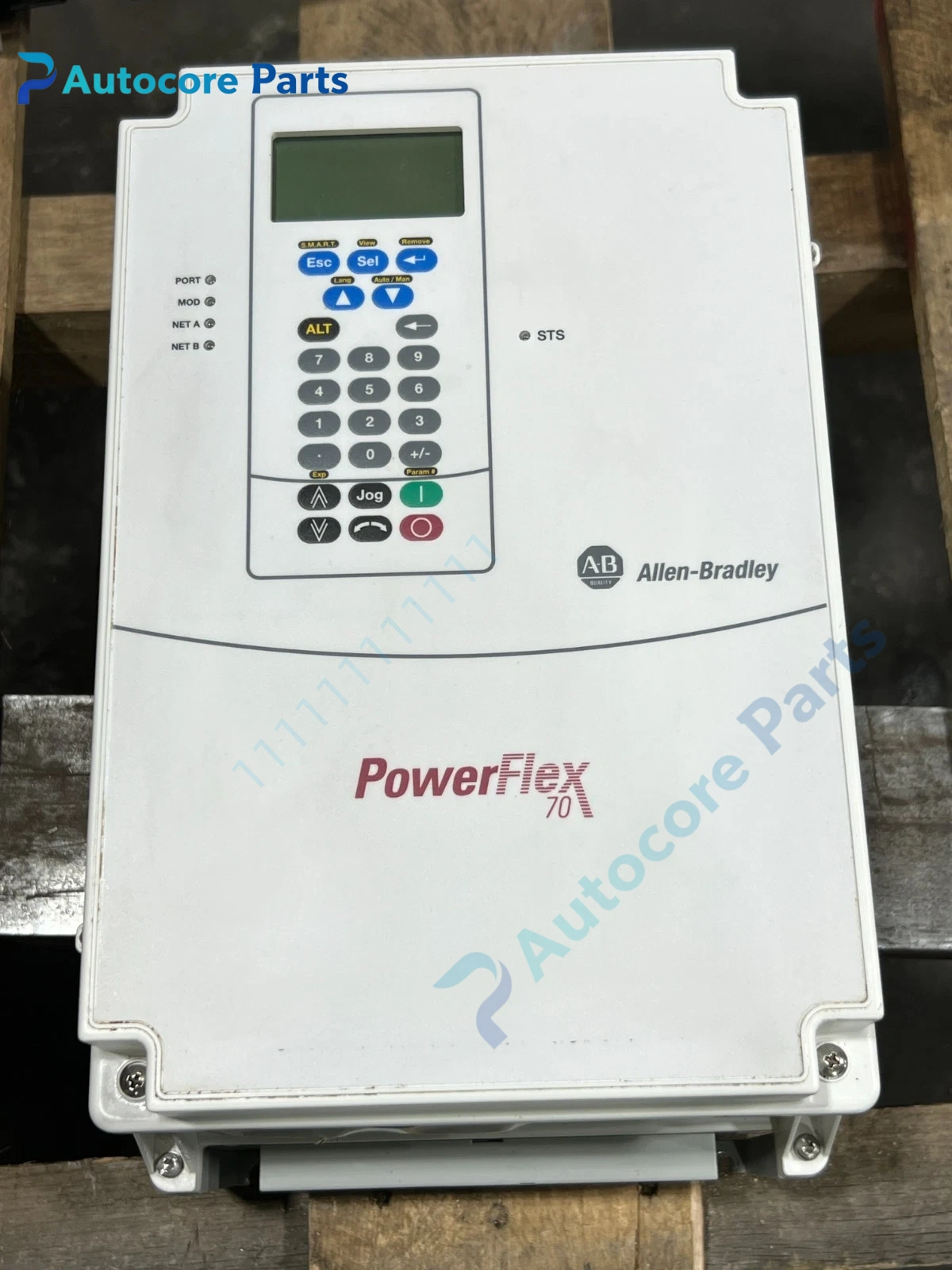

Allen-Bradley 20AD040C3AYNANC0 PowerFlex 70 AC Drive Unit

Module Feature

20AD040C3AYNANC0 belongs to PowerFlex70 high-performance AC drive manufactured by Allen-Bradley (Rockwell Automation). Rated output current 40A,30HP normal duty /25HP heavy duty,380-480V three phase input. It supports V/Hz, sensorless vector and FORCE vector control,available with encoder feedback option for high precision speed/torque regulation. Integrated brake IGBT,conformal coated circuit board,LCD HIM full keypad. Equipped with EMC filter for CE second environment compliance,expansion slot for communication adapters. Widely used in extruders,conveyors,packaging machinery and heavy process automation equipment.

Working principle

Three-phase AC mains power is rectified to DC bus. IGBT power stage outputs adjustable voltage and frequency PWM waveform to control induction motor speed and torque. FORCE vector algorithm delivers high starting torque and accurate speed regulation. Built-in braking IGBT consumes regenerative energy from motor deceleration. The drive continuously monitors current,bus voltage and internal temperature for protection.

Onboard components

Input rectifier bridge,IGBT power module,main control PCB with conformal coating,LCD HIM keypad panel,brake IGBT,temperature controlled cooling fan,power terminal block,control I/O terminal block,communication adapter expansion slot.

LED indicators

Power LED,run status LED,fault alarm LED.

Hardware self-diagnosis

Overvoltage,undervoltage,overcurrent,overtemperature,output short circuit,earth fault,phase loss,motor overload,encoder feedback fault detection.

Programming software

DriveExplorer software,supports motor auto-tune,real-time speed/torque monitoring,fault log reading and parameter backup & restore.

Electrical & Process Parameters

Model:20AD040C3AYNANC0 Brand:Allen-Bradley Device type:PowerFlex70 Series AC Variable Frequency Drive Input voltage:380 ~ 480VAC three phase Input frequency:50/60Hz Output current:40A Normal duty rating:30HP Heavy duty rating:25HP Control mode:V/F,sensorless vector,FORCE vector control Brake:Built-in brake IGBT (external brake resistor required) Communication:Expandable via optional communication adapter card Cooling:Forced air cooling Protection:Over temperature,over current,over voltage,under voltage,short circuit,earth fault,phase loss,motor overload protection

Mechanical & Structure

Mounting:Wall / machine mount Protection class:IP66 / NEMA 4X / 12 indoor Housing:Metal sealed housing

Environmental

Operating temperature:-10℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL compliant Status: Allen-Bradley PowerFlex70 high performance drive with conformal coating for heavy-duty industrial motor control

Installation

Follow ESD safety procedure before handling.Mount vertically and reserve sufficient ventilation gap.Separate power cables and signal cables to reduce EMI interference.Connect three-phase mains to L1/L2/L3 terminals and motor cable to U/V/W terminals.Complete motor auto-tune and parameter commissioning before operation.

Interface

Main power terminal,motor output terminal,digital/analog I/O terminal,communication adapter slot,LCD HIM port.

Diagnostic

Over current:motor winding short circuit,cable damage or mechanical jam. Overheat:blocked heat sink or continuous overload. Under voltage:input mains fluctuation or phase missing. Unstable motor speed:incorrect motor parameters or poor shielding of signal wires. Brake circuit fault:brake IGBT failure or resistor wiring error.

Product Brief

Allen-Bradley 20AD040C3AYNANC0 PowerFlex70 AC variable frequency drive,380-480V three phase input,40A output,30HP ND /25HP HD,FORCE vector control,conformal coated PCB with LCD keypad and built-in brake IGBT for harsh industrial automation applications.
