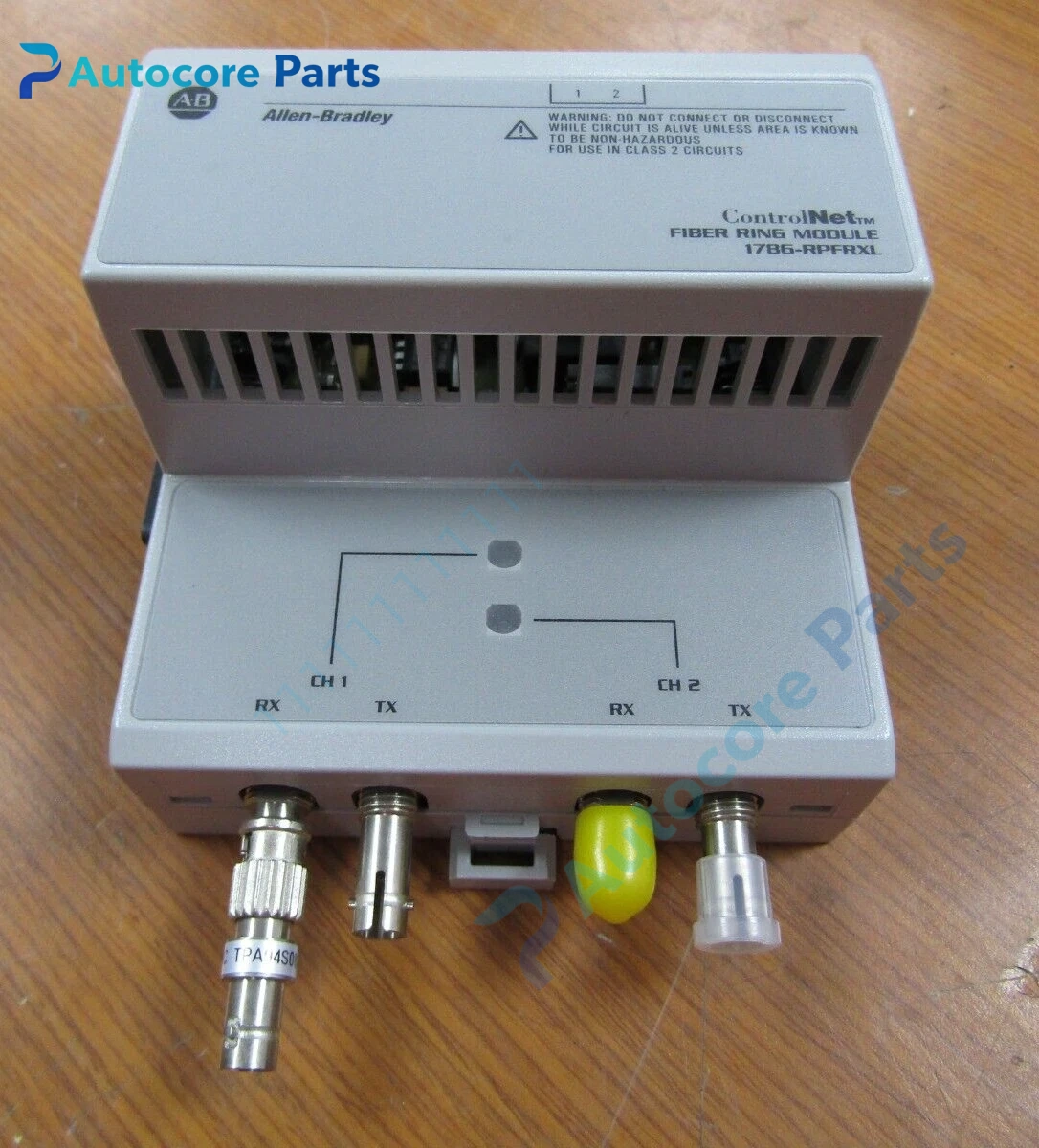

Allen-Bradley 1786-RPFRXL/B ControlNet Fiber Repeater Unit

Module Feature

1786-RPFRXL/B belongs to 1786 ControlNet series extra-long-distance fiber ring repeater manufactured by Allen-Bradley (Rockwell Automation). It supports ControlNet 5Mbps communication,compatible with single-mode and multi-mode optical fiber. Max transmission distance up to 15km for single-mode fiber and 3km for multi-mode fiber. Adopts ST fiber interface,supports redundant ring network topology. Equipped with optical channel diagnostic LEDs and fault relay alarm output. Widely used in large factory production lines,automotive workshops and heavy process automation for long-distance ControlNet fiber network extension.

Working principle

The module converts ControlNet coaxial electrical signals into optical signals for long-distance transmission. It regenerates and reshapes network signals,realizes bidirectional data transmission between two fiber channels. When one fiber path breaks,the redundant ring automatically switches to maintain network communication continuously. It monitors optical signal strength and internal power status in real time.

Onboard components

Optical transmit/receive module,signal regeneration processing PCB,2-channel ST fiber port,power regulation circuit,LED status indicator,fault relay output terminal block,power terminal block.

LED indicators

Power LED,Channel 1 status LED,Channel 2 status LED,fault alarm LED.

Hardware self-diagnosis

Power loss detection,optical signal loss,fiber channel break,internal communication error,relay circuit fault detection.

Programming software

RSNetWorx for ControlNet software,supports network configuration,network status monitoring and fault diagnosis.

Electrical & Process Parameters

Model:1786-RPFRXL/B Brand:Allen-Bradley Device type:ControlNet Extra Long Fiber Ring Repeater Communication speed:5 Mbps Power supply:24VDC Fiber connector:ST Fiber type:Single-mode / Multi-mode Max distance:15km single-mode,3km multi-mode Topology:Redundant ring topology Cooling:Natural convection cooling Protection:Over voltage,under voltage,ESD protection,signal loss alarm

Mechanical & Structure

Mounting:Panel mounting inside control cabinet Protection class:IP20 Housing:Metal reinforced plastic housing

Environmental

Operating temperature:-10℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non-condensing Certification:CE,UL,ATEX compliant Status: Allen-Bradley ControlNet extra long fiber repeater for redundant long-distance industrial ControlNet ring network

Installation

Follow ESD safety procedure before handling.Mount vertically and reserve sufficient ventilation gap.Connect 24VDC power to power terminals.Plug fiber cables into ST ports for ring topology wiring.Verify optical link status via LED indicators before network commissioning.

Interface

2 × ST fiber optical port,24VDC power terminal,fault relay output terminal.

Diagnostic

Fiber signal loss:fiber cable damage,poor connector cleaning or wrong fiber type. Power fault:24VDC supply missing or wiring loose. Ring break alarm:one fiber channel interrupted,network switch to backup path.

Product Brief

Allen-Bradley 1786-RPFRXL/B ControlNet extra long fiber ring repeater module,5Mbps ControlNet communication,24VDC power supply,supports single/multi-mode fiber with max 15km single-mode transmission,redundant ring design for long-distance industrial ControlNet network extension.
