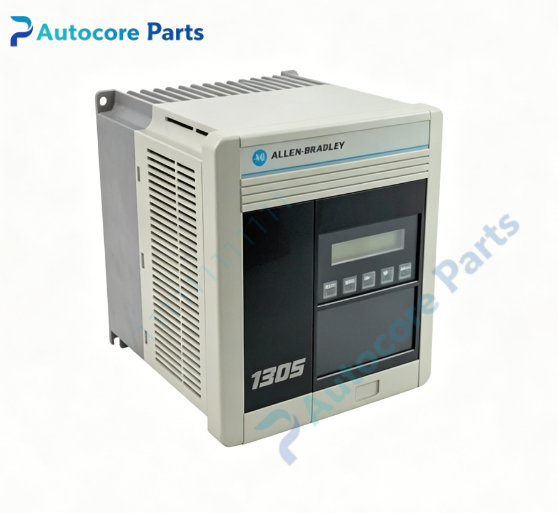

Allen‑Bradley 1305‑BA02‑HAP AC Drive

Technical Specifications

Model:1305‑BA02‑HAP

Brand:Rockwell Allen‑Bradley

Product Type:AC variable frequency drive,1305 series,factory‑installed HAP full‑function LCD programmer HIM

Rated power:0.75HP(0.55kW)

Input voltage:3×380‑460V AC 50/60Hz

Rated continuous output current:1.6A

Output frequency range:0‑400Hz

Control mode:Open‑loop V/F control

Control interface:0‑10V /4‑20mA analog input,digital start‑stop,jog,preset‑speed terminals,DSI communication port

Human Interface:HAP full‑function LCD programmer HIM,support full‑parameter access,parameter upload and download,fault history query

Enclosure:NEMA1(IP30)

Weight:1.70 kg

Dimension:152mm×180mm×80mm

Operating Temperature:0℃ ~ +50℃

Storage Temperature:-40℃ ~ +70℃

Humidity:5%‑95% non‑condensing

Feature:Multi‑segment accel/decel,7 preset speeds,DC braking,built‑in electronic motor overload protection,fault code and fault history queue display;HAP denotes factory‑mounted full‑feature LCD programmer HIM

System Compatibility:General‑purpose three‑phase asynchronous motor,conveyors,mixers,small fans and pumps

Remark:Legacy EOL spare component;HAP full‑function LCD programmer HIM is factory equipped;only support three‑phase input;official full catalog number is 1305‑BA02A‑HAP;confirm supply voltage,motor power before replacement.

Product Details

1305‑BA02‑HAP belongs to Rockwell Allen‑Bradley 1305 compact AC drive series. HAP indicates factory‑mounted full‑function LCD programmer HIM,support full‑parameter editing,parameter upload‑download and fault history query for local commissioning and maintenance.

It adopts open‑loop V/F control,support multi‑ramp acceleration‑deceleration,7 preset speeds and DC braking function. Built‑in electronic motor overload protection,analog and digital terminal control. Widely used for small‑power conveyor,mixer,fan and pump applications. Drive failure will cause motor no‑run,alarm and equipment stop,mainly used for old‑site equipment overhaul and spare‑part replacement.
