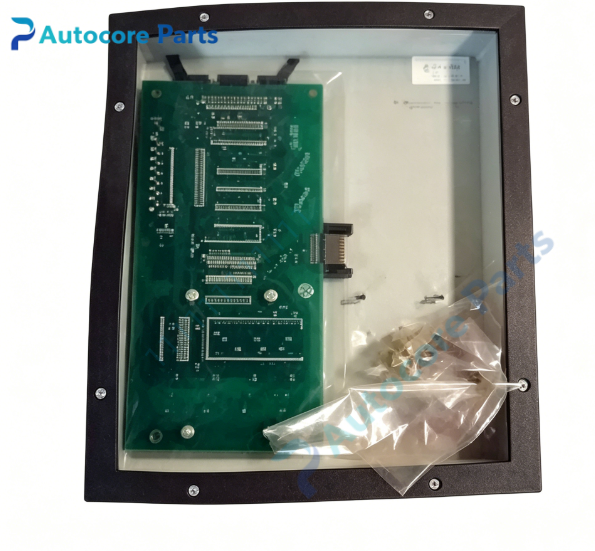

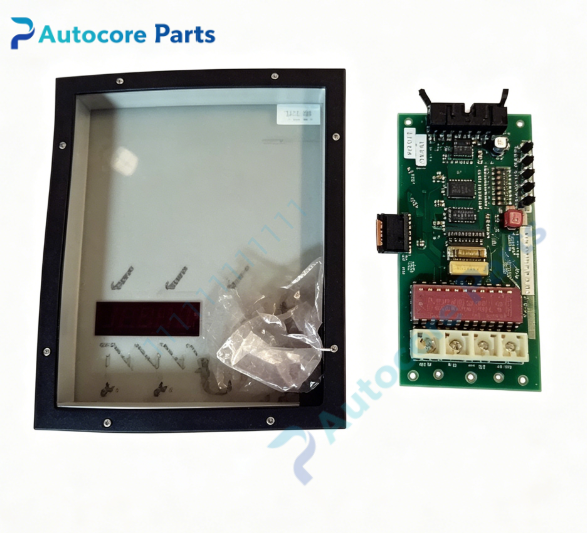

Allen‑Bradley 1336‑120663 Program & Display PCB Board

Technical Specifications

Model:1336‑120663

Brand:Rockwell Allen‑Bradley

Product Type:Program & Display PCB Board(HIM)

Applicable Series:1336 series adjustable frequency ac drive

Compatible Power Range:3‑200HP

Interface:Ribbon cable header J1,J2

On‑board Component:Display screen,operation keypad

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Product Details

1336‑120663 is program and display human interface PCB board for Rockwell Allen‑Bradley 1336 series ac adjustable frequency drive. It integrates display screen and physical operation keypad,realizes drive parameter configuration,operating status reading and fault code checking functions. Equipped with original ribbon cable connectors,matches original mechanical installation dimension,supports direct plug‑in replacement without additional modification. It solves abnormal display,keypad failure and human‑machine interaction faults of old frequency converter,restores local debugging capability of drive unit. ESD protection operation must be followed during installation. Widely used for maintenance of legacy fan,pump and conveyor automation equipment.

Remark:Legacy EOL spare component;original production discontinued;please confirm drive model compatibility before purchasing replacement.
