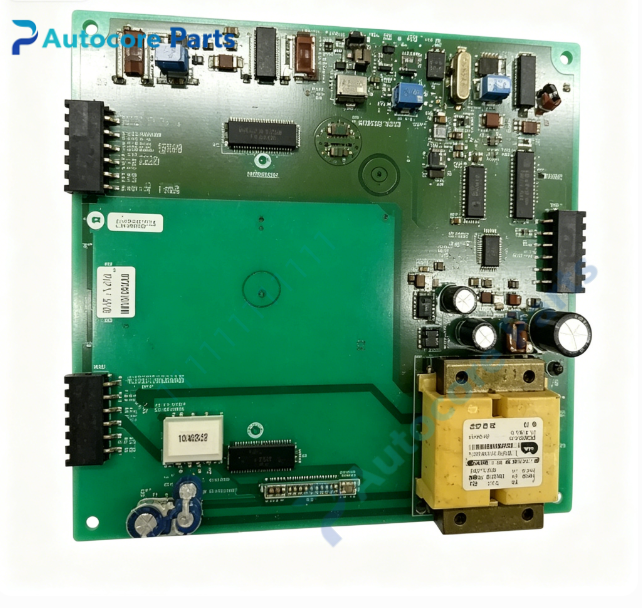

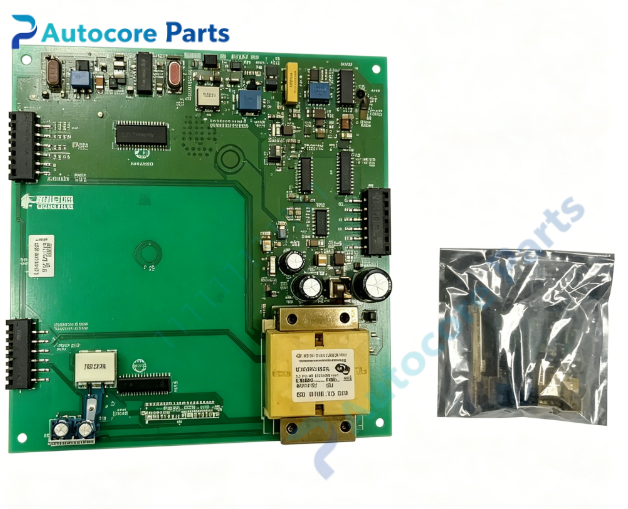

Allen‑Bradley 1336‑120760 Isolated Signal Conditioner Board

Technical Specifications

Model:1336‑120760

Alias Part Number:1336‑MOD‑N1

Brand:Rockwell Allen‑Bradley

Product Type:Isolated Signal Conditioner PCB Board

Applicable Series:1336 PLUS,1336 PLUS II series adjustable frequency ac drive

Hardware Revision:Rev 10

Function:Signal isolation,signal conditioning and conversion

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Product Details

1336‑120760 (alias 1336‑MOD‑N1) is isolated signal conditioner PCB board for Rockwell Allen‑Bradley 1336 series ac adjustable frequency drive. It completes analog signal isolation,conditioning and conversion work between external field device and drive control unit,reduces signal interference caused by ground loop and improves anti‑interference performance of whole control system. Adopts original circuit layout and standard interface definition,matches original installation dimension,supports direct plug‑in replacement without extra modification. It can effectively solve signal distortion,signal drift and abnormal analog input faults of legacy 1336 drive units. ESD protection operation must be implemented during installation. Widely applied for on‑site maintenance of fan,pump and conveyor legacy automation equipment.

Remark:Legacy EOL spare component;original production discontinued;please confirm drive model compatibility before purchasing replacement.
