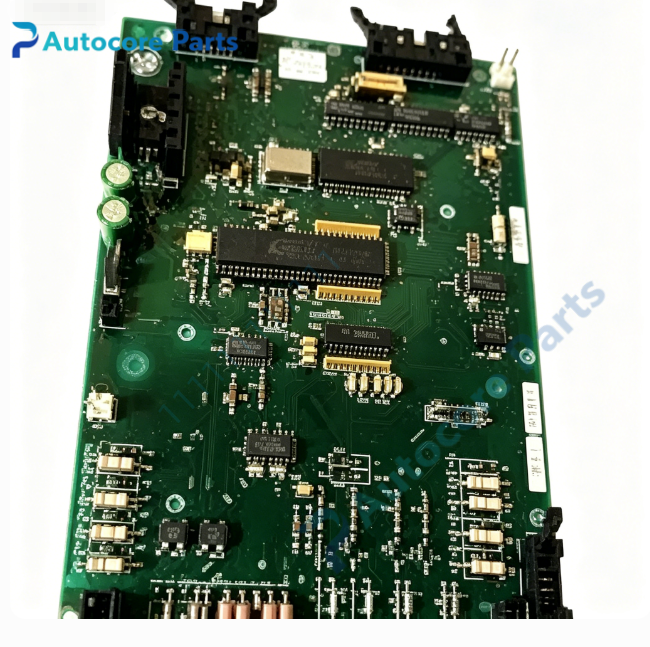

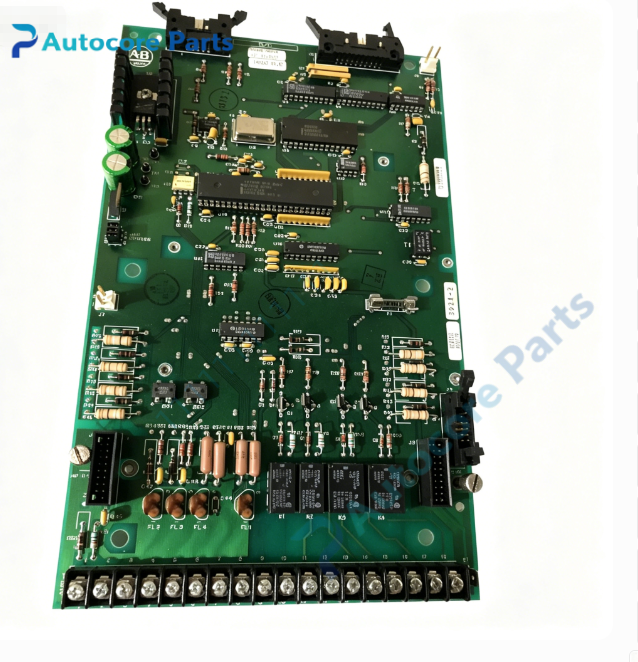

Allen‑Bradley 1336‑120659 Main PCB Circuit Board

Technical Specifications

Model:1336‑120659

Brand:Rockwell Allen‑Bradley

Product Type:Main PCB Circuit Board

Applicable Series:1336 series adjustable frequency ac drive

Series Revision:Series A

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Product Details

1336‑120659 is the main control PCB circuit board for Rockwell Allen‑Bradley 1336 series adjustable frequency ac drive. It undertakes core drive logic processing, signal acquisition, parameter operation and fault diagnosis functions for the frequency converter. Adopts original circuit layout and complete terminal interfaces, matches original installation dimensions, supports direct replacement without extra modification. Effectively repairs drive faults caused by main board aging and circuit damage, restores complete speed‑regulating performance of the ac drive unit. Suitable for on‑site maintenance of legacy fan, pump and conveyor automation equipment. ESD protection operation is required during installation.

Remark:Legacy EOL spare component;original production discontinued;please confirm drive model compatibility before purchasing replacement.
