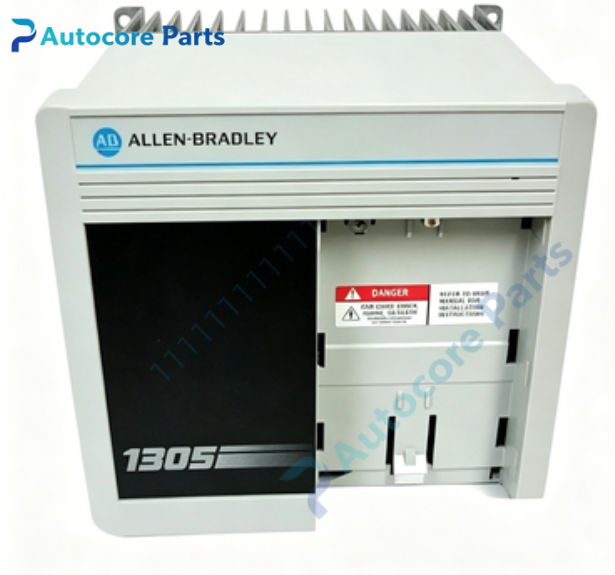

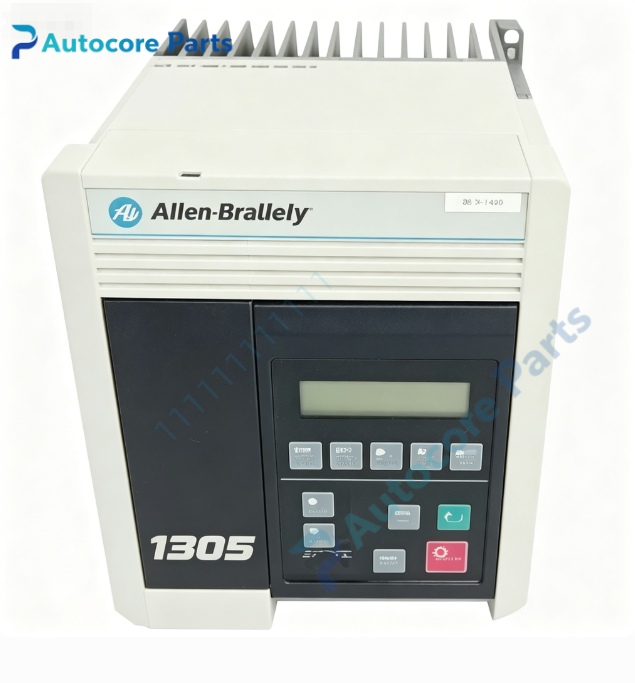

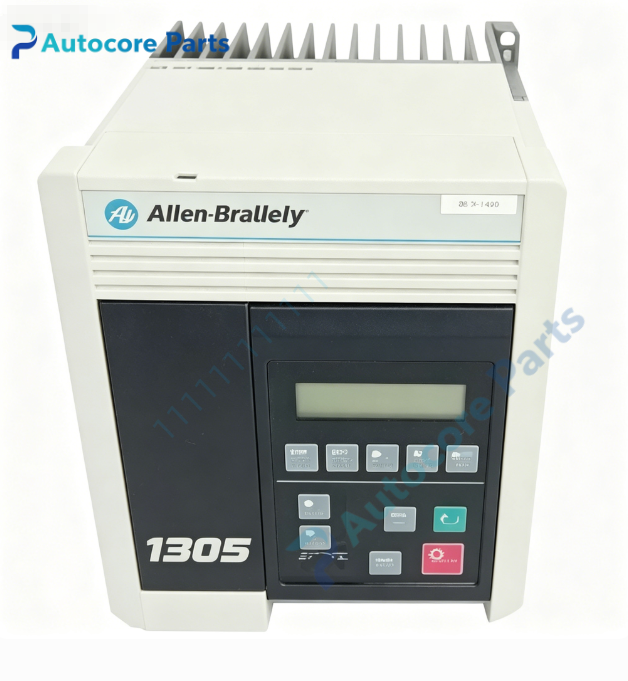

Allen‑Bradley 1305‑BA02A‑HA2 AC Drive

Technical Specifications

Model:1305‑BA02A‑HA2

Brand:Rockwell Allen‑Bradley

Product Type:AC variable frequency drive,1305 series,factory‑installed HA2 digital up‑down key HIM

Rated power:0.75HP(0.55kW)

Input voltage:3×380‑460V AC 50/60Hz

Rated continuous output current:1.6A

Output frequency range:0‑400Hz

Control mode:Open‑loop V/F control

Control interface:0‑10V /4‑20mA analog input,digital start‑stop,jog,preset‑speed terminals,DSI communication port

Human Interface:HA2 digital up‑down key HIM with LED speed bar indicator

Enclosure:NEMA1(IP30)

Weight:1.70 kg

Dimension:152mm×180mm×80mm

Operating Temperature:0℃ ~ +50℃

Storage Temperature:-40℃ ~ +70℃

Humidity:5%‑95% non‑condensing

Feature:Multi‑segment accel/decel,7 preset speeds,DC braking,built‑in electronic motor overload protection,fault code and fault queue display;HA2 denotes factory‑mounted digital up‑down keypad HIM

System Compatibility:General‑purpose three‑phase asynchronous motor,conveyors,mixers,small fans and pumps

Remark:Legacy EOL spare component;HA2 digital HIM is factory equipped;only support three‑phase input;confirm supply voltage,motor power before replacement.

Product Details

1305‑BA02A‑HA2 belongs to Rockwell Allen‑Bradley 1305 compact AC drive series. HA2 indicates factory‑mounted digital up‑down key HIM with LED speed bar indicator for local operation and parameter modification.

It adopts open‑loop V/F control,support multi‑ramp acceleration‑deceleration,7 preset speeds and DC braking function. Built‑in electronic motor overload protection,analog and digital terminal control. Widely used for small‑power conveyor,mixer,fan and pump applications. Drive failure will cause motor no‑run,alarm and equipment stop,mainly used for old‑site equipment overhaul and spare‑part replacement.
