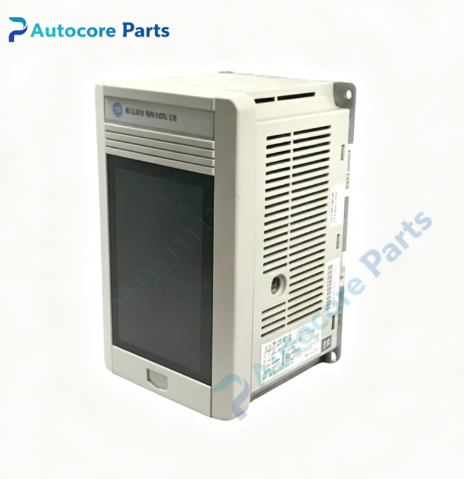

Allen‑Bradley 1305‑AA02A‑DE/A AC Drive

Technical Specifications

Model:1305‑AA02A‑DE/A

Brand:Rockwell Allen‑Bradley

Product Type:AC variable frequency drive,1305 series,German language firmware version

Rated power 3‑phase input:0.5HP(0.37kW)

Rated power 1‑phase input:0.25HP(0.19kW)

Input voltage:200‑230V AC 50/60Hz,support single‑phase or three‑phase power supply

Rated continuous output current:2.3A

Output frequency range:0‑400Hz

Control mode:Open‑loop V/F control

Control interface:0‑10V /4‑20mA analog input,digital start‑stop,jog,preset‑speed terminals

Enclosure:NEMA1(IP30)

Weight:1.80 kg

Dimension:152mm×180mm×80mm

Operating Temperature:0℃ ~ +50℃

Storage Temperature:-40℃ ~ +70℃

Humidity:5%‑95% non‑condensing

Feature:Multi‑segment accel/decel,7 preset speeds,DC braking,built‑in electronic motor overload protection,diagnostic fault code display,DE suffix for German language firmware

System Compatibility:General‑purpose three‑phase asynchronous motor,conveyors,mixers,small fans and pumps

Remark:Legacy EOL spare component;DE suffix denotes German language firmware;A is hardware revision;can accept single‑phase 200‑230V input for derated power operation;confirm supply mode,motor power before replacement.

Product Details

1305‑AA02A‑DE/A belongs to Rockwell Allen‑Bradley 1305 compact AC drive series. DE represents German language firmware, /A stands for hardware revision A.

It supports single‑phase or three‑phase 200‑230V power input; when powered by single‑phase source, power will be derated to 0.25HP. Adopts open‑loop V/F control, supports multi‑ramp acceleration‑deceleration,7 preset speeds and DC braking function. Built‑in electronic motor overload protection, analog and digital terminal control, widely used for small‑power conveyor,mixer,fan and pump applications. Drive failure will cause motor no‑run,alarm and equipment stop,mainly used for old‑site equipment overhaul and spare‑part replacement.
