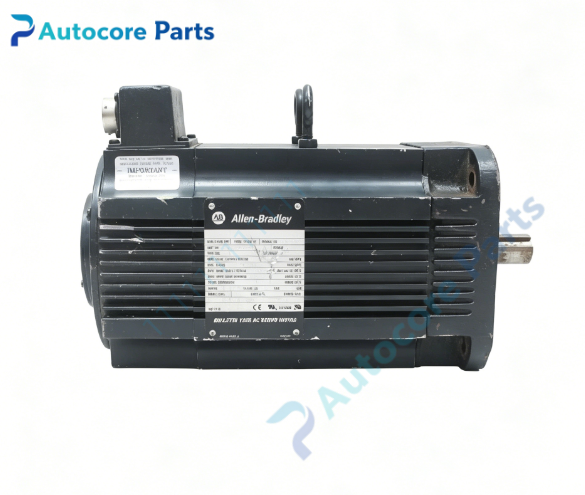

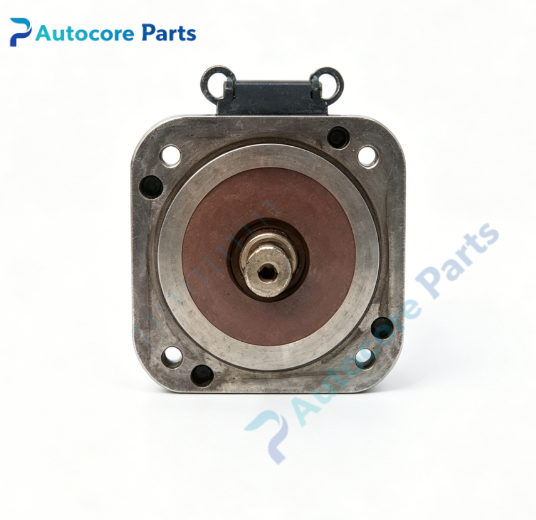

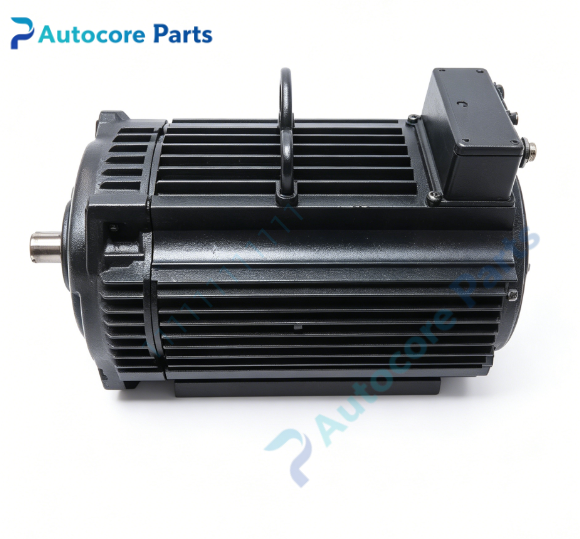

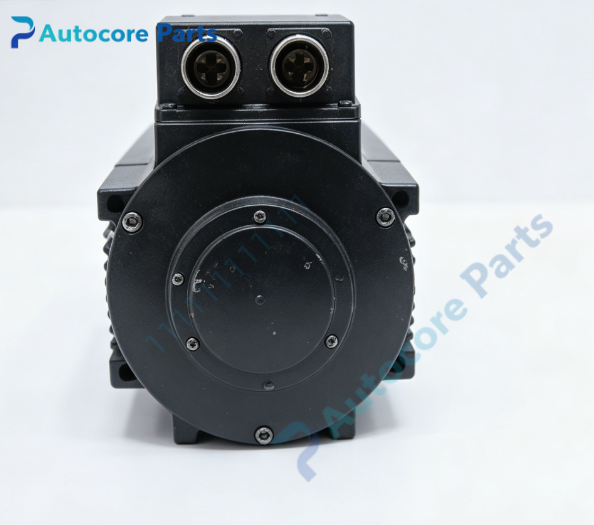

Allen‑Bradley 1326AB‑B515G‑M2K5L/B AC Servo Motor

Technical Specifications

Model:1326AB‑B515G‑M2K5L/B

Brand:Rockwell Allen‑Bradley

Product Type:Brushless AC synchronous servo motor

Rated voltage:460V AC 3‑phase

Continuous stall torque:10.4Nm

Rated speed:5000RPM

Rated power:2.9kW

Continuous current:7.5A

Peak stall current:28.5A

Feedback:Multi‑turn high‑resolution encoder

Brake:24V DC holding brake

Protection class:IP65

Rotor inertia:0.0043 kg·m²

Thermal protection:Built‑in thermal switch

Hardware revision:Revision B

Compatible drives:1391,1394,Kinetix,Ultra3000 series servo drives

Enclosure:TENV sealed housing

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Mounting:CEI/IEC 72‑1 metric flange mounting

Feature:Permanent magnet rotor for fast servo response;three‑phase sinusoidal winding for smooth high‑speed operation;multi‑turn high‑resolution encoder feedback;24V DC holding brake for static load holding;Revision B updated hardware iteration;built‑in over‑temperature protection;robust sealed housing for harsh industrial environment.

System Compatibility:CNC machine tools,automated assembly lines,material handling,legacy motion control system retrofit and spare replacement.

Remark:Legacy EOL spare component;discontinued original production;M2K5L includes multi‑turn encoder and holding brake;B is hardware revision version;confirm mechanical and electrical parameters before replacement.

Product Details

1326AB‑B515G‑M2K5L/B belongs to Rockwell Allen‑Bradley 1326AB Torque‑Plus high‑performance AC servo motor series. Three‑phase brushless synchronous servo motor with multi‑turn high‑resolution encoder and 24V DC holding brake,delivers 10.4Nm continuous stall torque under 460V power supply,running at rated speed 5000RPM. Hardware Revision B is updated hardware iteration. IP65 sealed TENV housing adapts to harsh workshop environment. Built‑in thermal switch provides winding overheat protection. Mainly used for legacy automation equipment maintenance and spare‑part replacement,matched with 1391,1394,Kinetix,Ultra3000 series servo drives.
