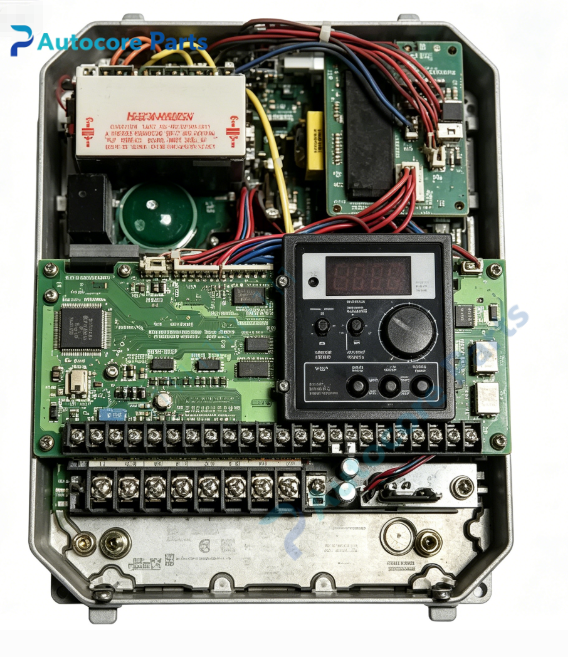

Allen‑Bradley 1333‑AAB/C AC Variable Frequency Drive

Technical Specifications

Model:1333‑AAB/C

Brand:Rockwell Allen‑Bradley

Product Type:AC variable frequency drive

Rated power:1HP(0.75kW)

Input voltage:380‑460V AC three‑phase,50/60Hz

Input current:3.3A

Rated output current:2.1A

Input kVA:2.6kVA

Output kVA:1.7kVA

Control mode:V/Hz open‑loop speed control

Output frequency range:0‑400Hz

Enclosure:NEMA Type 1,IP20

Hardware revision:Series C

Cooling mode:Forced air cooling

I/O:Configurable analog input,relay digital output

Protection:Over‑current,over‑voltage,over‑temperature,ground fault,stall protection

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Mounting:Cabinet panel mounting

Feature:V/Hz open‑loop motor speed regulation;adjustable acceleration and deceleration ramps;skip frequency setting function;Series C updated hardware iteration for circuit optimization;comprehensive fault diagnosis and alarm function;NEMA Type‑1 cabinet‑mount housing;suitable for maintenance of legacy fan,pump and conveyor equipment.

System Compatibility:Small conveyor equipment,fans,pumps,general‑purpose industrial machinery,legacy automation system spare‑part replacement.

Remark:Legacy EOL spare component;original production discontinued;/C denotes Series C hardware revision;confirm motor power,wiring definition before replacement.

Product Details

1333‑AAB/C belongs to Rockwell Allen‑Bradley 1333 series adjustable frequency AC drive. Rated 1HP,380‑460V three‑phase input,3.3A input current,2.1A output current. /C stands for Series C hardware revision with optimized circuit components. It adopts V/Hz open‑loop control for AC motor speed adjustment,provides skip frequency function and configurable acceleration and deceleration parameters,multiple fault protection functions. NEMA Type‑1 IP20 cabinet‑mount structure,mainly used for old‑style small industrial equipment maintenance and spare‑part replacement.
