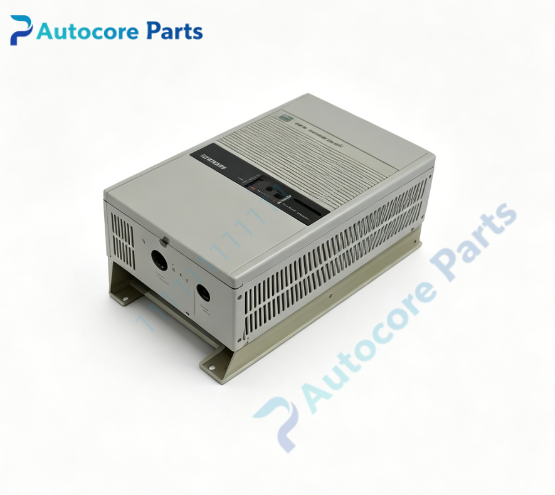

Allen‑Bradley 1336‑B005‑EOD‑FA2‑L3 5‑HP 460V AC Adjustable Frequency Drive

Technical Specifications

Model:1336‑B005‑EOD‑FA2‑L3

Brand:Rockwell Allen‑Bradley

Product Type:Complete AC Adjustable Frequency Drive Unit

Applicable Series:1336‑PLUS Constant‑Torque AC Drive

Power Rating:5 HP / 3.7 kW

Input:3‑Phase, 380‑480V AC, 50/60 Hz

Output Rated Current:9.6A

Output KVA:6.3‑7.6KVA

Enclosure Type:EOD (Open‑Style IP00 open chassis,must be installed inside user‑supplied cabinet)

Physical Dimension:26.0cm × 18.5cm ×16.0cm

Weight:16.2kg

Factory Options:

‑ FA2: FA2 basic front‑mount control panel for open‑frame unit,supports local manual operation,parameter viewing and modification

‑ L3: L3 logic interface board,115V AC logic signal level,accepts external interlock,enable and fault contact input signals

Control Mode:Sensorless vector control, V/F control

Speed Regulation Accuracy:Open‑loop ±0.5% rated speed

Overload Rating:150% rated current for 1 minute (constant‑torque)

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Product Brief:

1336‑B005‑EOD‑FA2‑L3 is factory‑configured open‑frame IP00 5‑HP 460V 1336‑PLUS full drive unit,not separate PCB boards. Suffix EOD stands for open‑frame chassis without protective housing,must be installed inside customer control cabinet.

FA2 is front basic control panel for open‑style drive,realizes local manual operation and parameter editing without external HIM hardware.

L3 logic interface board works with 115V AC logic signals,matches legacy production line 115V AC control loops for external interlock and safety signal input.

Internal hardware includes rectifier power stack,IGBT inverter section,main control CPU board,auxiliary power supply and signal sampling‑conditioning circuits.Retains onboard base analog/digital hard‑wired I/O terminals.Supports SCANport communication via external adapters.

Full protections: over‑current,over‑voltage,under‑voltage,over‑temperature,input phase‑loss,motor thermal overload,ground‑fault protection.When performing full‑unit replacement,backup original parameters,check firmware compatibility and run motor auto‑tuning.ESD protection required for installation and commissioning.Separate power and signal cables.

Commonly used for overhaul of legacy fans,pumps,conveyors and process machinery;installed inside user cabinet,adapts to equipment with 115V AC interlock control circuits.
