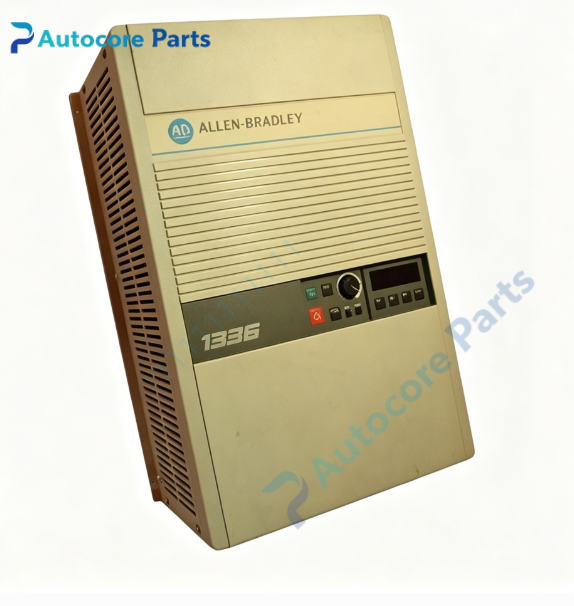

Allen‑Bradley 1336‑B007‑EAD‑FA2‑L3 7.5‑HP 460V AC Adjustable Frequency Drive

Technical Specifications

Model:1336‑B007‑EAD‑FA2‑L3

Brand:Rockwell Allen‑Bradley

Product Type:Complete AC Adjustable Frequency Drive Unit

Applicable Series:1336‑PLUS Constant‑Torque AC Drive

Power Rating:7.5 HP / 5.5 kW

Input:3‑Phase, 380‑480V AC, 50/60 Hz

Output Rated Current:13A

Output KVA:8.6‑10.4KVA

Enclosure Type:EAD (NEMA Type 1 IP20 enclosed cabinet,support direct wall mounting)

Physical Dimension:31.0cm × 22.0cm ×19.0cm

Weight:19.4kg

Factory Options:

‑ FA2: FA2 front‑mount basic control panel,supports local manual operation,parameter viewing and modification

‑ L3: L3 logic interface board,115V AC logic signal level,supports external interlock,enable and fault contact input signals

Control Mode:Sensorless vector control, V/F control

Speed Regulation Accuracy:Open‑loop ±0.5% rated speed

Overload Rating:150% rated current for 1 minute (constant‑torque)

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Product Brief:

1336‑B007‑EAD‑FA2‑L3 is factory‑configured NEMA Type1 IP20 enclosed 7.5‑HP 460V 1336‑PLUS full drive unit,not separate PCB boards. Suffix EAD represents NEMA Type1 IP20 metal enclosed housing,suitable for direct wall‑mount installation without extra user cabinet.

FA2 front basic control panel enables local manual operation and parameter editing without external HIM hardware.

L3 logic interface board adopts 115V AC signal level,matches legacy production line 115V AC control loops for external enable,interlock and fault signal input.

Internal hardware includes rectifier power stack,IGBT inverter section,main control CPU board,auxiliary power supply and signal sampling‑conditioning circuits.Retains onboard base analog/digital hard‑wired I/O terminals.Supports SCANport communication via external adapters.

Full protections: over‑current,over‑voltage,under‑voltage,over‑temperature,input phase‑loss,motor thermal overload,ground‑fault protection.When performing full‑unit replacement,backup original parameters,check firmware compatibility and run motor auto‑tuning.ESD protection required for installation and commissioning.Separate power and signal cables.

Commonly used for overhaul of legacy fans,pumps,conveyors and process machinery;direct wall‑mount deployment,adapts to equipment with 115V AC interlock control signal.
