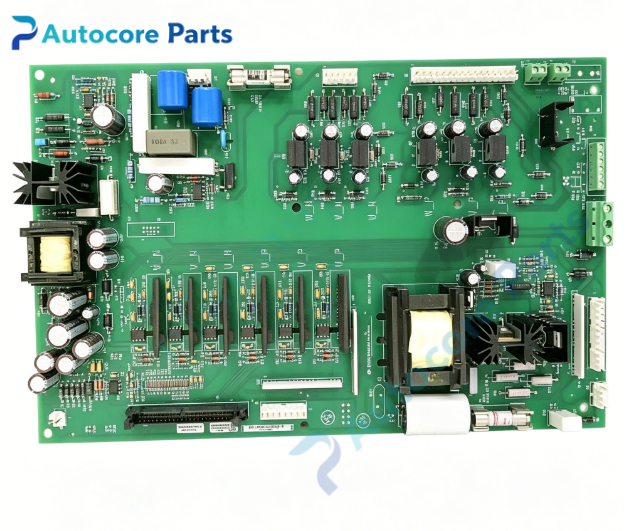

Allen‑Bradley 1336‑135736 Auxiliary Power Supply Control PCB Board

Technical Specifications

Model:1336‑135736

Brand:Rockwell Allen‑Bradley

Product Type:Auxiliary Power Supply Control PCB Board

Applicable Series:1336 PLUS,1336 PLUS II,1336 IMPACT adjustable frequency AC drives

Core Function:Auxiliary power management,power signal distribution,voltage monitoring for inner board circuits

Installation Method:Built‑in plug‑in installation

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Product Details

1336‑135736 is auxiliary power control PCB board for Allen‑Bradley 1336 series ac drive. It manages auxiliary power signal distribution and real‑time voltage monitoring for each internal circuit board of frequency converter.

It integrates voltage monitoring and surge suppression circuit,improves power supply stability for control and signal loops. Matches original installation dimension and interface,supports direct replacement without extra modification. Solves faults such as power supply fluctuation,unstable board operation and occasional drive shutdown. ESD protection is required during installation.

Suitable for maintenance of legacy fan,pump and conveyor automation equipment.

Remark:Legacy EOL spare component;original production discontinued;please confirm drive compatibility before purchase.
