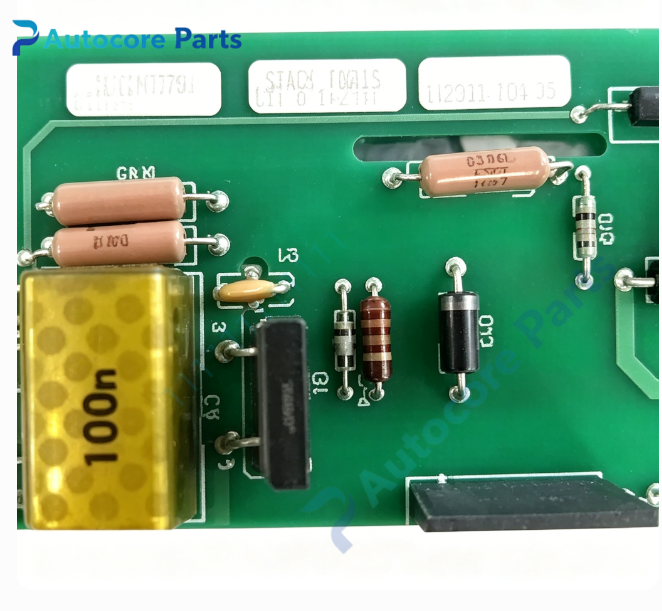

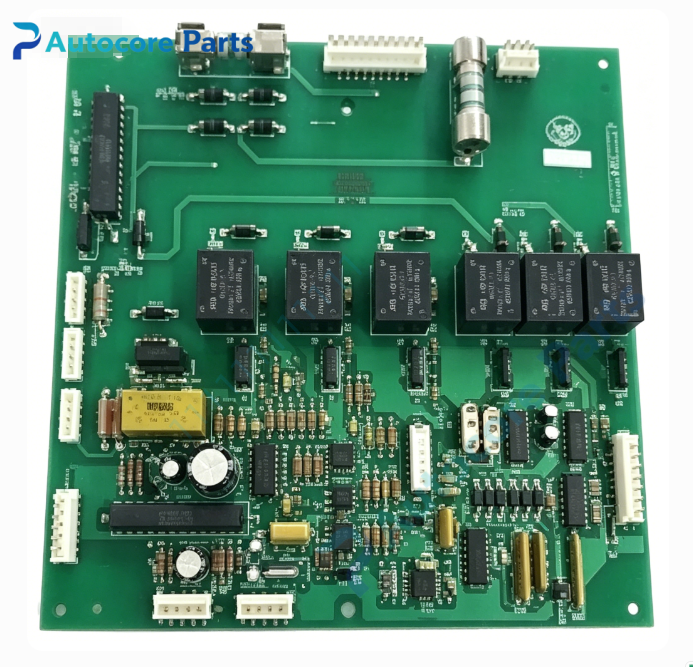

Allen‑Bradley 1336‑142531 Fan Control & Monitoring PCB Board

Technical Specifications

Model:1336‑142531

Brand:Rockwell Allen‑Bradley

Product Type:Fan Control & Monitoring PCB Board

Applicable Series:1336 PLUS,1336 PLUS II,1336 IMPACT adjustable frequency AC drives

Core Function:Cooling fan start‑stop control,fan speed monitoring,fan fault detection,temperature‑related signal feedback

Installation Method:Built‑in plug‑in installation

Operating Temperature:0℃ ~ +40℃

Storage Temperature:-40℃ ~ +70℃

Product Details

1336‑142531 is fan control and monitoring PCB board for Allen‑Bradley 1336 series ac drive. It controls the startup and running of internal cooling fans,monitors fan operating state in real‑time and sends fault feedback to main control board once fan stall or failure occurs.

It cooperates with drive temperature detection logic to realize thermal protection linkage. Matches original installation dimension and interface,supports direct replacement without extra modification. Solves typical faults including fan alarm,over‑temperature pre‑trip and cooling system abnormal. ESD protection is required during installation.

Suitable for maintenance of legacy fan,pump and conveyor automation equipment.

Remark:Legacy EOL spare component;original production discontinued;please confirm drive compatibility before purchase
