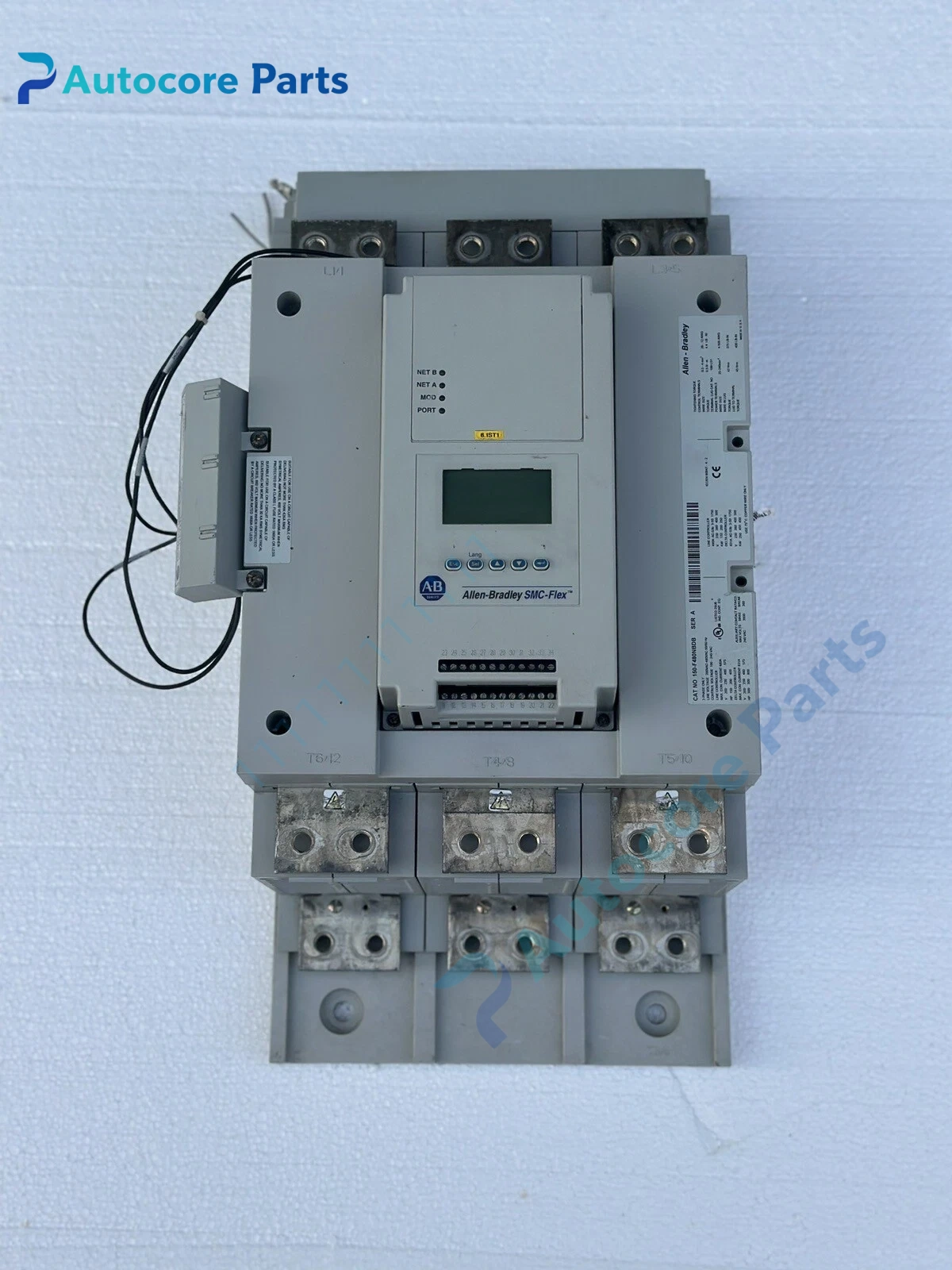

Allen‑Bradley 150-F480NBDB SMC-Flex Soft Starter Unit

Module Feature

150-F480NBDB is the 480A frame variant of Allen‑Bradley SMC‑Flex series intelligent solid-state soft starter. It adopts SCR phase voltage regulation with integrated bypass contactor to reduce heat loss after motor reaches full speed. Supports rich starting modes: standard soft ramp, current limit, kick start, slow speed jog, soft stop and smart motor braking SMB. Built-in thermal overload, phase loss, phase imbalance, over/under current, locked rotor protection. Real-time metering of three-phase current, voltage, power and energy. Local LCD keypad, optional remote HIM; Modbus communication for SCADA/DCS linkage. Modular split power/control design for convenient maintenance. Widely stocked as spare for water pump, induced draft fan, compressor and heavy-duty process motor MCC cabinet.

Working principle

During startup, the controller adjusts SCR firing angle to slowly raise motor terminal voltage, limit inrush current and reduce mechanical shock to shaft and load. After completing acceleration, internal bypass contactor closes to bypass SCRs for low-loss continuous operation. Protection unit continuously samples three-phase current and voltage. When fault condition is detected, it cuts SCR output and sends alarm/trip signal, uploading fault record and parameter tag via Modbus bus.

Onboard components

Three-phase SCR power pack, integrated bypass contactor, current transformer group, main control CPU board, LCD & keypad panel, cooling fan assembly, status LED array, secondary control terminal block and metal frame chassis.

LED indicators

LCD screen displays running current, motor status, alarm code and fault log. Mechanical and LED indicators show Power, Run, Trip and Bypass status.

Hardware self‑diagnosis

Built-in supervision detects phase loss, current imbalance, SCR fault, overheat, bypass contact fault, control power loss and communication timeout. Configuration and fault diagnosis are completed by Rockwell Connected Components Workbench software.

Programming softwareConnected Components Workbench, used for start ramp setting, protection curve configuration, Modbus address assignment, motor thermal model setup and fault history reading.

Electrical & Process Parameters

Model:150-F480NBDB Brand:Allen‑Bradley (Rockwell Automation) Device type:SMC-Flex intelligent soft starter Function:Controlled motor start/stop, overload and electrical fault protection for three-phase AC motor

Mechanical & Structure

Mounting:Cabinet MCC compartment mounting Protection class:IP20 Housing:Heavy-duty metal enclosed chassis

Environmental

Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, UL, IEC60947 Status:Original Rockwell motor control spare

Installation

Isolate upstream main power before replacement. Check three-phase wiring sequence, match motor FLA for thermal setting, verify control voltage 100~240V AC, set start ramp and current limit, test soft start, soft stop and protection trip function after commissioning.

Interface

Three-phase main power terminals, motor load terminals, control power terminal, digital I/O, Modbus communication port, HIM remote panel port.

Diagnostic

Overcurrent trip: Starting ramp too steep, locked rotor, downstream short. Phase imbalance alarm: Loose power terminal, single-phase supply failure. Bypass fault: Bypass contactor burnout or stuck. Communication trouble: Modbus bus disconnection, wrong station address. Overtemperature: Fan failure, dust accumulation, overloaded duty cycle.

Product Brief

150-F480NBDB soft starter, Rockwell SMC-Flex 480A intelligent motor control spare for large pump, fan and compressor MCC cabinet replacement.
