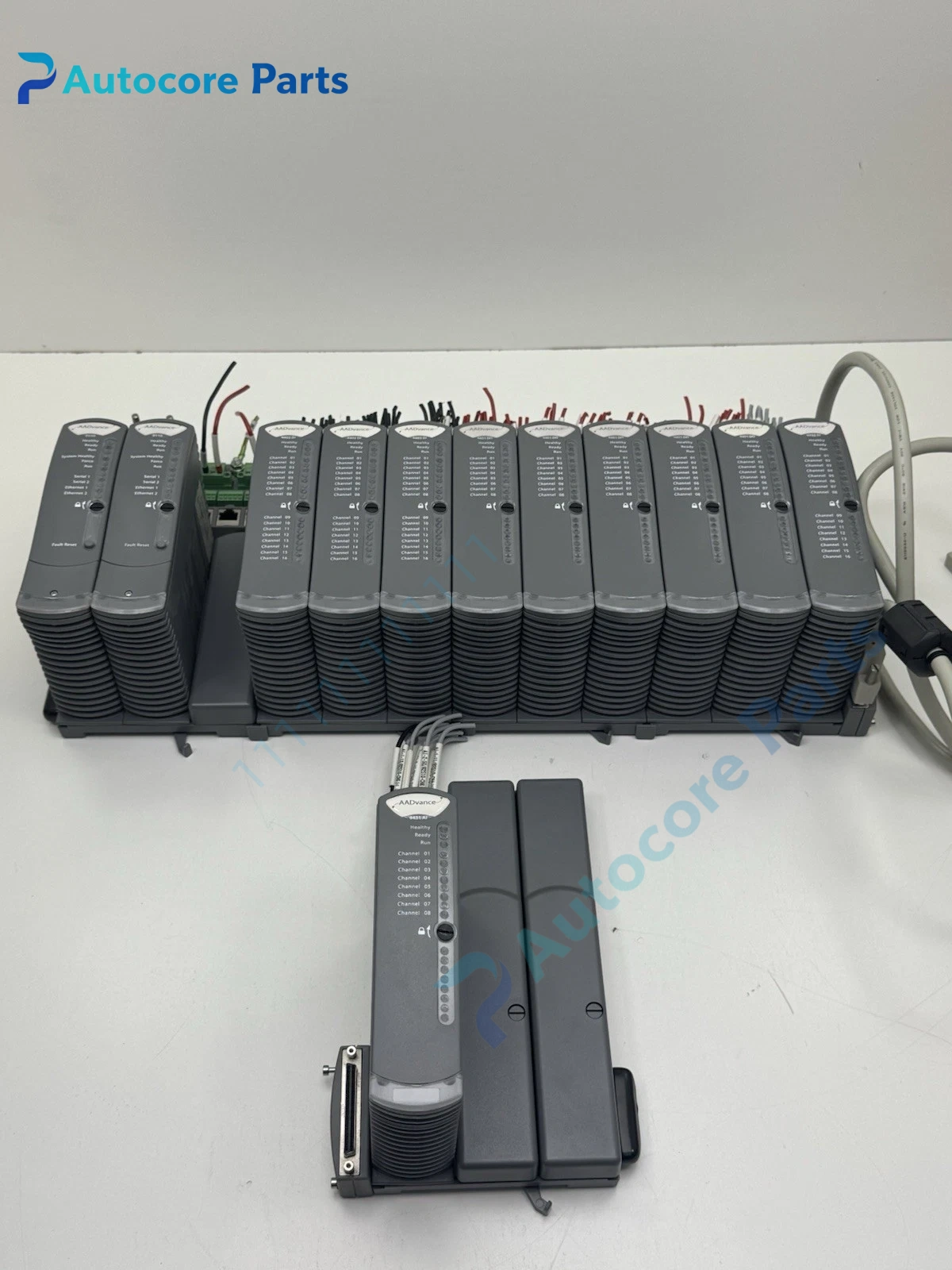

Allen‑Bradley T9431 AADvance Analog Input Module Unit

Module Feature

T9431 is Allen‑Bradley (ICS Triplex) AADvance series safety analog input module, with 8 isolated analog input channels, mainly used to collect 4-20mA field instrument signals.

Each channel provides independent isolation circuit, which can prevent field side interference and fault from spreading to the safety controller backplane. It supports multi-range signal configuration and rich channel diagnosis including wire break, short circuit and out-of-range detection. The module complies with SIL2 safety specification and must be matched with AADvance T9110 processor and T9300 I/O base to form a complete safety control station. Widely used in petrochemical, power and boiler safety interlock systems.

Working principle

Field analog current signal enters the module through terminal base. The signal conditioning and AD conversion circuit convert analog quantity into digital value, and transmit the data to AADvance main processor via backplane bus.

The module continuously monitors the health status of each channel. Once abnormal signal is detected, it marks the fault and uploads alarm information to the safety controller for safety logic judgment and interlock action.

Onboard components

Signal isolation circuit, multi-channel AD sampling chip, local diagnostic logic circuit, backplane communication interface, front panel status LED array, module power management circuit.

LED indicators

Front panel LED indicators for module power, communication status and each individual channel fault status.

Hardware self‑diagnosis

Self-diagnosis covers backplane power abnormality, communication link fault, channel open circuit, channel short circuit, signal over-range and internal hardware error. Fault information is recorded and uploaded to AADvance Workbench.

Programming software

AADvance Workbench software for channel range configuration, safety logic programming, fault log viewing and module firmware upgrade.

Electrical & Process Parameters

Model:T9431 Brand:Allen‑Bradley ICS Triplex Series:AADvance Device type:8 Channel Isolated Analog Input Safety Module Signal range:0~24mA, default 4~20mA Backplane supply:18~32V DC Safety level:SIL2 Isolation:Channel to channel isolation Function:Analog signal acquisition of transmitters for safety interlock system

Mechanical & Structure

Mounting:Install on T9300 I/O base Protection class:IP20 Housing:Plastic metal composite hot-swappable module housing

Environmental

Operating temperature:0℃ ~ +60℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE, IEC 61508 SIL2 compliant Status:Allen‑Bradley original AADvance safety spare

Installation

Insert the module into the coded slot of T9300 base, lock the module latch. Wire field transmitter signals to matched termination assembly.

Download configuration via AADvance Workbench, set signal range and channel alarm threshold. Verify channel diagnosis function and safety communication after power on.

Interface

AADvance backplane bus connector, matched external termination terminal base.

Diagnostic

Channel fault: Field cable break, transmitter failure or signal out of configured range.

Module offline: Backplane power loss, poor base contact or incompatible firmware version.

Communication failure: Base fault or AADvance processor bus exception.

Product Brief

Allen‑Bradley T9431 AADvance 8-channel isolated analog input safety module, 4-20mA signal, SIL2, channel diagnosis, matched for AADvance safety system, used for process transmitter signal collection and safety interlock.
