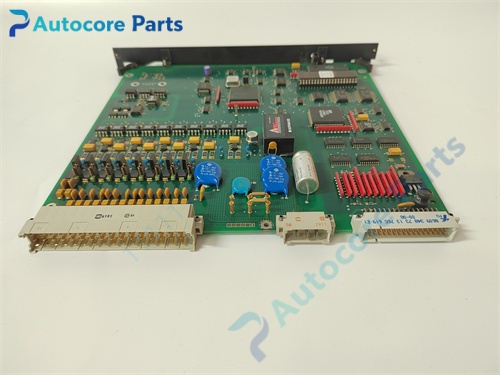

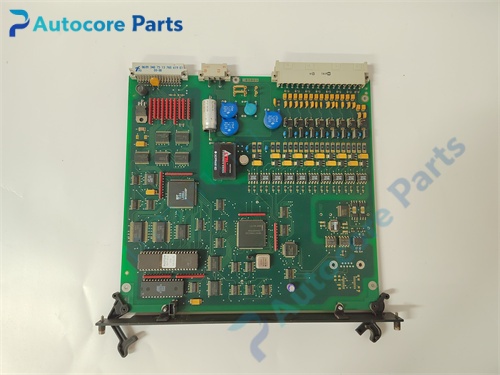

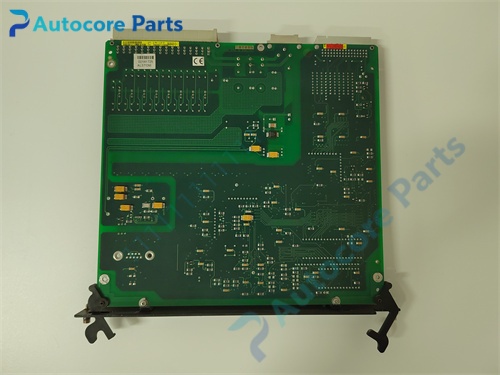

ALSTOM AH116‑2 Turbine Control Interface Board

Technical Specifications

Model：AH116‑2

Brand：ALSTOM

Product Type：Turbine control interface circuit board

Applicable System：ALSTOM Alspa series control rack

Supply Voltage：24V DC backplane power supply

Signal Function：Multi‑channel analog & digital signal acquisition,actuator control output,sensor signal conditioning

Communication Interface：Rack backplane internal bus

Status Indicator：Multi‑color LED for power,channel and fault diagnosis

Built‑in Function：Signal filtering,signal conditioning,turbine auxiliary loop control,fault status feedback

Working Temperature：‑10℃ ~ +60℃

Storage Temperature：‑20℃ ~ +70℃

Protection Class：IP20

Mounting：Plug‑in slot installation inside control rack

Weight：0.52kg

Product Brief:

AH116‑2 is legacy plug‑in interface board for ALSTOM Alspa turbine control rack. It acquires temperature,pressure,speed and other field sensor signals,performs signal conditioning and filtering,then transmits valid data to main controller through backplane bus. Meanwhile,it outputs control drive signals to on‑site actuators to realize auxiliary closed‑loop control for turbine unit. Panel LED indicators support quick on‑site fault checking without extra testing tools. Plug‑in cabinet mounting structure enables convenient disassembly and module replacement. This is EOL discontinued spare part,widely used for thermal power plant steam turbine control system maintenance and renovation. Please confirm hardware revision,rack compatibility and signal configuration before purchase. Strict ESD anti‑static protection must be followed during installation.
