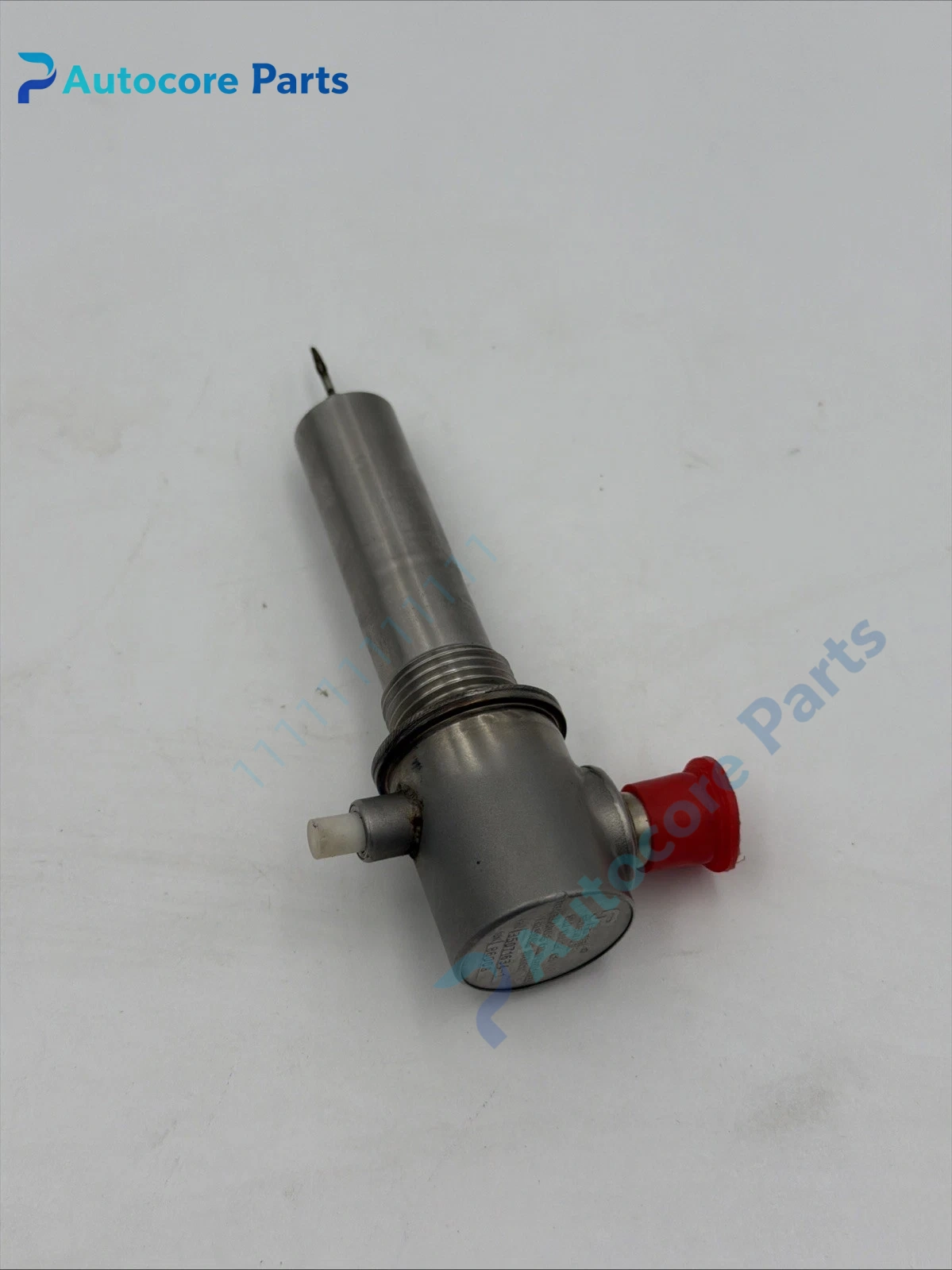

Ameron 35071634-1 TCPS Pressure Switch Unit

Feature & Principle

This pressure switch integrates temperature compensation structure. When system pressure reaches the set threshold, the internal mechanical contact acts and outputs on/off discrete signal. Built-in temperature compensation reduces the influence of wide temperature change on action point, ensuring stable trigger pressure in extreme low and high temperature environment for hydraulic safety interlock.

Specifications

Model: 35071634-1 (M35071634-1) Brand: Ameron Type: TCPS temperature compensated pressure switch Action logic: Actuates closed when pressurized, opens with decreasing pressure Connector: MS3476L8-33SW Working temperature: -65℃ ~ +85℃ Grade: Aerospace airborne grade Certification: Aerospace component specification

Components & Diagnostics

Pressure sensing bellows, temperature compensation assembly, micro contact mechanism, metal housing, aviation connector. Common faults: contact adhesion, action pressure offset, seal leakage, connector pin corrosion.

Product Brief

35071634-1 temperature compensated pressure switch, Ameron aerospace spare widely used for airborne hydraulic and pneumatic pipeline pressure monitoring.
