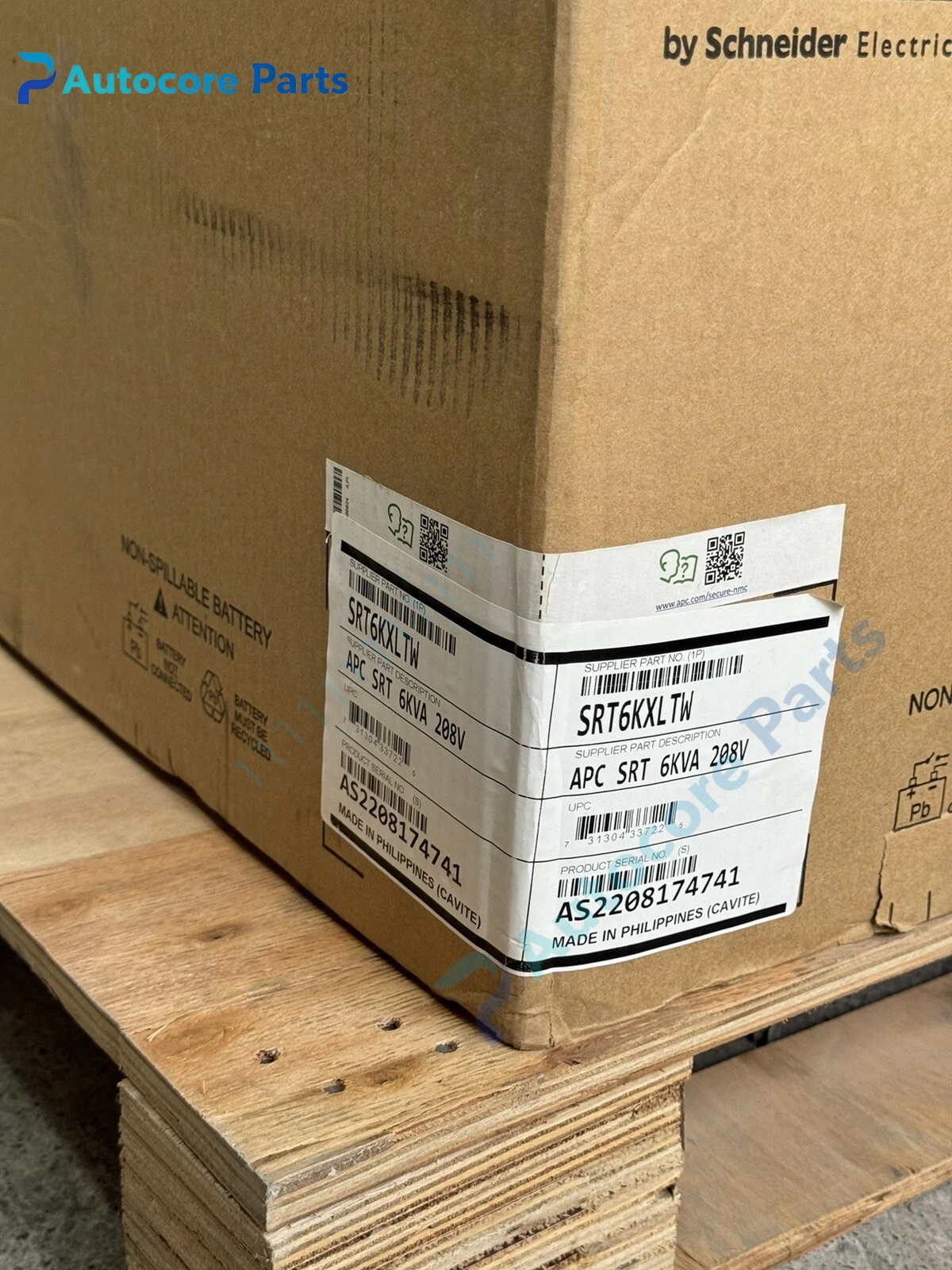

APC SRT6KXLTW Uninterruptible Power Supply Unit

Module Feature

SRT6KXLTW belongs to APC Smart-UPS SRT series double-conversion online uninterruptible power supply. It is the factory serviced / exchange version of SRT6KXLT, tower form factor, rated 6000VA / 6000W single phase, 208V nominal voltage.

It continuously supplies high-quality sine-wave power to load regardless of mains fluctuation. Built-in automatic and manual maintenance bypass allows online maintenance without powering down critical equipment. It supports SmartSlot expansion for network management card, environmental monitoring and MODBUS communication. It is widely deployed in data center servers, industrial PLC cabinets, test instruments and substation control loads.

Working principle

AC mains is rectified to DC to charge internal battery bank, then inverter converts DC back to stabilized pure sine AC output to load. When mains fails, battery supplies DC power to inverter instantly without transfer gap. If UPS internal fault occurs, static bypass switches load directly to raw mains.

Onboard components

Rectifier module, IGBT inverter power stage, battery pack, static bypass relay, control DSP board, HMI display and keypad, SmartSlot expansion slot, surge suppression circuit.

LED indicators

Front panel LEDs indicate mains normal, battery mode, overload, fault and bypass status.

Hardware self‑diagnosis

Power-on self-test and continuous monitoring detect battery low, overload, over-temperature, inverter fault, DC bus anomaly and internal hardware failure. Event logs can be read via network management.

Programming software

APC PowerChute Business Edition, EcoStruxure Power, used for shutdown configuration, alarm notification, event log and firmware upgrade.

Electrical & Process Parameters

Model:SRT6KXLTW Brand:APC (Schneider Electric) Device type:Online Double Conversion UPS Rating:6000VA / 6000W Voltage:208V AC Waveform:Pure sine wave Function:Clean continuous power supply and backup protection for critical electronic loads

Mechanical & Structure

Mounting:Vertical tower installation Protection class:IP20 Housing:Metal tower chassis

Environmental

Operating temperature:0℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:UL, CE, ENERGY STAR optional Status:APC original UPS spare, service exchange unit

Installation

Place in ventilated cabinet, avoid heat source and dust accumulation. Connect protective earth first. Configure shutdown sequence and alarm threshold in PowerChute. Perform periodic battery self-test.

Interface

AC input hardwire terminal, AC output terminals, SmartSlot expansion port, USB / RS232 communication port, battery connector.

Diagnostic

On battery frequently: Mains voltage unstable or input wiring loose. Overload alarm: Connected load power exceeds UPS rating. Battery short runtime: Battery aging, capacity degradation. Communication offline: Network card fault or IP conflict.

Product BriefAPC SRT6KXLTW Smart-UPS SRT 6kVA online tower UPS, 208V double-conversion topology, for server and industrial critical load power backup.
