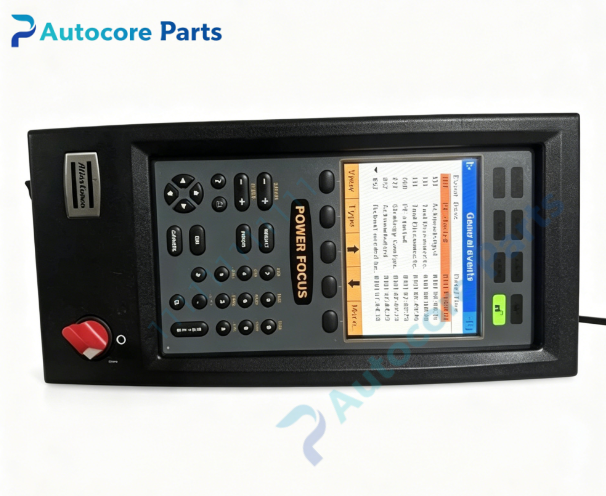

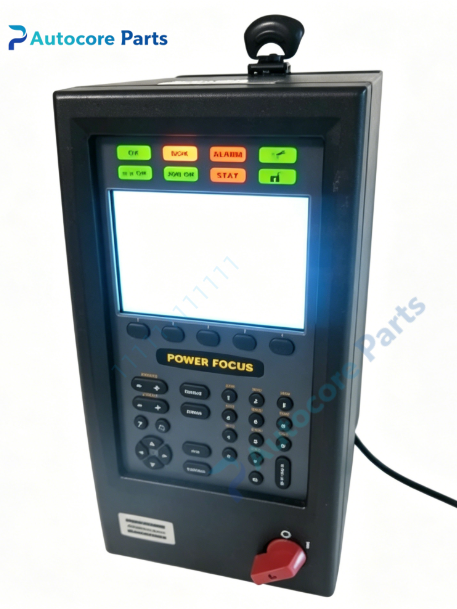

Atlas Copco PF4000-G-PN-HW Tightening Controller

Technical SpecificationsModel:PF4000-G-PN-HW Brand:Atlas Copco Product Type:Power Focus 4000 Graph Tightening Controller with Profinet Power Supply:100-120/200-240V AC,50/60Hz,320W Mounting:Cabinet rack mount Operating temperature:0℃ ~ +45℃ Storage temperature:-20℃ ~ +70℃ Relative humidity:5%~95%, non-condensing Weight:13kg Dimension:415mm319mm173mm

System compatibilityPF4000-G-PN-HW belongs to Atlas Copco Power Focus 4000 series tightening controller. Compatible with Atlas Copco Tensor series electric nutrunner tools. Equipped with Graph local HMI and Profinet industrial fieldbus, can communicate with PLC and MES system for fastening result upload, production traceability and remote parameter control.

FunctionPF4000-G-PN-HW is high precision torque-angle control unit for automated bolt assembly. It executes multi-step tightening programs, monitors torque and angle curve in real time and judges OK/NOK fastening results. Integrated Graph HMI supports standalone local program editing and parameter adjustment without external PC. The onboard Profinet interface enables high-speed bi-directional data exchange with upper automation systems. It supports fastening data storage, error-proofing logic and integrated emergency stop safety relay, widely used for automotive and heavy machinery assembly lines.

InstallationCut off power before installation. Mount controller inside electrical cabinet. Connect AC power, tool motor cable and Profinet communication cable. Configure tightening parameters and Profinet node address via local Graph panel or ToolsTalk software. Complete tool calibration and test tightening before online operation.

InterfaceSingle tool drive port, 24V digital I/O terminals, Profinet port, built-in Graph HMI operation panel, status LED indicators, E-stop safety relay terminal.

FeatureAtlas Copco Power Focus 4000 torque controller, local Graph HMI for on-site programming, Profinet communication interface, real-time torque-angle monitoring, built-in E-stop safety relay, fastening data traceability, error proofing function, IP20 cabinet protection. Obsolete legacy spare part, used for assembly line bolt tightening system maintenance and replacement.

DiagnosticController no power: check AC input, fuse and wiring. Tool no rotation: inspect tool cable, motor winding and tool enable signal. Tightening result deviation: verify tool calibration, tightening program and joint mechanical condition. Profinet communication loss: check network cable, node address, PLC configuration and bus topology. HMI display fault: check internal display connector and controller firmware.

Product BriefAtlas Copco PF4000-G-PN-HW is Power Focus 4000 Graph Profinet torque tightening controller, widely used in automotive and machinery assembly production lines for bolt fastening control, on-site program setup and factory network communication.

Disclaimer:All parameters are for reference only and shall not be used as the basis for quotation. Goods are scarce, overseas delivery lead time is 3-7 working days. It is only used for equipment maintenance and renovation.
