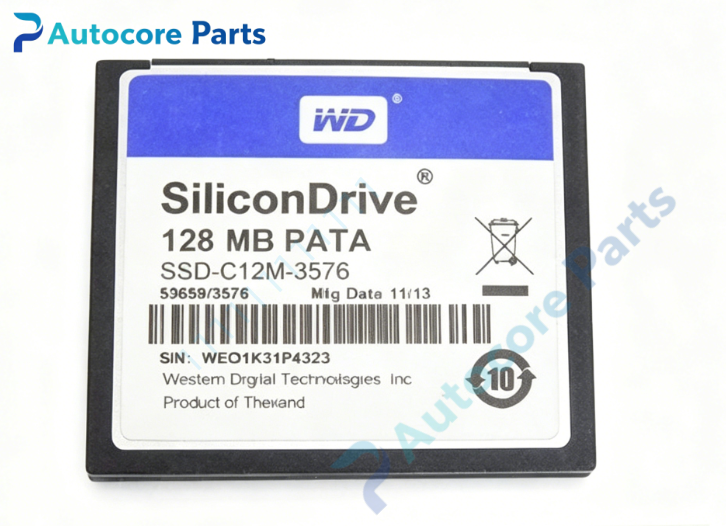

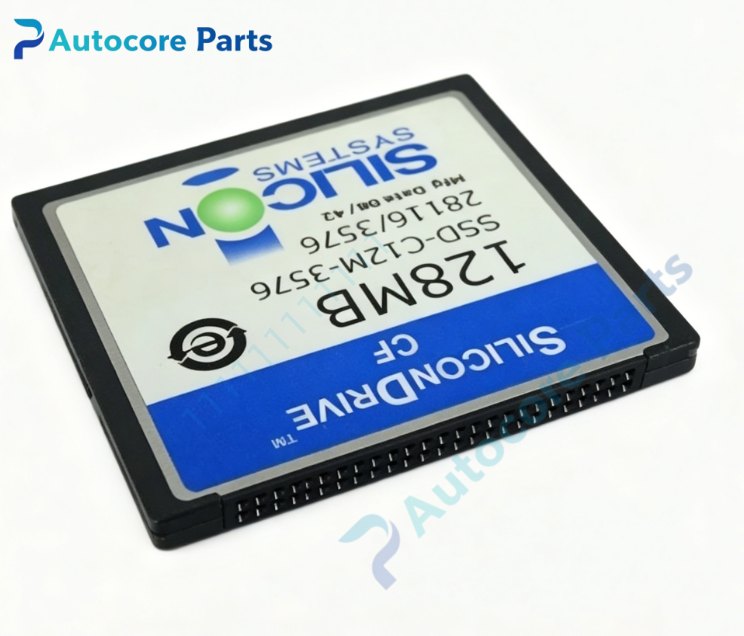

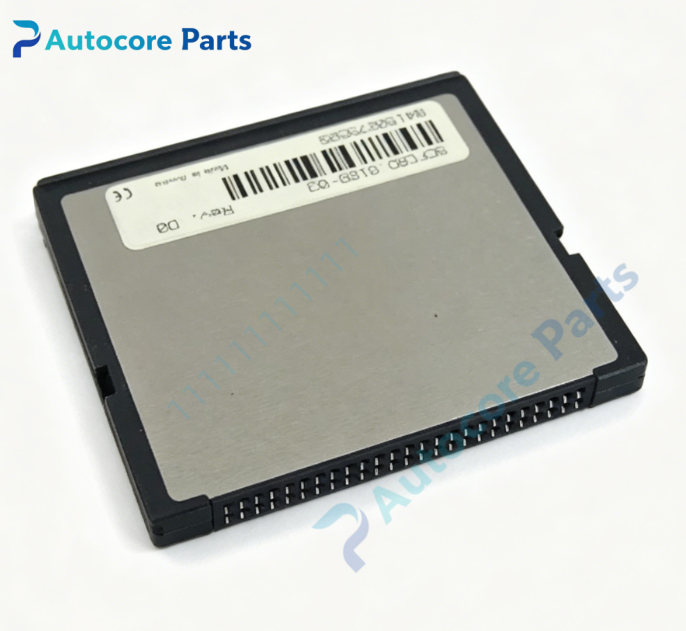

B&R 5CFCRD.0128‑03 CompactFlash Memory Card

Technical Specifications

Model:5CFCRD.0128‑03

Brand:B&R

Product Type:Industrial Type‑I CompactFlash memory card with SLC flash chip

Applicable System:B&R Power Panel series, PPC300, AP920 HMI, APC series industrial PC, X20 controller, match B&R embedded runtime system

Capacity:128 MB

Interface:CompactFlash Type‑I,50‑pin ATA interface, support PIO 0‑4, multiword DMA 0‑2 mode

Flash particle:SLC industrial grade NAND flash, static wear‑leveling function built‑in

Typical read speed:10 MB/s

Typical write speed:7 MB/s

Erase‑write cycles:2,000,000 typical cycles

Data retention:10 years minimum data retention time

MTBF:4,000,000 hours at 25℃

Mechanical dimension:42.8mm36.4mm3.3mm

Weight:11g

Certification:CE,cULus,UKCA,DNV marine certification

Working temperature:0℃ ~ +70℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing

Built‑in function:Store controller application program, HMI project files, production recipe data, system configuration parameters, support local program backup and restore for B&R automation equipment, own lifetime monitoring function for storage medium status tracking.

Product Brief

5CFCRD.0128‑03 is original B&R 128 MB industrial Type‑I CompactFlash memory card, adopts industrial‑grade SLC flash particle, with high erase‑write endurance and stable anti‑interference performance, designed for long‑term 24‑hour continuous operation of industrial equipment.

This CF card is widely used for storing system runtime files, user application programs, HMI screen project, production recipes and equipment configuration parameters. It supports local program backup and one‑key restore, convenient for on‑site equipment maintenance and program version management, and can monitor flash service life in real‑time to remind medium replacement in advance.

It belongs to legacy EOL spare part, mainly for maintenance and renovation of old‑generation B&R Power Panel, PPC, APC and X20 series automation devices. Before purchase, please confirm host hardware slot and firmware version compatibility. ESD anti‑static protection must be done during installation, hot‑plugging under power‑on status is forbidden to avoid program and data damage.
