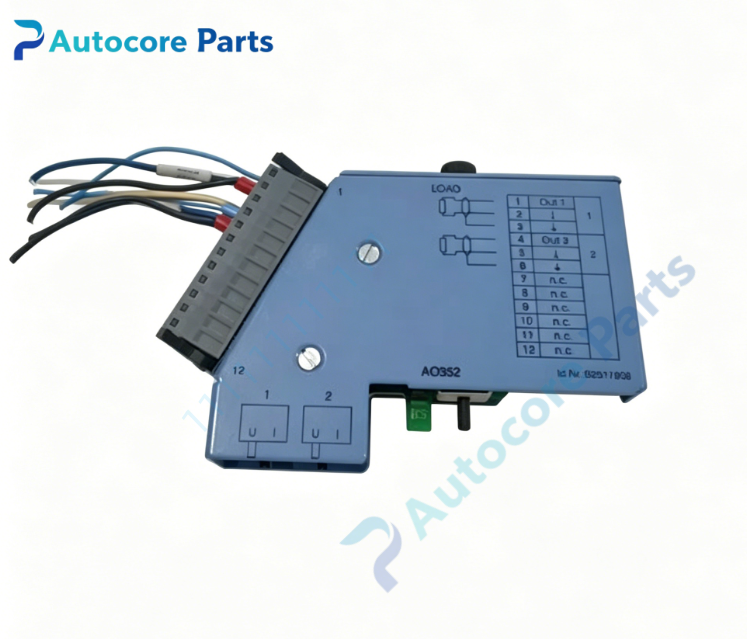

B&R 7AO352 Analog Output Module

Technical Specifications

Model:7AO352

Brand:B&R

Product Type:2003 series PLC analog output module

Applicable System:B&R 2003 series PLC system,applied for packaging machinery,automated assembly,process control equipment for analog actuator signal control

Power Supply:24VDC

Channel Quantity:2 independent analog output channels

Output Range:±10V voltage,0‑20mA current

Resolution:12‑bit

Isolation:Galvanic isolation between channel and backplane bus

Installation:Screw‑in compact module,plug into 2003 series backplane slot

Protection:Short‑circuit protection for each output channel

Degree of protection:IP20

Certification:CE,cULus

Working temperature:0℃ ~ +55℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Compact screw‑in analog output module converts digital bus signals to analog voltage or current signals for valve,actuator and transducer control. Galvanic isolation improves anti‑interference performance. Independent short‑circuit protection avoids module damage caused by field wiring fault. Supports hot‑swap replacement during equipment maintenance

Product Brief

7AO352 belongs to B&R 2003 series I/O module family,it provides two‑channel high‑precision analog output for PLC control system. Compact screw‑in structure makes installation and replacement convenient. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm PLC hardware version and slot matching requirement. ESD anti‑static protection shall be followed during installation
