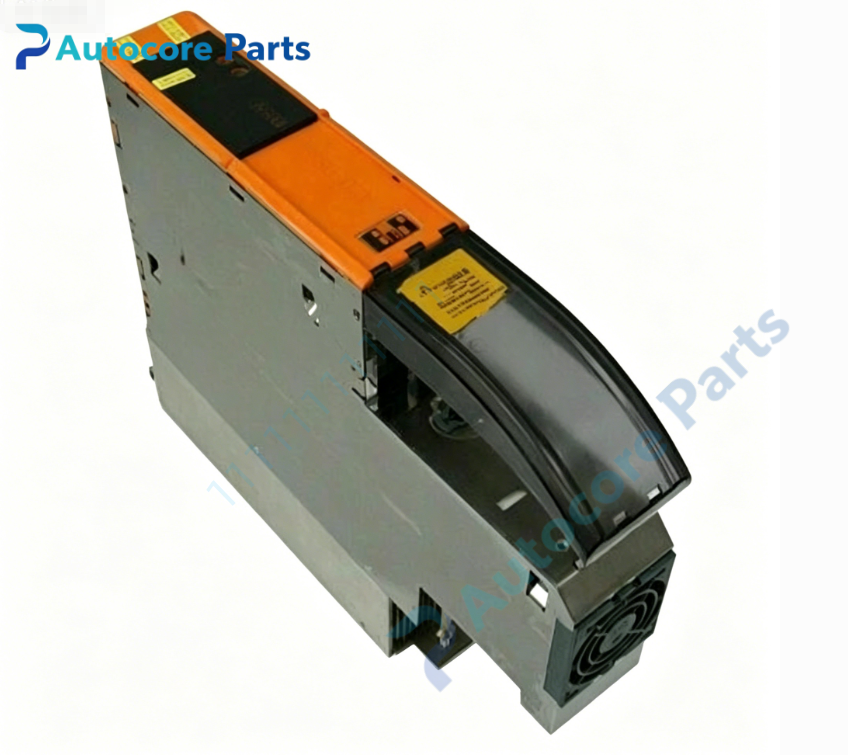

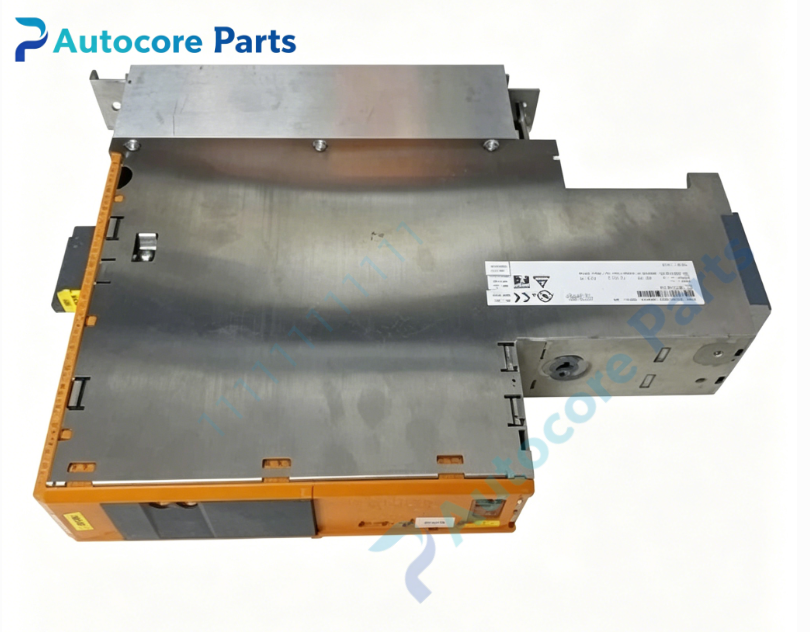

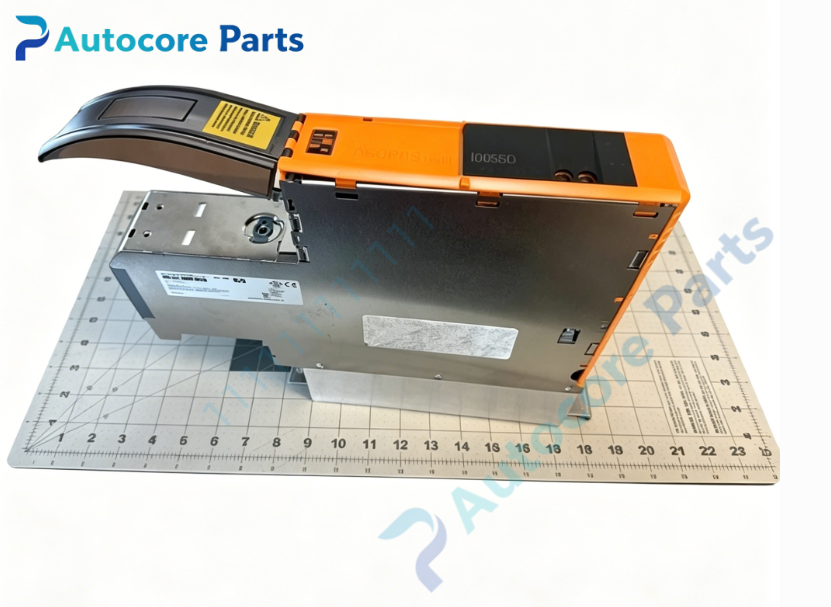

B&R 8BVI0055HWD0.000‑1 Inverter Module

Technical Specifications

Model:8BVI0055HWD0.000‑1

Brand:B&R

Product Type:ACOPOSmulti wall‑mount dual‑axis high‑current servo inverter module

Applicable System:B&R ACOPOSmulti multi‑axis servo system,machine tools,packaging machinery,material handling equipment,medium‑high‑load multi‑axis motion‑control production lines

DC‑bus:Nominal 750 VDC;DC‑bus capacitance 330 µF;continuous power consumption 11.19 kW

Output Rating:2 independent servo axes,7.6 A continuous current per axis;support short‑time peak current output;current derating required under high switching frequency and high altitude

Auxiliary Supply:24‑25 VDC auxiliary power input;max power consumption depends on expansion slot and brake peripheral load

Safety Function:Integrated STO Safe Torque‑Off functional safety,built‑in safe stop and uncontrolled stop functions

Expansion Hardware:2 internal slots for ACOPOSmulti plug‑in encoder and communication feedback modules,support resolver,EnDat and other feedback types

Built‑in Interface:Motor holding‑brake output and motor temperature‑sensor input for each axis

Network Feature:Support DNA dynamic node allocation,simplify multi‑axis system commissioning

Protection:Channel‑wise hardware protection for overload,short‑circuit and ground‑fault

Installation:Wall‑mount natural cooling;vertical hanging or upward horizontal mounting allowed;horizontal standing installation forbidden;power derating required above 500 m altitude,max altitude 4000 m

Status Indication:Multi‑color LED indicators for module ready status,running operation and fault diagnosis

Dimension:317 mm height ×53 mm width ×263 mm depth

Weight:2.90 kg

Degree of protection:IP20

Certification:CE,cULus,UKCA,KC certification

Working temperature:5℃ ~ +55℃;power derating for high ambient temperature and high altitude

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Wall‑mount dual‑axis inverter converts high‑voltage DC‑bus power into variable‑frequency three‑phase AC power to drive two servo motors independently. Integrated STO safety function satisfies machinery safety standard requirements. Dual expansion slots adapt multiple motor feedback signals. Reserved brake and temperature‑sensor interfaces simplify field‑side motor wiring. DNA dynamic node allocation shortens multi‑axis configuration cycle. Independent wall‑mount mechanical structure provides flexible cabinet layout without relying on system backplane. Comprehensive hardware protection improves equipment reliability against field wiring faults.

Product Brief

8BVI0055HWD0.000‑1 is high‑current wall‑mount dual‑axis inverter of B&R ACOPOSmulti servo family. Compared with 8BVI0028HWD0.000‑1,it increases per‑axis continuous current to 7.6A,suitable for multi‑axis machines equipped with medium‑high‑power servo motors.

Module connects to ACOPOSmulti power supply module via high‑voltage DC‑bus. Two internal expansion slots can be equipped with different feedback interface cards according to actual motor encoder type. Hardware STO safety circuit ensures safe torque‑off response under emergency‑stop and fault conditions. LED diagnostic lights support fast on‑site fault locating.

This is legacy spare part,widely used for maintenance and hardware replacement of old‑generation ACOPOSmulti multi‑axis motion‑control equipment. Before purchase,please confirm DC‑bus voltage,motor rated current,encoder feedback type. ESD anti‑static protection shall be performed during installation,hot‑swap under powered‑on state is prohibited. Terminal block accessories sold separately.
