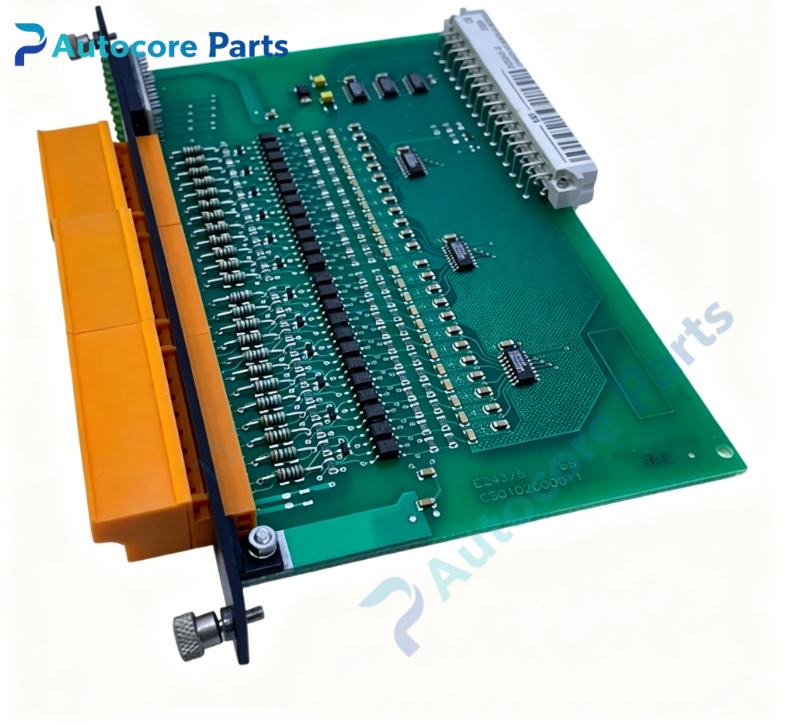

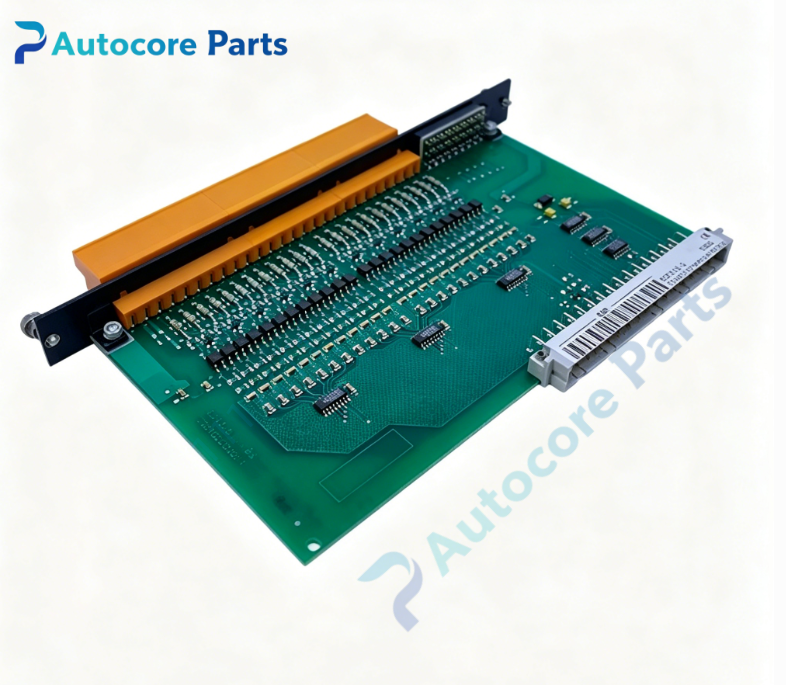

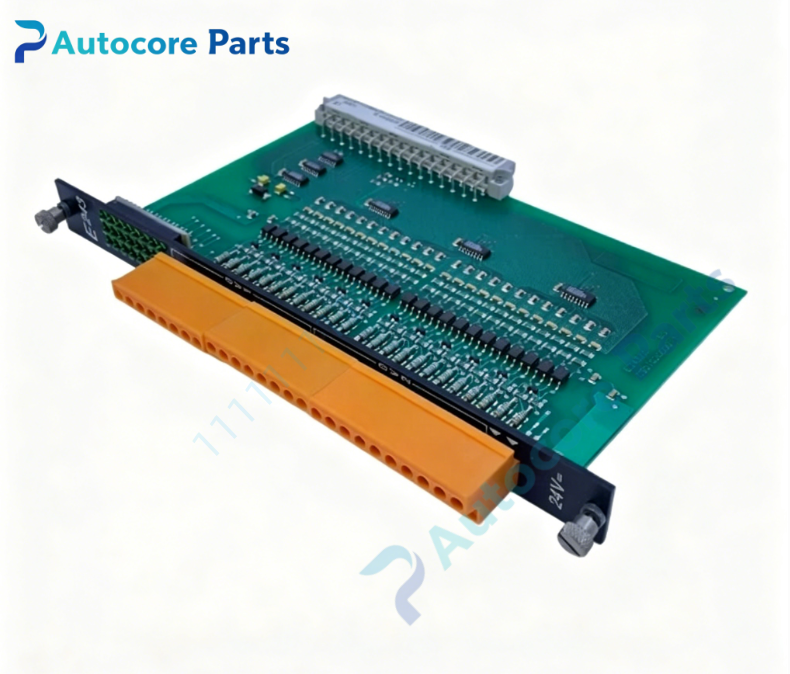

B&R ECE243‑0 Digital Input Module

Technical Specifications

Model:ECE243‑0

Brand:B&R

Product Type:MULTI‑CONTROL rack series digital input module

Applicable System:B&R Midi‑Multi‑Control rack system,applied for early‑generation packaging machinery,process equipment for proximity sensor and switch signal acquisition

Nominal Input Voltage:24VDC

Channel Quantity:24 digital input channels,divided into 2 electrically isolated groups

Input Mode:sink input

Response Delay:10ms

Isolation:optocoupler galvanic isolation for two input groups

Power Consumption:1.2W

Installation:Install in MULTI‑CONTROL rack slot

Degree of protection:IP20

Certification:CE,UL

Working temperature:0℃ ~ +55℃

Storage temperature:‑25℃ ~ +70℃

Relative humidity:5‑85% non‑condensing,pollution degree 2

Built‑in function:Rack‑mounted digital input module collects field sink‑type sensor and contact signals and transmits digital data to rack backplane bus. Two independent galvanic isolation groups reduce cross‑interference between field signals. On‑board LED status indicators support quick channel fault diagnosis,suitable for on‑site equipment signal acquisition

Product Brief

ECE243‑0 belongs to B&R MULTI‑CONTROL old‑generation I/O family,it is discontinued legacy spare part for early rack‑based control system. It provides 24‑channel 24VDC sink digital input. Widely used for original B&R old‑equipment maintenance and renovation. Before purchase,please confirm rack hardware version and slot compatibility requirement. ESD anti‑static protection shall be followed during installation
