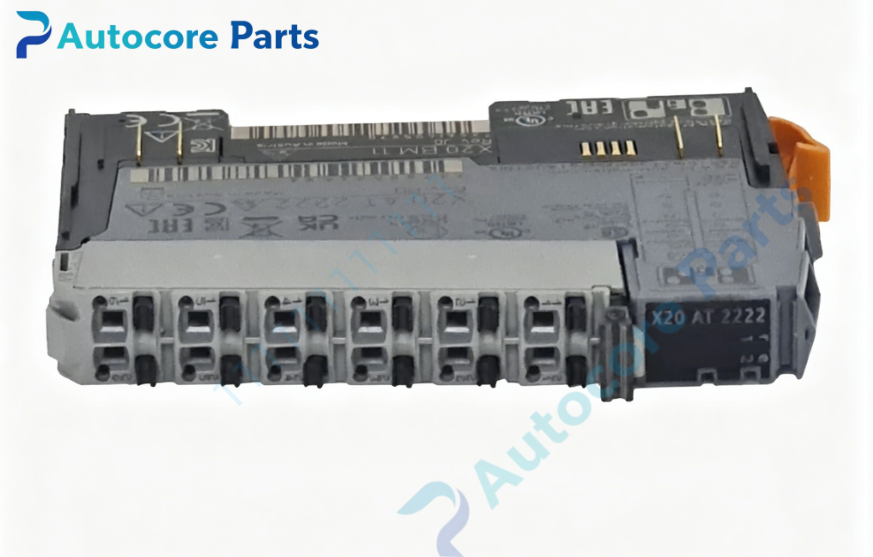

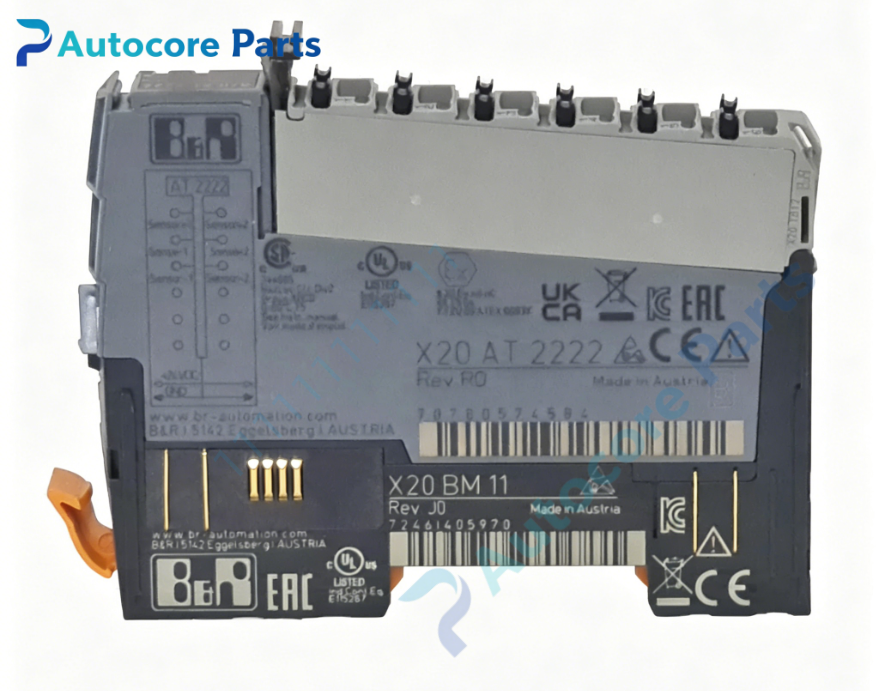

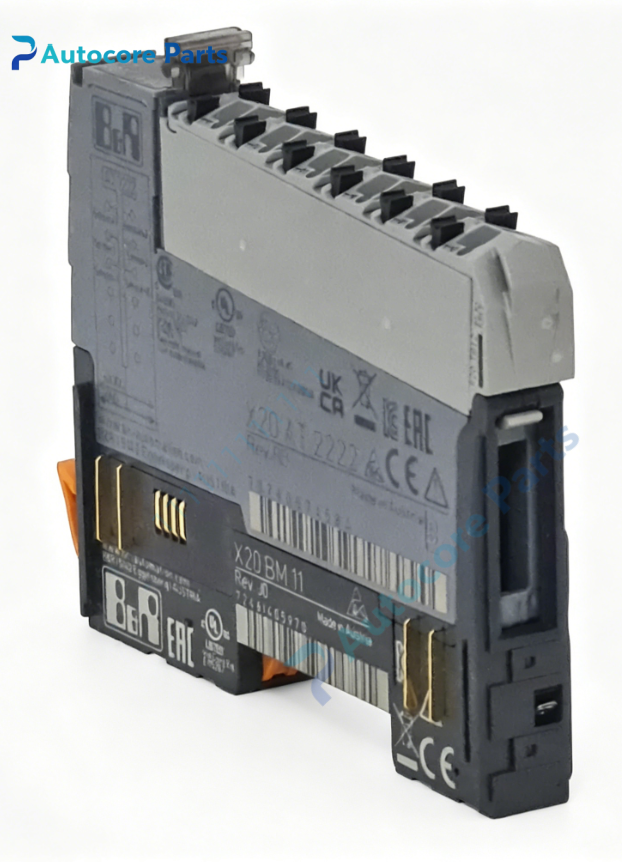

B&R X20AT2222 RTD Temperature Input Module

Model:X20AT2222

Brand:B&R

Product Type:X20 system RTD temperature measurement input module

Applicable System:B&R X20 PLC system,applied for packaging machinery,process automation equipment for thermal resistance temperature signal acquisition

Channel Quantity:2 independent RTD input channels

Supported Sensor:PT100,PT1000(EN60751)

Temperature Range:‑200℃ ~ +850℃

Resolution:16‑bit,0.1K

Wiring Mode:software configurable 2‑wire /3‑wire

Measurement Current:250µA ±1.25%

Resistance Measuring Range:0.1‑4500Ω

Filter:1st‑order low‑pass filter,configurable filter time

Isolation:500Veff between sensor side and system bus

Diagnosis:sensor open‑circuit detection,channel‑wise LED status indicator

Power Consumption:1.1W

Installation:Install on X20 backplane,matching X20BM11 bus module,X20TB06 or X20TB12 terminal block

Indicator:per‑channel diagnostic LED for status and fault alarm

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV marine certification

Working temperature:‑20℃ ~ +65℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:X20 series dedicated RTD temperature input module collects PT100 / PT1000 thermal resistance temperature signals. It supports 2‑wire or 3‑wire wiring mode via software parameter configuration. Built‑in sensor open‑circuit fault diagnosis function. LED indicators support fast on‑site channel status checking,supports hot‑swap replacement during equipment maintenance

Product Brief

X20AT2222 belongs to B&R X20 I/O module family,it is 2‑channel RTD temperature spare part for process temperature monitoring. Bus module and terminal block need to be ordered separately for field wiring. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm X20 hardware version and backplane compatibility requirement. ESD anti‑static protection shall be followed during installation
