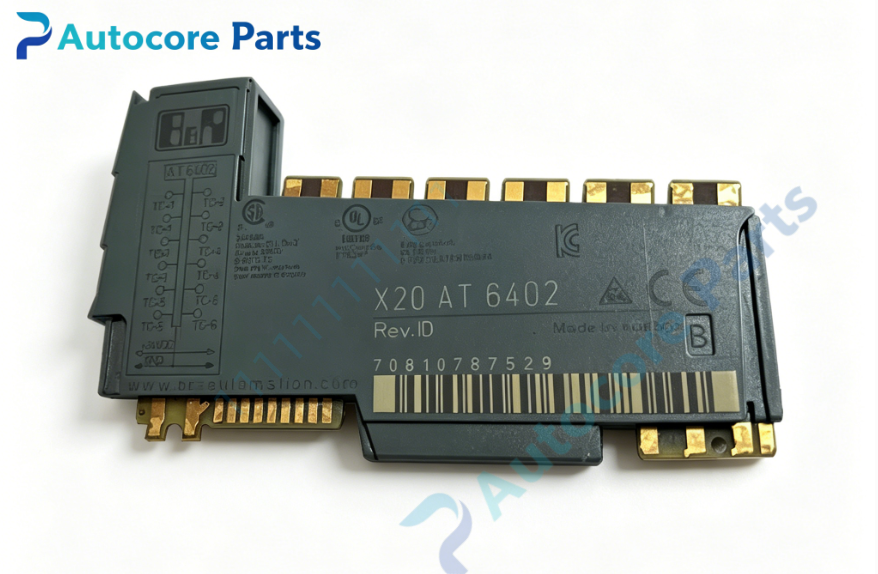

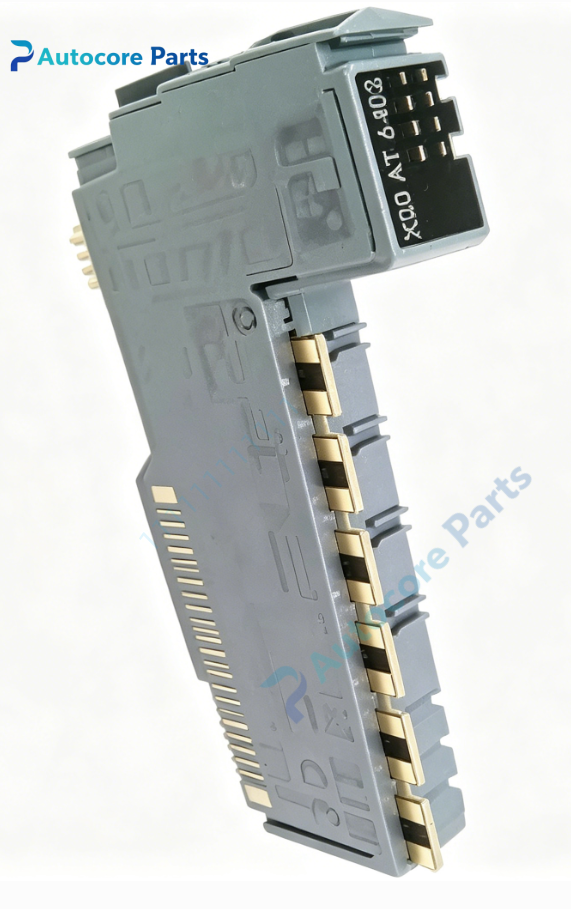

B&R X20AT6402 Thermocouple Temperature Input Module

Technical Specifications

Model:X20AT6402

Brand:B&R

Product Type:X20 system 6‑channel thermocouple temperature measurement input module

Applicable System:B&R X20 PLC system,applied for process automation equipment for multi‑point thermocouple temperature signal acquisition

Channel Quantity:6 differential thermocouple input channels

Supported Sensor:J,K,N,S,B,R thermocouple

Resolution:16‑bit,0.1℃

Cold‑junction Compensation:Integrated terminal cold‑junction compensation

Filter:1st‑order low‑pass filter,filter time 1ms‑66.7ms configurable

Isolation:channel‑bus isolation,no channel‑to‑channel isolation

Diagnosis:sensor open‑circuit detection,channel‑wise LED status indicator

Power Consumption:0.91 W

Installation:Install on X20 backplane,matching X20BM11 bus module and X20TB12 terminal block

Indicator:per‑channel diagnostic LED for status and fault alarm

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA

Working temperature:0℃ ~ +55℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:X20 series multi‑channel thermocouple temperature input module collects J,K,N,S,B‑R thermocouple temperature signals. Each channel supports independent sensor parameter configuration. Built‑in terminal cold‑junction compensation without external compensation box. Built‑in sensor open‑circuit fault diagnosis function. LED indicators support fast on‑site channel status checking,supports hot‑swap replacement during equipment maintenance

Product Brief

X20AT6402 belongs to B&R X20 I/O module family,it is six‑channel thermocouple temperature spare part. Bus module and terminal block need to be ordered separately for field wiring. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm X20 hardware version and backplane compatibility requirement. ESD anti‑static protection shall be followed during installation
