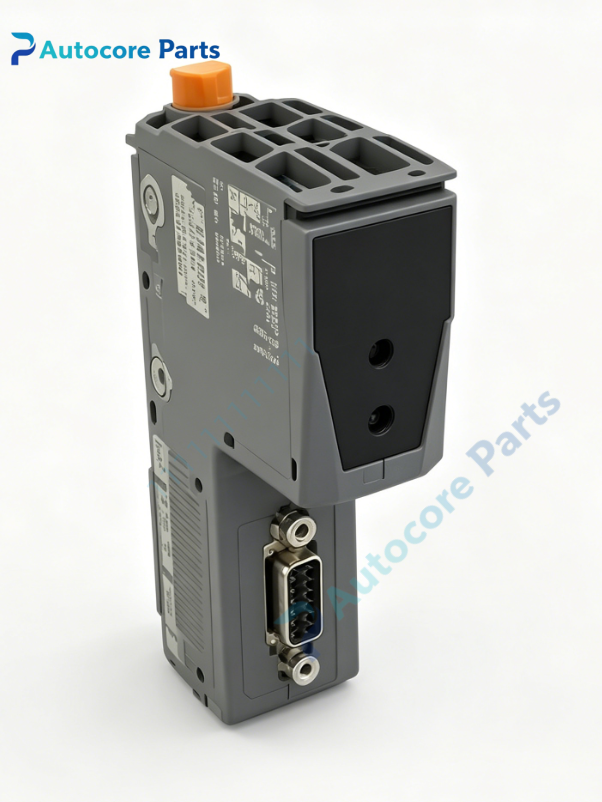

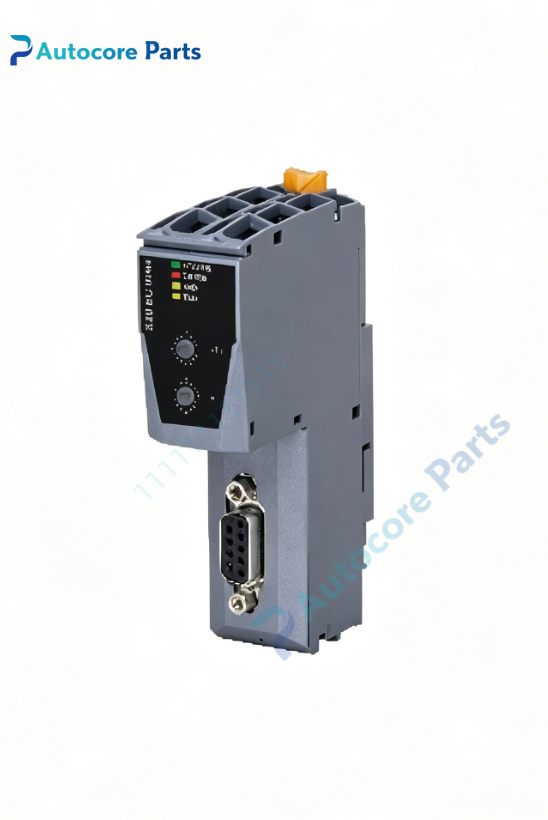

B&R X20BC0063 Bus Controller Module

Technical Specifications

Model:X20BC0063

Brand:B&R

Product Type:X20 system bus controller module

Applicable System:B&R X20 PLC system,used for distributed X20 I/O station communication connection

Bus Interface:X20 internal backplane bus

External Interface:Fieldbus communication interface

Power Consumption:1.2 W

Installation:Install on X20BBxx bus base module

Indicator:Status LED for bus communication and fault diagnosis

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA

Working temperature:‑20℃ ~ +65℃

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function:

X20BC0063 bus controller module realizes data interaction between upper‑level controller and distributed X20 I/O stations. It completes X20 backplane bus signal processing,provides communication status indication via LED,supports hot‑swap replacement for on‑site equipment maintenance.

Product Brief

X20BC0063 belongs to B&R X20 I/O system family,it is bus controller for distributed X20 remote I/O stations. Must work with X20BB series bus base module. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm host controller compatibility. ESD anti‑static protection shall be followed during installation
