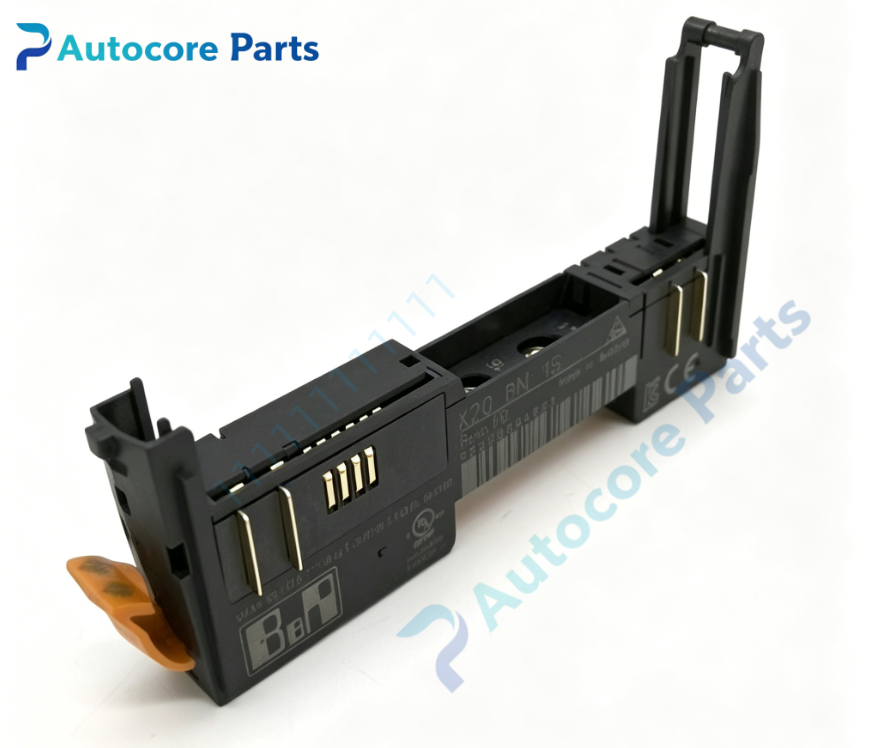

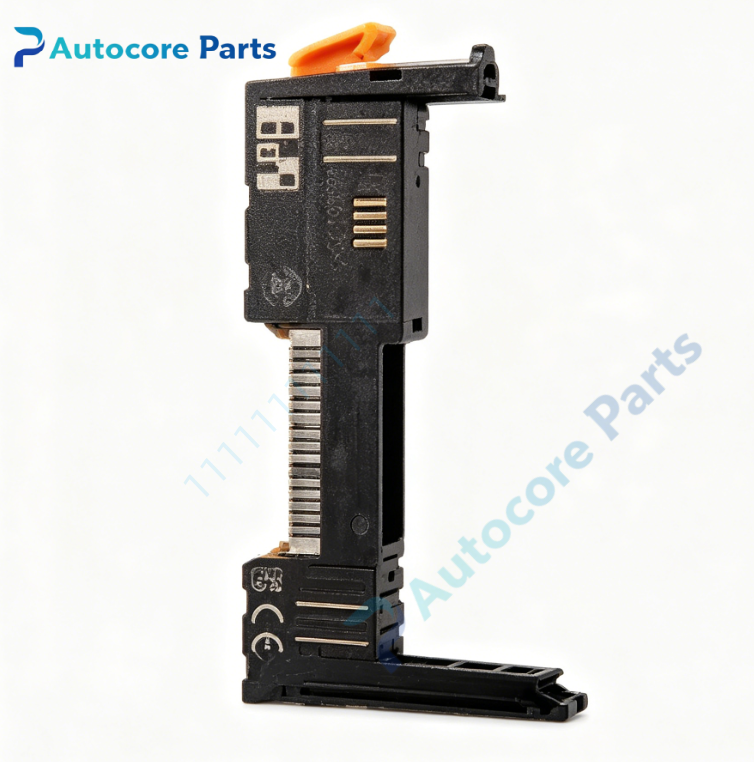

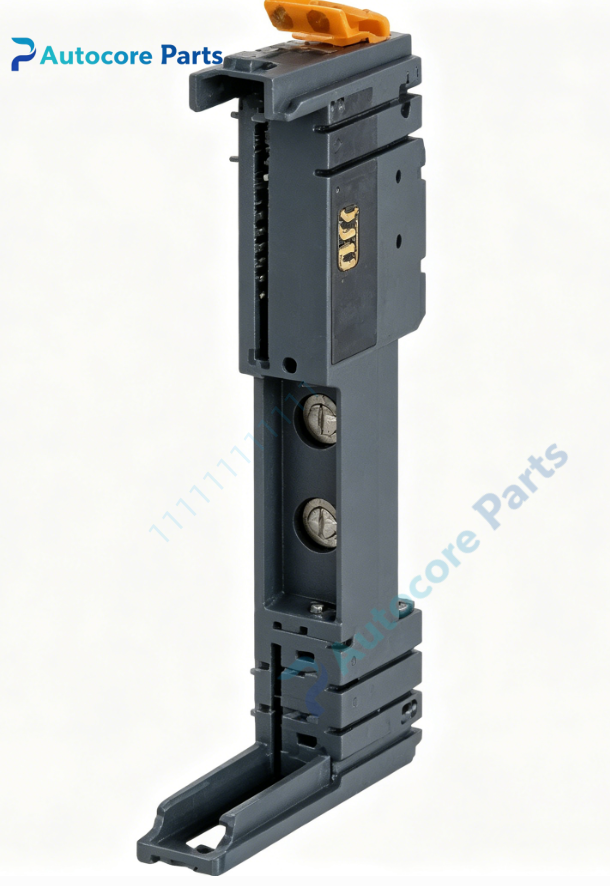

B&R X20BM15 Bus Module

Technical Specifications

Model:X20BM15

Brand:B&R

Product Type:X20 system bus module with node number switch

Applicable System:B&R X20 PLC system,base carrier for 24VDC X20 I/O modules with manual node address setting

Nominal I/O Voltage:24 VDC

Permissible Contact Load:10 A

Power Consumption:0.13 W

Feature:Keyed mechanical connector,manual node number switch,internal I/O power supply continuous pass‑through

Installation:DIN rail mounting

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV,CCS,LR,ABS,BV marine certification

Working temperature:‑25℃ ~ +60℃(horizontal mounting),‑25℃ ~ +50℃(vertical mounting)

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function

X20BM15 is standard bus base module equipped with manual node number switch for remote X2X‑Link I/O station address assignment. Internal I/O power supply passes through without interruption. Keyed structure prevents wrong module insertion,supports hot‑swap I/O module replacement during equipment maintenance.

Product Brief

X20BM15 belongs to B&R X20 system accessory family,it is mainly used for distributed remote I/O stations which require manual node address setting. Need to match X20TB series terminal blocks for field wiring. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm node address setting requirement. ESD anti‑static protection shall be followed during installation今天 09:06
