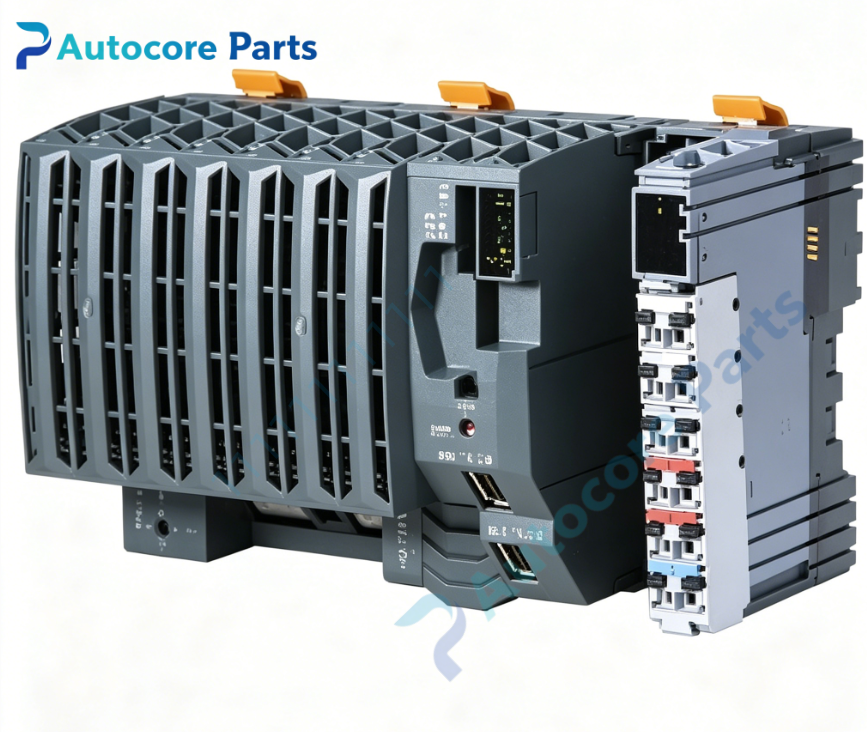

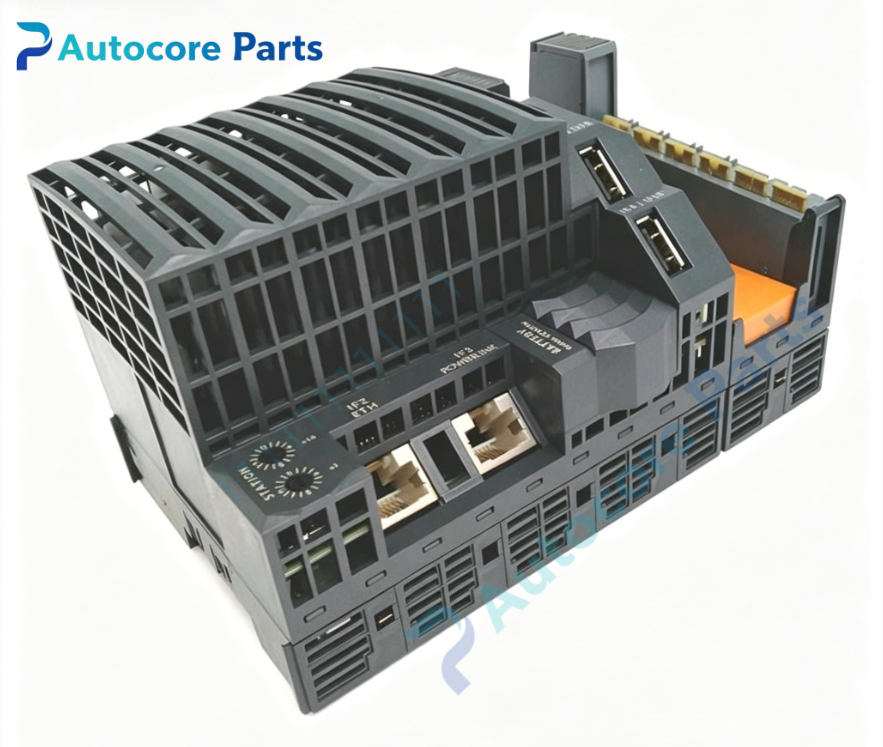

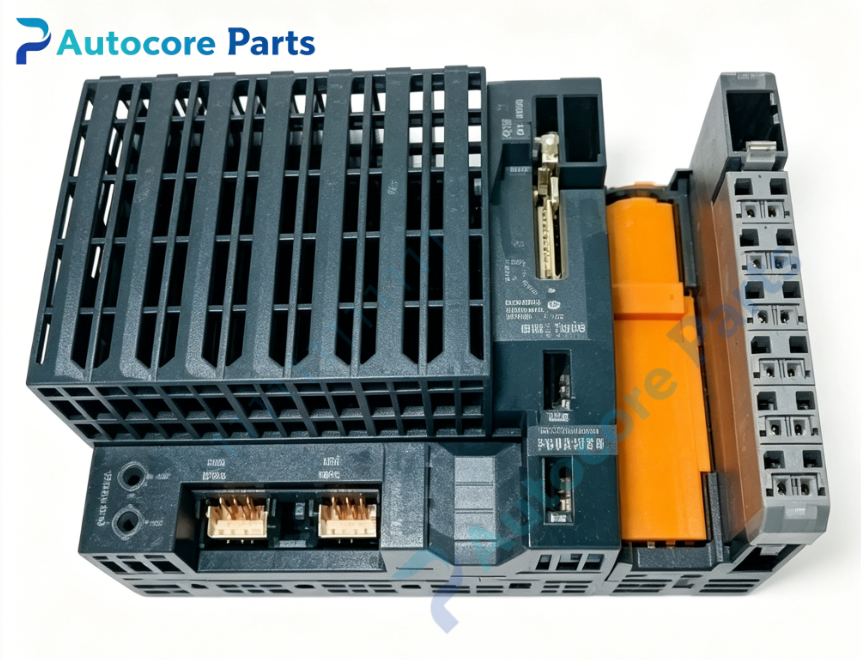

B&R X20CP1485 CPU Controller Module

Technical Specifications

Model:X20CP1485

Brand:B&R

Product Type:X20 system high‑performance x86 CPU controller module

Applicable System:B&R X20 PLC system,applied for high‑end machine automation,POWERLINK real‑time multi‑axis motion control

Processor:Celeron 400,floating‑point unit FPU,additional I/O processor

SDRAM:32 MB

User SRAM:1 MB

Storage:CompactFlash card slot for application memory

Real‑Time Clock:battery‑buffered real‑time clock,lithium battery(min 3 years service life)

Communication Interface:1×10/100BASE‑T Ethernet,POWERLINK V1/V2,RS232,2×USB,1×X2X‑Link,1 slot for optional X20IF interface module

Shortest Task Cycle:400 µs

Power Consumption:7 W(without CF‑card,interface module and USB load)

Installation:Install on X20BB80 bus base module,terminal block and right end cover included in delivery

Indicator:Multi‑color LED for CPU,Ethernet,POWERLINK,CompactFlash,battery,overtemperature status diagnosis

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV,CCS,LR,ABS,BV marine certification

Working temperature:‑25℃ ~ +60℃(horizontal mounting),‑25℃ ~ +50℃(vertical mounting)

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function

X20CP1485 fanless CPU executes IEC61131‑3 user control program,supports high‑performance POWERLINK real‑time multi‑axis motion control for ACOPOS servo drives. CompactFlash slot supports convenient program backup and migration. Single expansion slot supports additional communication interface modules. Lithium battery buffers real‑time clock and remanent variables,multi‑color LED indicators realize fast on‑site fault diagnosis,support local X20 I/O and distributed X2X‑Link remote stations.

Product Brief

X20CP1485 belongs to B&R X20 I/O system family,it is fanless x86 controller based on Celeron 400 processor for high‑performance automation equipment. CompactFlash memory card needs to be ordered separately. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please verify memory requirement and interface compatibility. ESD anti‑static protection shall be followed during installation
