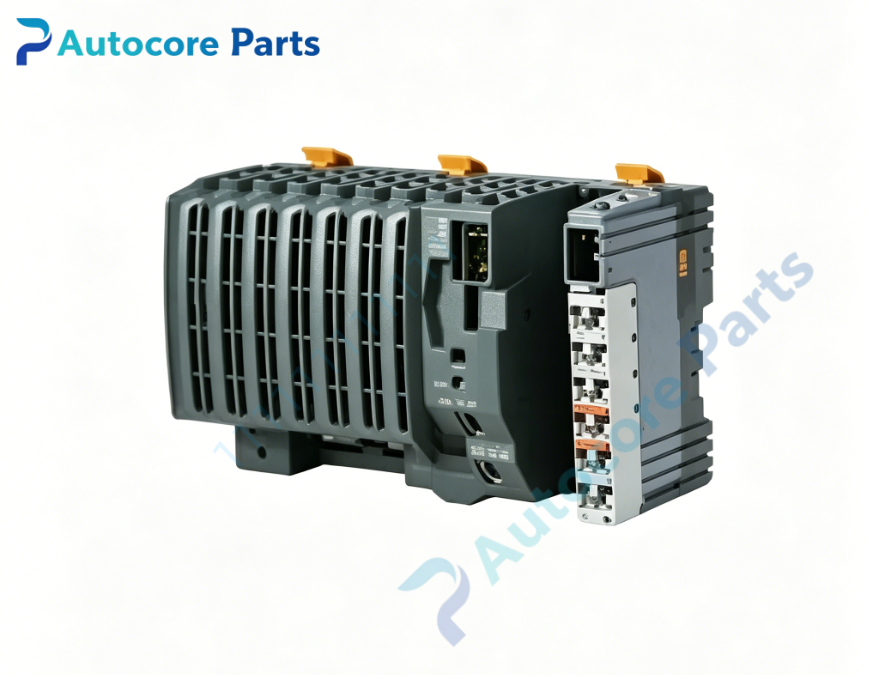

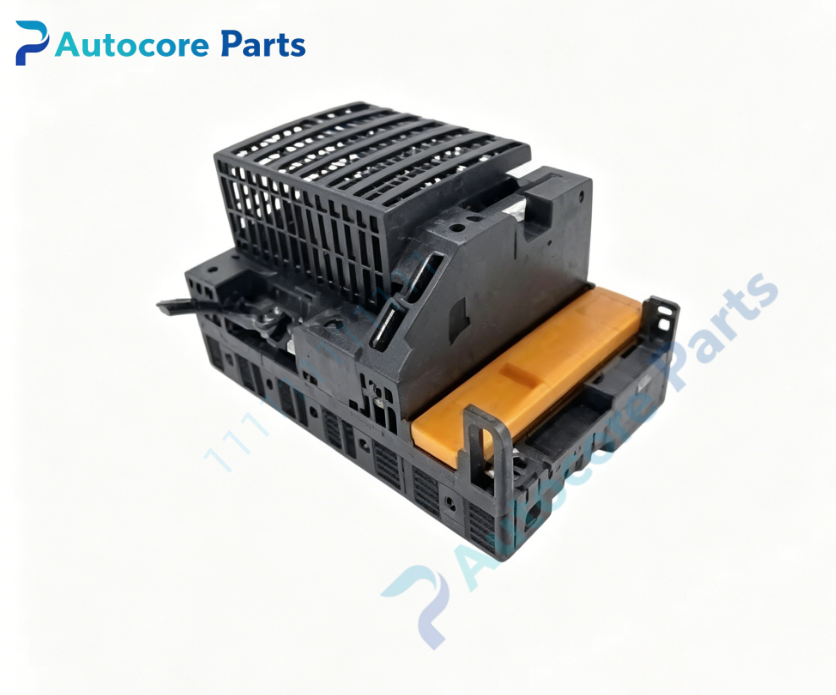

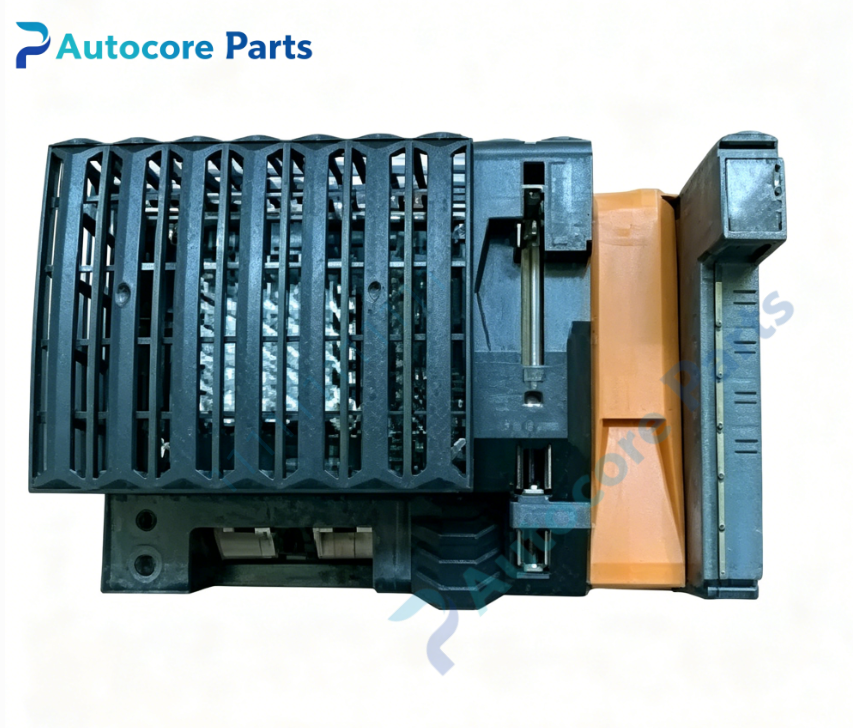

B&R X20CP1584 CPU Controller Module

Technical Specifications

Model:X20CP1584

Brand:B&R

Product Type:X20 system high‑performance Atom‑based CPU controller module

Applicable System:B&R X20 PLC system,applied for medium‑high‑end machine automation,POWERLINK multi‑axis real‑time motion control

Processor:Intel Atom E620T 600MHz,floating‑point unit FPU,24kB L1 data cache,32kB L1 program cache,512kB L2 cache,integrated background I/O processor

SDRAM:256 MB DDR2

User SRAM:1 MB

Remanent Variables:Max 256 kB

Storage:CompactFlash card slot for application memory

Real‑Time Clock:battery‑buffered real‑time clock,lithium battery(min 2 years service life at 23℃)

Communication Interface:1×10/100/1000BASE‑T Gigabit Ethernet,POWERLINK V1/V2 support PRC,RS232,2×USB2.0,1×X2X‑Link,1 slot for optional X20IF interface module

Shortest Task Cycle:400 µs

Power Consumption:8.6 W(without CF‑card,interface module and USB load),1.42 W for X2X‑Link power supply

Power Supply Input:24 VDC(-15% / +20%),max 1.5A input current,reverse polarity protection

Installation:Install on X20BB80 bus base module,terminal block and right end cover included in delivery

Indicator:Multi‑color LED for CPU,Gigabit Ethernet,POWERLINK,CompactFlash,battery,overload status diagnosis

Degree of protection:IP20

Certification:CE,cUL‑us,ATEX Zone2,UKCA,DNV,CCS,LR,ABS,BV marine certification,KC

Working temperature:‑25℃ ~ +60℃(horizontal mounting),‑25℃ ~ +50℃(vertical mounting)

Storage temperature:‑40℃ ~ +85℃

Relative humidity:5‑95% non‑condensing,pollution degree 2

Built‑in function

X20CP1584 fanless Atom CPU executes IEC61131‑3 user control program,supports PRC high‑efficiency POWERLINK real‑time multi‑axis motion control for ACOPOS servo drives. Gigabit Ethernet improves general network communication performance. CompactFlash slot supports convenient program backup and migration. Single expansion slot supports additional communication interface modules. Lithium battery buffers real‑time clock and remanent variables,multi‑color LED indicators realize fast on‑site fault diagnosis,support local X20 I/O and distributed X2X‑Link remote stations,X2X‑Link power supply supports redundant parallel operation.

Product Brief

X20CP1584 belongs to B&R X20 I/O system family,it is fanless Atom‑architecture controller for medium‑high‑performance automation equipment. CompactFlash memory card needs to be ordered separately. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please verify memory requirement and interface compatibility. ESD anti‑static protection shall be followed during installation
