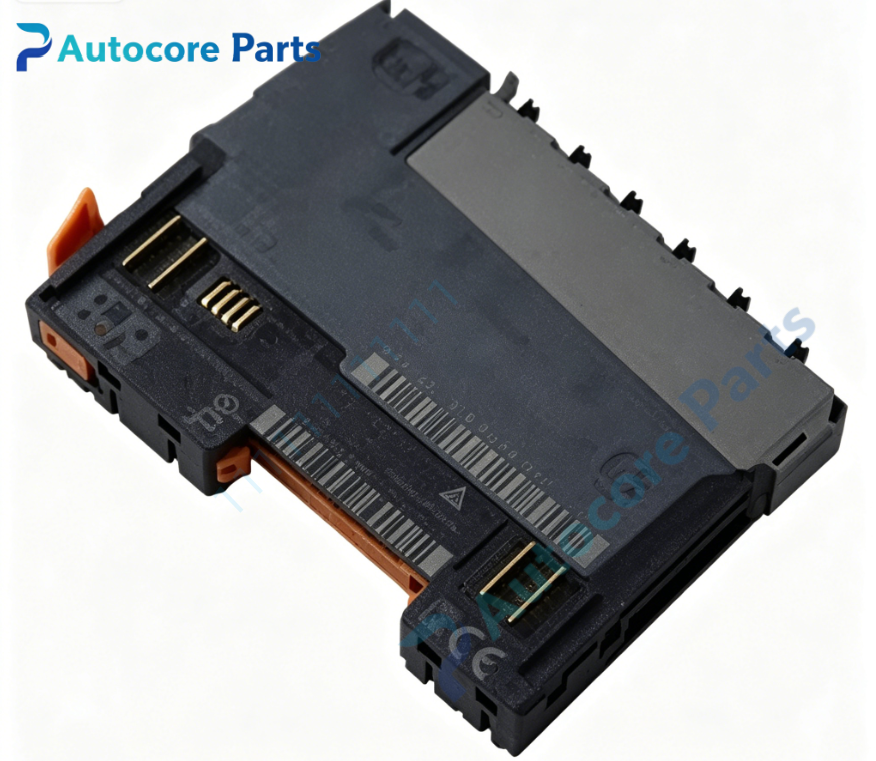

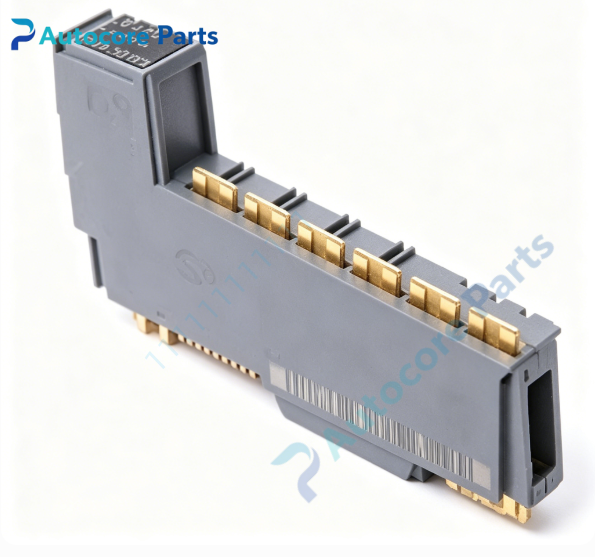

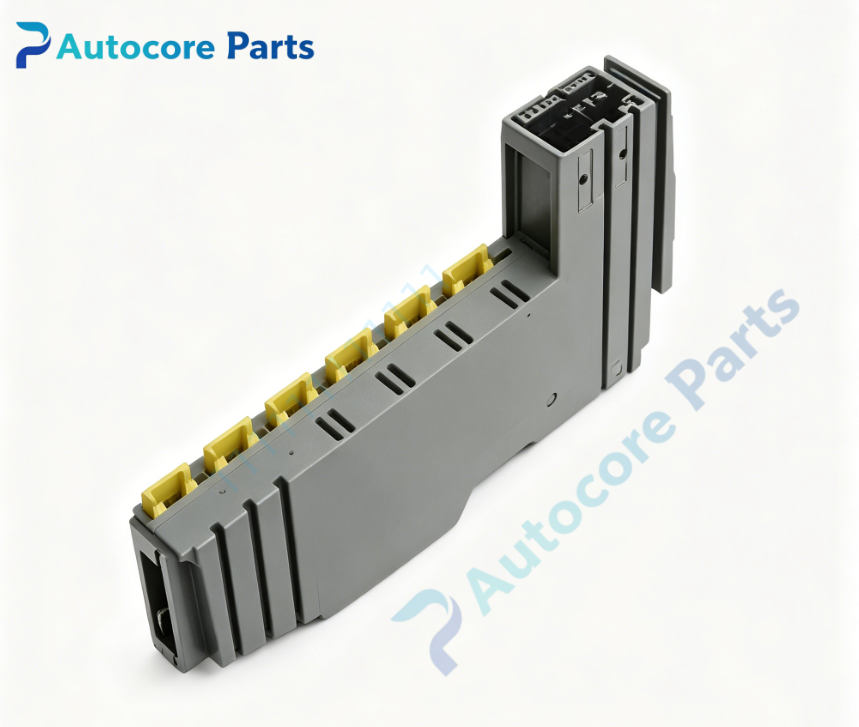

B&R X20DC4395 Multi‑Function Counter Module

Technical Specifications

Model:X20DC4395

Brand:B&R

Encoder interface:2‑channel SSI absolute,2‑channel ABR,4‑channel AB incremental,24VDC signal level

Max input frequency:100kHz

Counter function:8 event counters,16/32‑bit counter,time measurement,timestamp function

PWM output:4‑channel 24VDC push‑pull output,0.1A per channel,short‑circuit protection

Galvanic isolation:500Veff isolation between encoder channel and system bus

Encoder supply:24VDC encoder power output

Power consumption:0.01W for bus logic,1.5W for I/O circuit

Installation:Works with X20BM11 bus module,X20TB12 terminal block sold separately

Protection class:IP20

Horizontal operating temperature:‑25℃ ~ +60℃

Vertical operating temperature:‑25℃ ~ +50℃

Storage temperature:‑40℃ ~ +85℃

Built‑in function

X20DC4395 multi‑function counter module supports mixed configuration of SSI absolute encoder and 24VDC incremental encoders for X20 control system. It integrates event counting and PWM signal generation,realizes position acquisition,time measurement and pulse output in single module. 500Veff galvanic isolation enhances anti‑interference performance. Supports local X20 I/O and distributed X2X‑Link remote stations deployment.

Product Brief

X20DC4395 belongs to B&R X20 I/O system family,it is universal multi‑function counter module for complex motion measurement applications. X20BM11 bus module and X20TB12 terminal block need to be ordered separately. Shielded cables are required for encoder wiring. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please verify encoder type and function configuration requirement. ESD anti‑static protection shall be followed during installation
