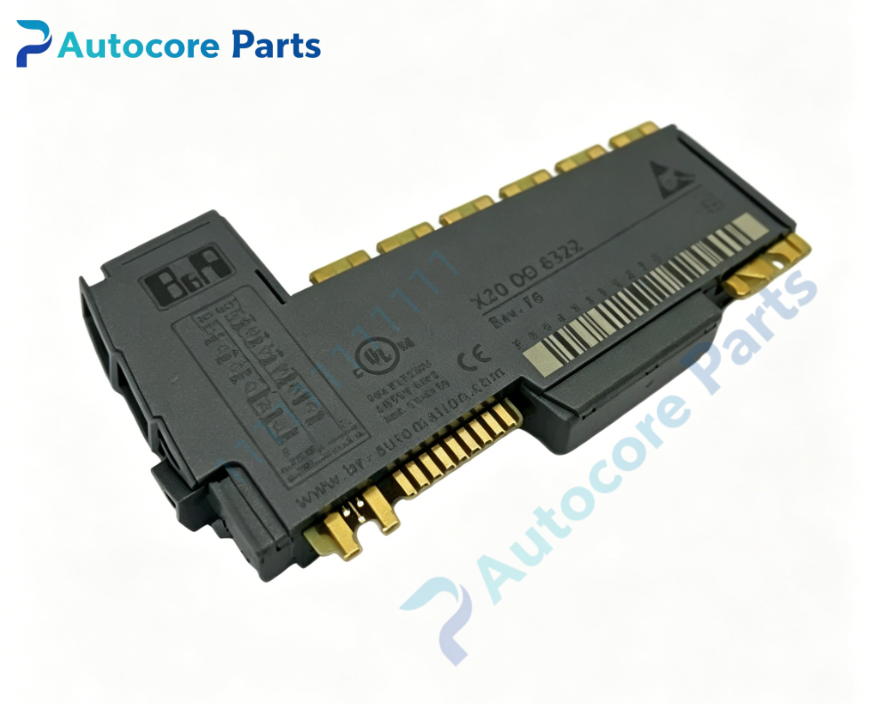

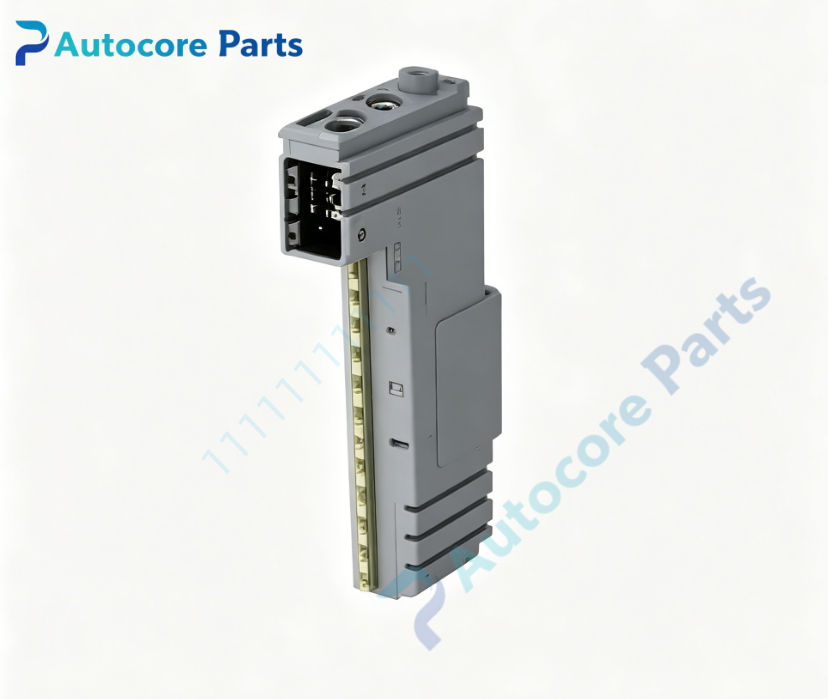

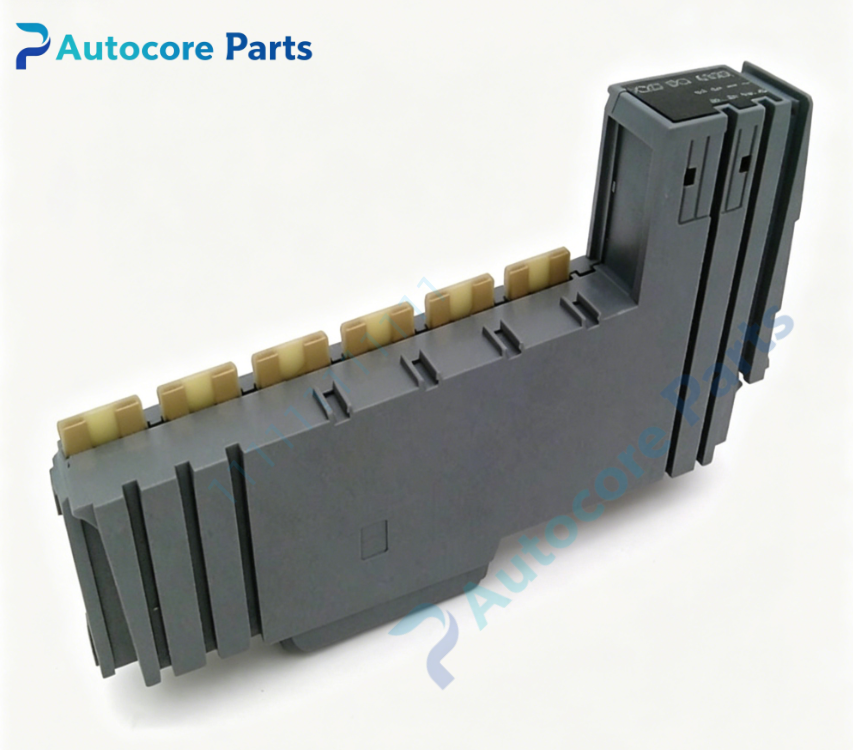

B&R X20DO6322 Digital Output Module

Technical Specifications

Model:X20DO6322

Brand:B&R

Output channel:6‑channel digital output

Output type:Source PNP FET

Rated voltage:24VDC(-15% / +20%)

Per‑channel current:0.5A

Total nominal current:3A

Connection:1‑wire or 2‑wire connection

Max resistive switching frequency:500Hz

Protection:thermal shutdown for short‑circuit / overload,integrated freewheeling diode for inductive load

Galvanic isolation:Channel‑bus galvanic isolation,channels non‑mutual isolation

Power consumption:0.18W(bus logic),0.71W(I/O circuit)

Protection class:IP20

Horizontal operating temperature:‑25℃ ~ +60℃

Vertical operating temperature:‑25℃ ~ +50℃

Storage temperature:‑40℃ ~ +85℃

Built‑in function

X20DO6322 digital output module drives solenoid valves,contactors and indicator lights for X20 control system. Flexible 1‑wire / 2‑wire wiring adapts to different cabinet layout requirements. Thermal overload protection and built‑in freewheeling diode improve reliability for inductive loads. Supports local X20 I/O stations and distributed X2X‑Link remote stations deployment.

Product Brief

X20DO6322 belongs to B&R X20 I/O system family,it is compact 6‑channel source digital output module. Coated variant X20cDO6322 is available for harsh environment. X20BM15 bus module and X20TB06 / X20TB12 terminal block need to be ordered separately. Widely used for original B&R automation equipment maintenance and renovation. Before purchase,please confirm wiring mode and load requirement. ESD anti‑static protection shall be followed during installation
