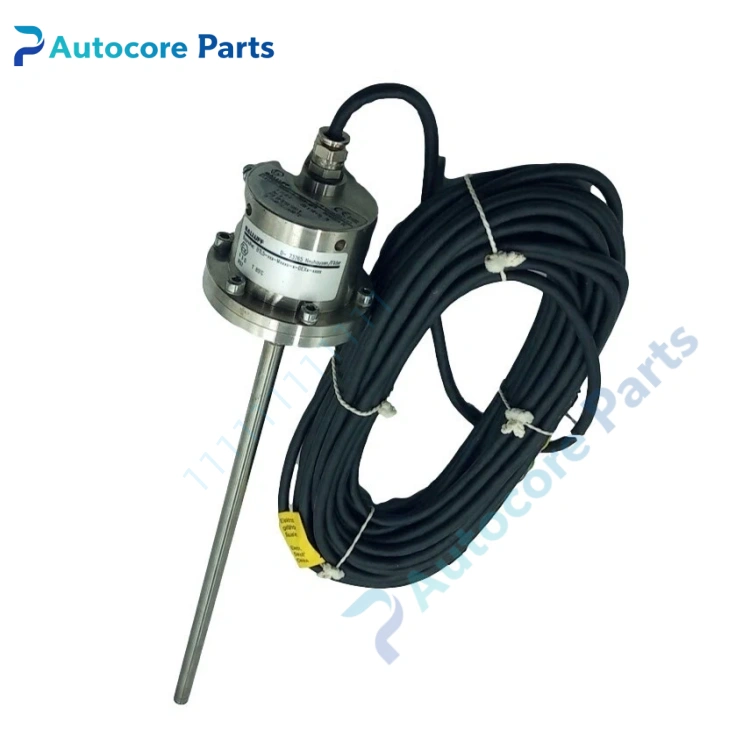

Balluff BTL5-E17-M0225-B-DEXB-KA15 Linear Position Transducer

Feature & Principle

It is Balluff Micropulse BTL5 series rod magnetostrictive linear position sensor. It works based on magnetostrictive principle. The moving floating magnet is connected with the moving part of equipment. The sensor detects the time difference of elastic wave transmission to calculate the absolute position of the magnet. Non-contact detection, no mechanical friction and wear, long service life. DEXB digital signal output, strong anti-interference, can directly communicate with PLC for real-time position acquisition and closed-loop control.

Specifications

Model: BTL5-E17-M0225-B-DEXB-KA15 Brand: Balluff Series: BTL5 Micropulse Measuring range: 225 mm Structure: Rod type, for built-in hydraulic cylinder Output: DEXB digital interface Power supply: 24VDC Protection class: IP67 Resolution: High precision micron level Trigger: Passive position magnet (separate) Mounting: Built into hydraulic cylinder Application: Injection molding machine, hydraulic press, metallurgical cylinder, servo hydraulic system Certification: CE

Components & Diagnostics

Stainless steel waveguide rod, electronic processing head, sealing assembly, connector. Common faults: signal loss, position jumping, connector water ingress, internal waveguide damage.

Product Brief

BTL5-E17-M0225-B-DEXB-KA15 magnetostrictive displacement sensor, Balluff hydraulic position measuring spare widely used for injection and hydraulic equipment overhaul and replacement.
