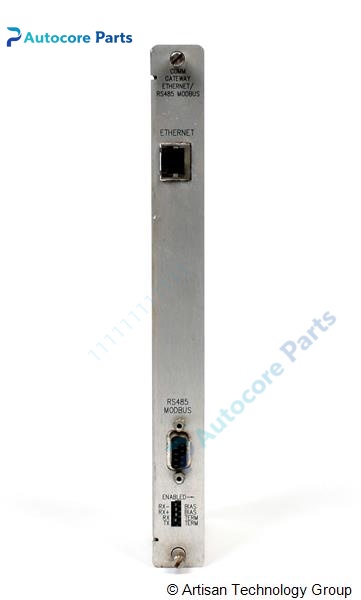

Bently Nevada 136188‑02 Ethernet / RS485 Modbus I/O Module

Technical Specifications

Model: 136188‑02

Brand: Bently Nevada

Product Type: Ethernet / RS485 Modbus I/O sub‑module

Matching Main Module: 3500/92 communication gateway (136180‑01)

Interface: 10BASE‑T RJ45 Ethernet port, RS485 serial port

Supported Protocol: Modbus TCP, Modbus RTU

Power Consumption: 5.6 W,supplied by 3500/92 main board

System Compatibility: Bently Nevada 3500 machinery protection rack

Installation: Plug‑in sub‑board installed on 3500/92 gateway

Module Form: Full‑height plug‑in daughter board

Weight: 0.82 kg

Dimension: 241 mm×24.4 mm×242 mm

Protection Grade: IP20

Certification: UL,CSA,CE

Working Temperature: ‑30℃ ~ +65℃,non‑condensing

Storage Temperature: ‑40℃ ~ +85℃

Humidity: 5%‑95% non‑condensing

Application: Turbine,compressor,pump,fans rotating machinery monitoring,realize data interaction between 3500 rack and DCS / PLC system,maintenance and spare‑part replacement.

Product Details

136188‑02 is a communication expansion sub‑module for Bently Nevada 3500/92 communication gateway. It can not work independently and must be inserted into the slot of 3500/92 main gateway board (136180‑01).

It provides Ethernet and RS485 physical interfaces,supports Modbus TCP and Modbus RTU protocols. It uploads real‑time measurement values,alarm status and event data of 3500 rack to external DCS or PLC control system. RS485 bus supports multi‑drop field wiring with strong anti‑interference capability for long‑distance transmission. It realizes standard industrial interconnection for TSI machinery protection system.

Compare with 136188‑01 which is Ethernet / RS232 version.

Note: This is legacy 3500 series spare component,widely used for replacement of turbine and compressor TSI monitoring & protection systems.
