Bently Nevada 136719‑01 Earthing I/O Module

Technical Specifications

Model:136719‑01

Brand:Bently Nevada

Product Type:Earthing I/O sub‑board

Matching Front‑panel:3500/04 internal barrier monitor module

Function:Provide dedicated grounding path for 3500/04 intrinsic safety barrier,support hazardous‑area proximity probe input

Signal Interface:field sensor wiring terminals,backplane high‑density connector for rack communication

Installation:Half‑height rear I/O daughter‑board,install behind 3500/04 front‑panel

Certification:Intrinsically‑safe related certification,UL,CSA,CE

Remark:Cannot be used alone;must work paired with 3500/04 monitor front‑panel;for hazardous location sensor loop

Module Form:Half‑height rack‑mount rear I/O sub‑board

Weight:0.45 kg

Dimension:242 mm×12.2 mm×242 mm

Protection Grade:IP20

Working Temperature:‑30℃ ~ +65℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Steam turbine,gas turbine,compressor TSI machinery protection system,support intrinsically‑safe sensor wiring for hazardous zone,system maintenance and spare‑part replacement.

Product Details

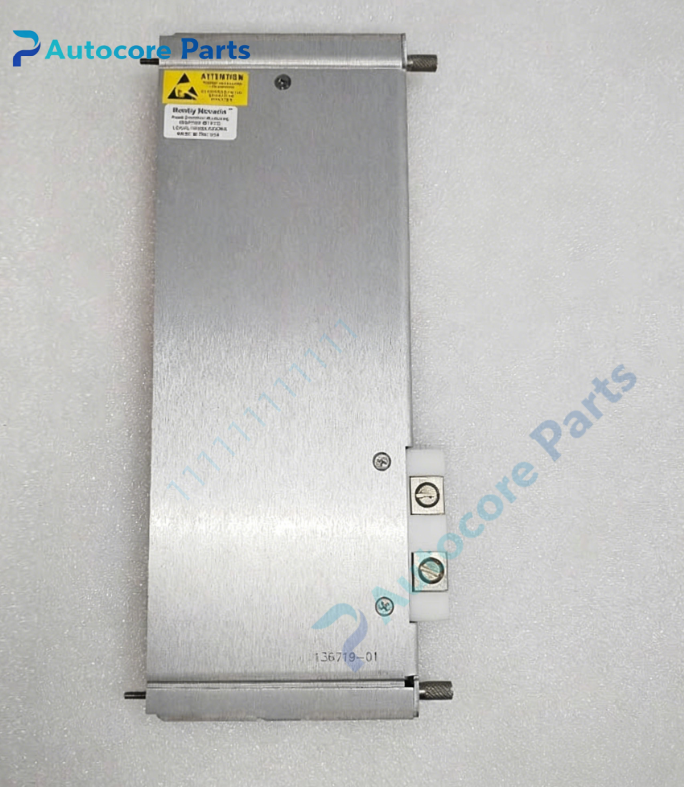

136719‑01 is earthing I/O sub‑board for Bently Nevada 3500/04 internal barrier monitor module,must be matched with 3500/04 front‑panel,cannot operate independently.

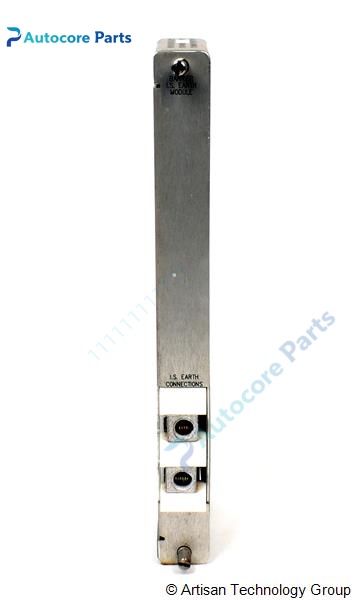

It provides special grounding path for 3500/04 intrinsic safety barrier circuit. It is used when proximity probes are installed in hazardous explosive area,realize intrinsically‑safe isolation and grounding protection for field sensor signals. Field sensors connect to terminals on this I/O sub‑board,communicate with monitor front‑panel via rack backplane connector.

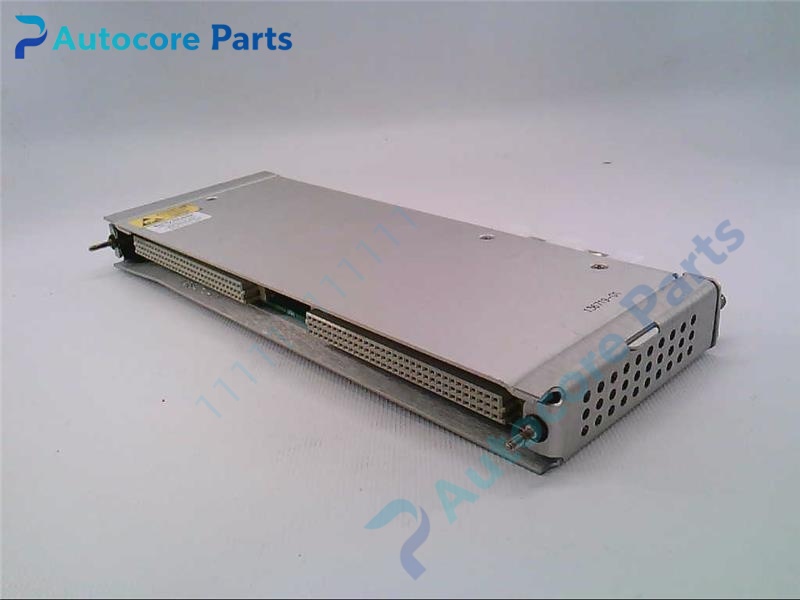

This is half‑height rear daughter‑board,fits behind 3500/04 slot. Widely used for TSI monitoring loops where rotating machinery locate in hazardous classified area.

Note:This is legacy EOL spare component,widely used for replacement of turbine and compressor TSI monitoring & protection systems.
