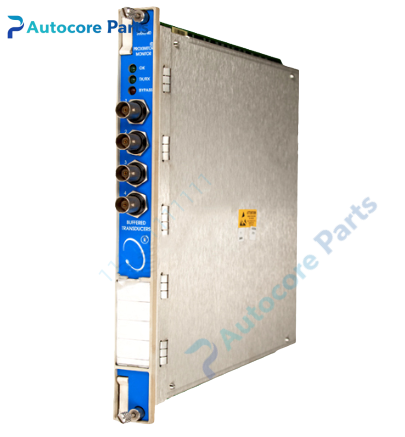

Bently Nevada 3500/40M 176449‑01 Proximitor Monitor Module

Technical Specifications

Model:3500/40M 176449‑01

Brand:Bently Nevada

Product Type:4‑channel proximitor monitor front‑panel module

Mainboard PN:176449‑01

Matching I/O Sub‑board:125680‑01(internal terminal),126646‑01(external terminal)

Input Channel:Max 4 proximity transducer input channels

Supported Sensor:eddy‑current proximity probe

Transducer Power:‑24 Vdc

Input Impedance:10 kΩ(standard);50 kΩ(TMR bus mode)

Sensitivity:

Radial Vibration / Thrust / Eccentricity:3.94 mV/μm(100 mV/mil),7.87 mV/μm(200 mV/mil)

Differential Expansion:0.394 mV/μm(10 mV/mil),0.787 mV/μm(20 mV/mil)

REBAM:40 mV/μm(1000 mV/mil),80 mV/μm(2000 mV/mil)

Frequency Response:0‑12000 Hz

Measurement Accuracy:±0.33%FS

Supported Function:radial vibration,thrust position,differential expansion,eccentricity,REBAM bearing analysis

Power Consumption:7.7 W typical,supplied by 3500 rack backplane

Front‑panel LED:OK,TX/RX,Bypass

System Compatibility:Bently Nevada 3500 machinery protection rack

Remark:Channels configured in pairs;support alert / danger alarm setpoint;support TMR triple‑modular‑redundant configuration;support hot‑swap;must match rear I/O daughter‑board for normal operation

Module Form:Full‑height rack‑mount plug‑in front‑panel module

Weight:0.58 kg

Dimension:241 mm×24.4 mm×242 mm

Protection Grade:IP20

Certification:UL,CSA,CE

Working Temperature:‑30℃ ~ +65℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Steam turbine,gas turbine,compressor TSI protection system,realize shaft radial vibration,thrust position,differential expansion,eccentricity monitoring and hardware alarm protection output,system maintenance and spare‑part replacement.

Product Details

3500/40M 176449‑01 is four‑channel proximitor monitor front‑panel module for Bently Nevada 3500‑TSI machinery protection system,must be equipped with matched rear I/O sub‑board and cannot run independently.

It receives eddy‑current probe signal from supporting I/O sub‑board,configured by 3500 rack configuration software. Channels work in pair mode,channel 1‑2 as one group,channel3‑4 as another group,support same or different measurement functions. It supports alert and danger programmable alarm threshold,output machinery protection interlock signal.

Two optional I/O sub‑boards for selection:125680‑01 internal terminal;126646‑01 external terminal. Support TMR triple‑modular‑redundant architecture,front‑panel supports hot‑swap without rack power‑off. Widely used for shaft position and vibration monitoring loop of steam turbine,gas turbine and compressor.

Note:This is legacy EOL spare component,widely used for replacement of turbine and compressor TSI monitoring & protection systems.
