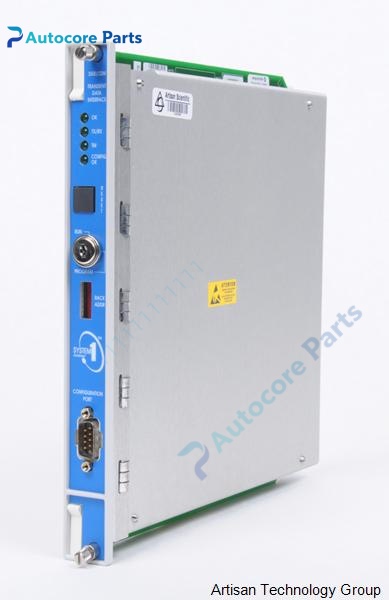

Bently Nevada 3500/22M Transient Data Interface TDI Module

Technical Specifications

Model：3500/22M

Brand：Bently Nevada

Product Type：Transient Data Interface (TDI) rack gateway module

Installation Slot：Fixed Slot 1,adjacent to rack power supply

Power Consumption：10.5W,powered by 3500 rack backplane

Front‑panel Interface：USB‑B port for local configuration

Rear‑side Communication：10/100Base‑TX RJ45 Ethernet,100Base‑FX MT‑RJ multimode fiber ethernet

Data Function：Collect steady‑state parameter data; optional license enables high‑resolution transient waveform & spectrum data acquisition

Supported Software：3500 Configuration Software,System‑1 predictive maintenance platform

Relay Output：System OK SPDT relay contact

Status Indicator：OK LED,COMM LED,TM LED,CONFIG LED

Reset Function：Front‑panel alarm reset push‑button

Module Form：Full‑height rack‑mount module

Weight：0.52kg

Dimension：241mm×24.4mm×256mm

Protection Grade：IP20

Certification：UL,CSA,CE

Working Temperature：‑30℃ ~ +65℃,non‑condensing

Storage Temperature：‑40℃ ~ +85℃

Humidity：5%‑95% non‑condensing

Application：Turbine,compressor,pump,fans rotating machinery monitoring,data gateway for 3500 TSI rack,system configuration and predictive maintenance data transmission,maintenance and spare‑part replacement。

Product Details

3500/22M is TDI transient data interface gateway for Bently Nevada 3500 machinery protection rack,every 3500 rack must be equipped with one TDI or RIM module and installed in slot‑1 next to power supply.

It undertakes rack configuration,status management and data gateway functions. Local USB‑B interface completes on‑site rack parameter configuration; rear‑panel copper‑wire Ethernet and MT‑RJ multimode fiber Ethernet realize data interaction with upper‑level System‑1 software. It collects steady‑state values of vibration,displacement,speed and other parameters; optional authorization license supports capturing high‑resolution transient waveform,spectrum and key‑phase dynamic data for equipment fault diagnosis.

Equipped with system OK relay contact for remote rack health status feedback,front‑panel physical button supports alarm reset. Note that TDI belongs to communication gateway unit and does not participate in machinery protection safety loop; protection function still runs normally even if TDI fails.

Note:This is legacy 3500 series spare component,widely used for replacement of turbine and compressor TSI monitoring systems.
