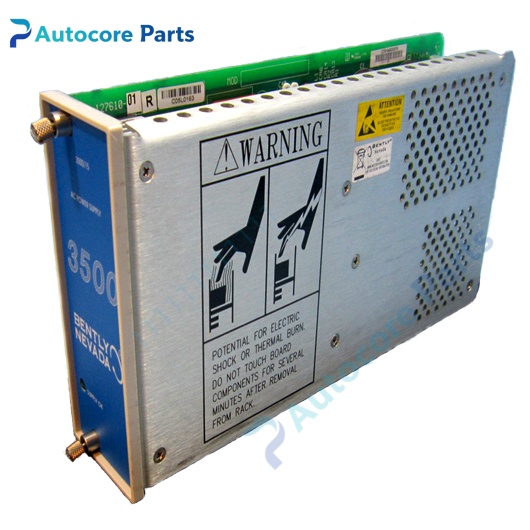

Bently Nevada 3500/15 Rack Power Supply Module

Technical Specifications

Model：3500/15

Brand：Bently Nevada（本特利）

Product Type：Rack power supply module

Input Options：

Low‑Voltage AC：85‑132VAC

High‑Voltage AC：175‑264VAC

Universal AC：85‑264VAC

High‑Voltage DC：88‑140VDC

Low‑Voltage DC：20‑30VDC

Rack Output：Stabilized internal rack bus power

Max Full‑Rack Current：Universal AC 2.8A rms；High‑Voltage DC 2.5A；Low‑Voltage DC 11.0A

Redundancy：Support single‑power or dual redundant power configuration,hot‑swappable

Protection：Over‑voltage,over‑current,short‑circuit,over‑temperature protection

Indicator：Front‑panel “Supply OK” status LED

Mounting：Install on dedicated left‑hand slots of 3500 rack

Weight：1.39kg

Dimension：120.7mm×50.8mm×251.5mm

Protection Grade：IP20

Certification：UL,CSA,ATEX/IECEx optional

Working Temperature：‑30℃ ~ +65℃,non‑condensing

Storage Temperature：‑40℃ ~ +85℃

Humidity：5%‑95% non‑condensing

Application：Turbine,compressor,pump,fans rotating machinery monitoring system,power supply for 3500 rack,maintenance and spare‑part replacement

Product Details

3500/15 is the dedicated power supply module for Bently Nevada 3500 machinery protection rack. It is half‑height module installed in the special slots on the left side of the rack. It provides stable bus power for all monitor modules inside the 3500 chassis.

It supports multiple AC and DC input options. The rack can adopt single‑power mode or dual redundant power configuration. Hot‑swap function allows replacing one power unit without shutting down the whole rack system. Built‑in over‑voltage,over‑current,short‑circuit and over‑temperature protection ensures reliable operation for rotating‑machinery protection system. Front‑panel Supply‑OK LED shows real‑time power operating status.

Note:This is legacy 3500 series spare component,widely used as replacement spare‑part for turbine and compressor TSI protection systems.
