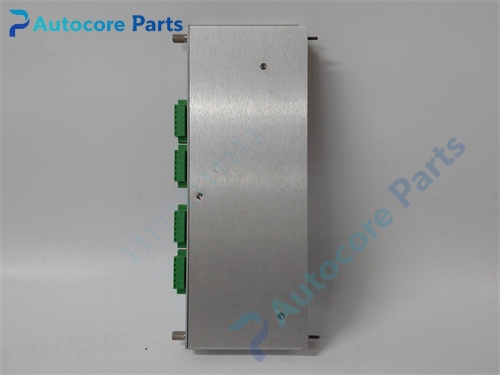

Bently Nevada 125720‑01 3500/32 4‑Channel Relay Output Module

Technical Specifications

Model：125720‑01

Brand：Bently Nevada（本特利）

Product Type：4‑channel relay output module（3500/32 spare part）

Channel Layout：4 SPDT relay outputs

Relay Contact：SPDT single‑pole double‑throw

Contact Rating：2A@30VDC,0.5A@125VAC resistive load

Logic Configuration：Each channel independent programmable AND / OR voting logic,latch & timer configurable

System Compatibility：Bently Nevada 3500 rack system

Module Form：Full‑height rack‑mount module

Weight：0.4kg

Dimension：241mm×24.4mm×99.1mm

Protection Grade：IP20

Working Temperature：‑30℃ ~ +65℃,non‑condensing

Storage Temperature：‑40℃ ~ +85℃

Humidity：5%‑95% non‑condensing

Application：Turbine,compressor,pump,fans rotating machinery monitoring,alarm signal output,3500 rack system maintenance and spare‑part replacement。

Product Details

125720‑01 is the spare part number for Bently Nevada 3500/32 4‑channel relay output module for 3500 machinery monitoring rack. It provides 4 SPDT relay outputs,each channel supports independent AND / OR voting logic,latch and timer configuration via 3500 rack configuration software.

It converts rack monitor alert / danger / OK status into hard‑wired relay alarm signals for external interlock,alarm lamp and safety interlock circuit. It is installed in any slot on the right side of rack interface module inside 3500 chassis. Not applicable for TMR triple redundant systems,3500/34 TMR relay module shall be adopted for TMR projects.

Note:This is legacy 3500 series spare component,widely used for replacement of turbine and compressor monitoring protection systems.
