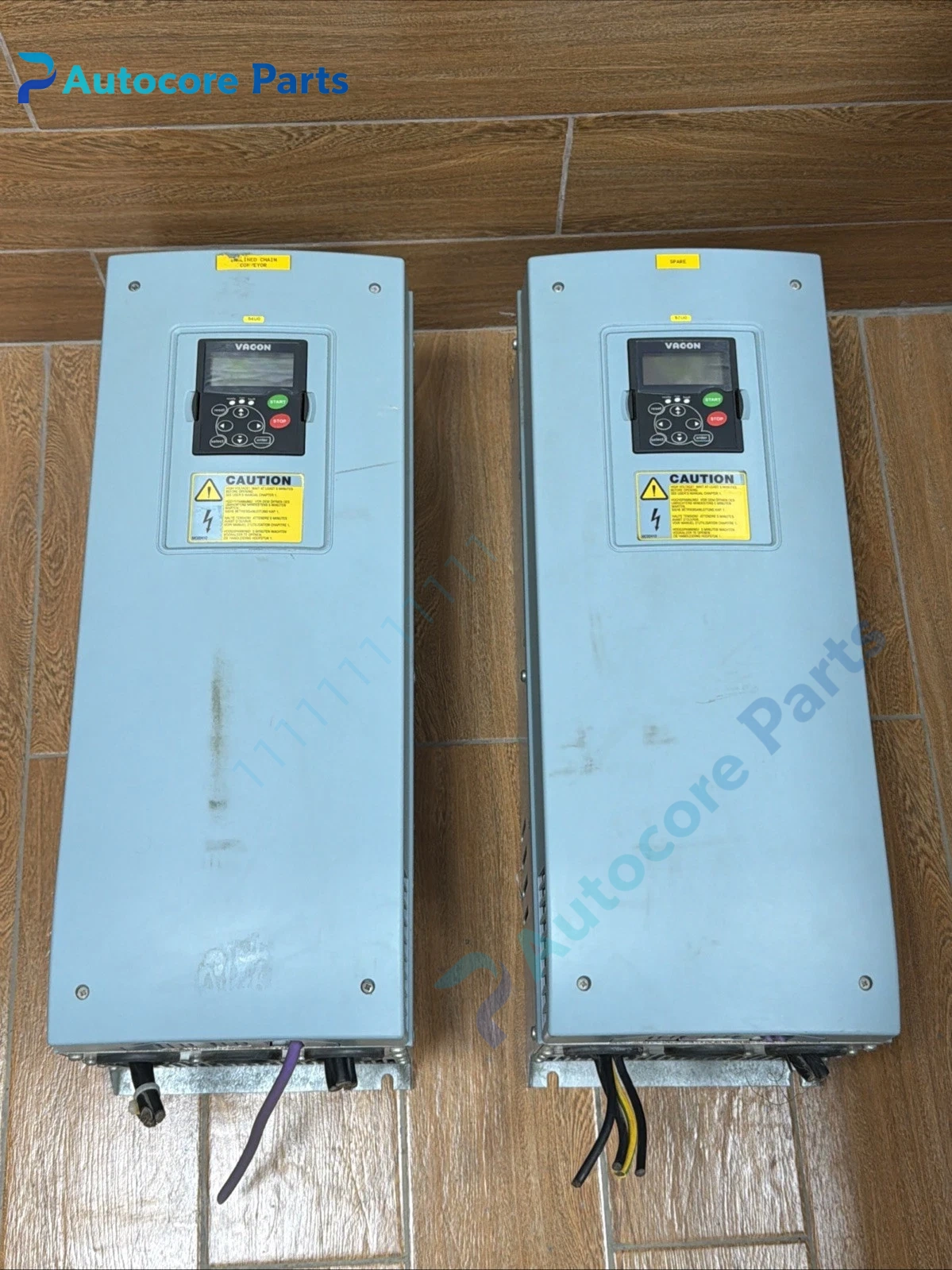

Danfoss Vacon NXS00725A2H0SSS00000000C3 Variable Frequency Drive Unit

Module Feature

NXS00725A2H0SSS00000000C3 is a wall-mount AC drive of Danfoss Vacon NXS series. It supports V/F and vector control modes, equipped with multiple standard application macros for quick commissioning. It provides expandable I/O card slots for fieldbus and signal extension. Integrated EMC filter, comprehensive motor protection functions including overload, phase loss, earth fault and stall protection. Suitable for continuous heavy-load industrial applications. Widely stocked as spare for water treatment, HVAC, mining and packaging machine control cabinets.

Working principle

Three-phase AC input is rectified into DC bus voltage, then IGBT inverter module outputs adjustable frequency and voltage for induction motor driving. The main control board continuously samples output current, voltage and motor operating status. It adjusts PWM pulse sequence to stabilize motor speed and torque. Built-in thermal monitoring and fault protection logic trigger alarm or trip when abnormal conditions are detected. Regenerative energy can be handled with optional brake chopper and resistor.

Onboard components

Input rectifier unit, IGBT power module, main control PCB, voltage and current sampling circuit, cooling fan, front control keypad, EMC filter and metal chassis.

LED indicators

Front LEDs indicate power, run, fault and communication status.

Hardware self‑diagnosis

Drive monitors heat sink temperature, DC bus voltage, output current and internal circuit health. All speed ramp, protection and I/O mapping parameters can be set via local keypad.

Programming software

Vacon NCDrive, used for parameter configuration, macro selection, fault log review and firmware update.

Electrical & Process Parameters

Model: NXS00725A2H0SSS00000000C3 Brand: Danfoss Vacon Device type: NXS variable frequency drive Rated current: 72 A Input voltage: 380 ~ 500 VAC 3-phase Function: Induction motor speed regulation, torque control and multi-purpose process control

Mechanical & Structure

Mounting: Wall mounting inside control room Protection class: IP21 Housing: Metal sheet enclosure with cooling fan

Environmental

Operating temperature: -10℃ ~ +45℃ Storage temperature: -40℃ ~ +85℃ Ambient humidity: 5~95% non‑condensing

Certification: CE, UL Status: Original Danfoss Vacon automation spare

Installation

Cut off three-phase main power before replacement. Secure drive on mounting plate, connect power input, motor output cables and control wiring, configure motor nameplate parameters and application macro, test speed regulation and protection trip function after commissioning.

Interface

3-phase power terminals, motor output terminals, analog/digital I/O terminals, fieldbus expansion slot, keypad connector.

Diagnostic

Overcurrent fault: Motor short circuit, cable insulation damage or acceleration ramp too short. Overheat alarm: Fan failure, dust accumulation or poor cabinet ventilation. Motor stall trip: Mechanical blockage or torque limit value too low.

Product Brief

NXS00725A2H0SSS00000000C3 inverter, Danfoss Vacon NXS 72A heavy-duty VFD spare for pump, fan and conveyor variable speed control replacement.
