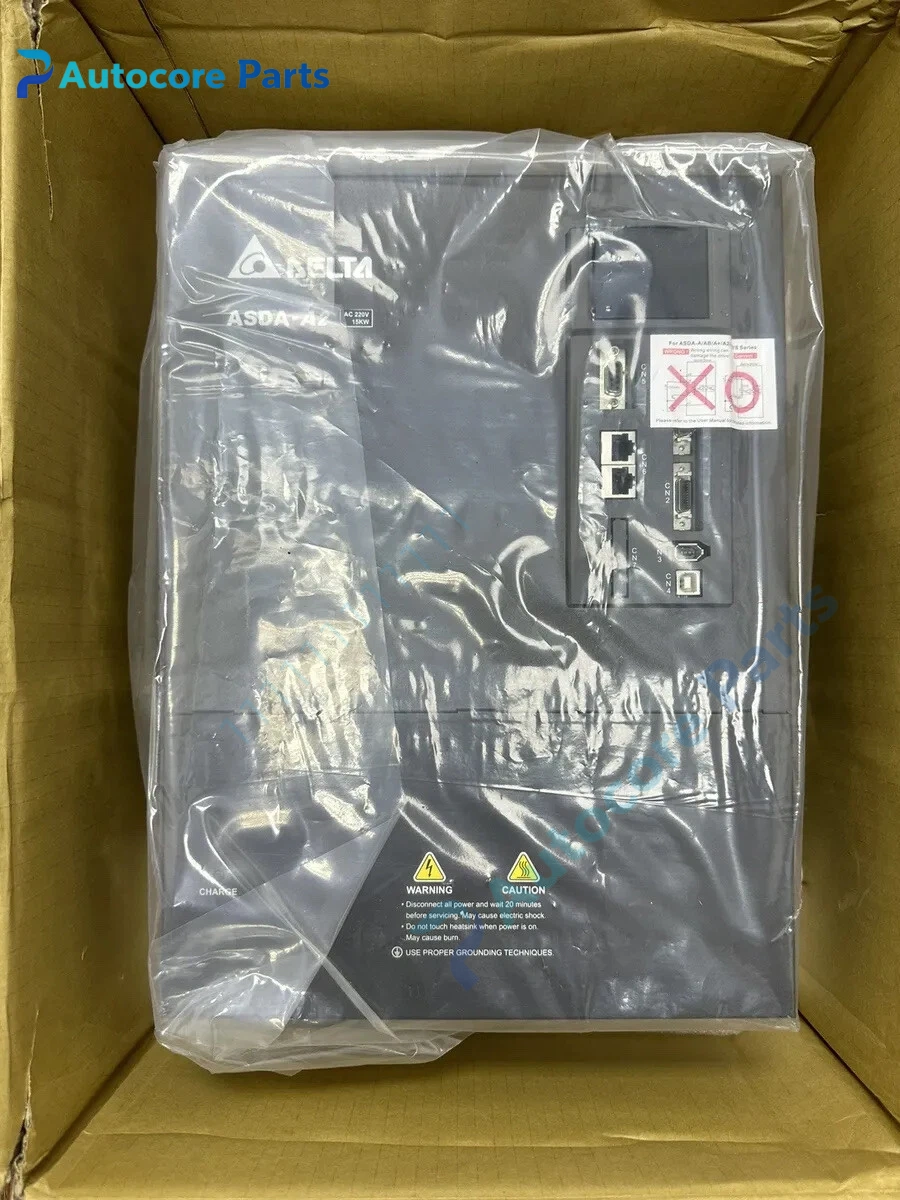

Delta ASD-A2-1F23-F ASDA-A2 DMCNET Servo Drive Unit

Module Feature

ASD-A2-1F23-F is Delta ASDA-A2 series high dynamic servo drive with DMCNET communication interface, rated 15kW, three-phase 220VAC input.

It supports PR internal position command, pulse command, analog speed/torque control, full closed-loop feedback function. Built-in E-CAM electronic cam with up to 720 cam points, dedicated for flying shear and rotary cut applications. Auto notch filter and vibration suppression algorithm reduce mechanical resonance. Gantry synchronous control, high-speed capture and compare function are integrated. 1kHz speed response bandwidth, matched with 20-bit high-resolution absolute/incremental encoder. DMCNET high-speed bus realizes multi-axis synchronous linkage. Fan cooling, DIN rail cabinet installation. Widely stocked spare for printing, packaging, film cutting and CNC machine tool motion cabinet.

Working principle

Three-phase AC power is rectified to DC bus, DSP core outputs PWM pulse to IGBT power stage to drive servo motor.

Position loop, speed loop and torque loop run independently. It reads encoder feedback signal for closed-loop regulation; full closed-loop mode can receive external linear scale signal. DMCNET bus receives synchronous command from upper controller. Continuous self-monitoring captures overcurrent, overvoltage, overtemperature, encoder disconnection and bus communication fault, locks fault code and stops output safely.

Onboard components

IGBT power module, DC bus capacitor bank, Hall current sensor, DSP control core, DMCNET communication chip, encoder differential receiving circuit, vibration suppression processing unit, cooling fan, status LED bank and metal chassis.

LED indicators

Front panel LEDs indicate power, servo ready, running, alarm fault status; digital keypad displays operating parameters and fault codes.

Hardware self‑diagnosis

Built-in supervision detects overcurrent, DC bus over/under voltage, heatsink overtemperature, encoder signal loss, DMCNET communication timeout and hardware anomaly. Configuration and fault diagnosis are completed by Delta ASDA-Soft software.

Programming softwareASDA-Soft, used for motor auto-tune, cam curve editing, filter setting, DMCNET axis mapping and fault history reading.

Electrical & Process Parameters

Model:ASD-A2-1F23-F Brand:Delta Device type:ASDA-A2 DMCNET servo drive Function:High precision speed, torque, position and electronic cam control for 15kW AC servo motor

Mechanical & Structure

Mounting:DIN rail cabinet mounting Protection class:IP20 Housing:Metal air-cooled servo drive chassis

Environmental

Operating temperature:0℃ ~ +45℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, UL, CCC Status:Original Delta ASDA-A2 servo spare

Installation

Cut off three-phase power and fully discharge DC bus capacitors before replacement.

Match correct ECMA servo motor model, check encoder shield wiring, set DMCNET node address, auto tune motor parameters, test electronic cam and synchronous motion function after commissioning.

Interface

Three-phase 220VAC power terminal, servo motor power output terminal, differential encoder port, DMCNET bus port, digital I/O terminal, analog signal terminal, keypad connector.

Diagnostic

ALM overcurrent: Motor cable short, IGBT breakdown, gain setting too high. Encoder fault: Cable break, wiring reversed or encoder damaged. Vibration alarm: Resonance without notch filter, mechanical looseness. DMCNET communication fail: Bus terminal missing, node address conflict or cable damage.

Product Brief

ASD-A2-1F23-F servo drive, Delta ASDA-A2 15kW 220V DMCNET bus servo amplifier spare for flying shear, rotary cut and high-speed packaging motion control cabinet replacement.
